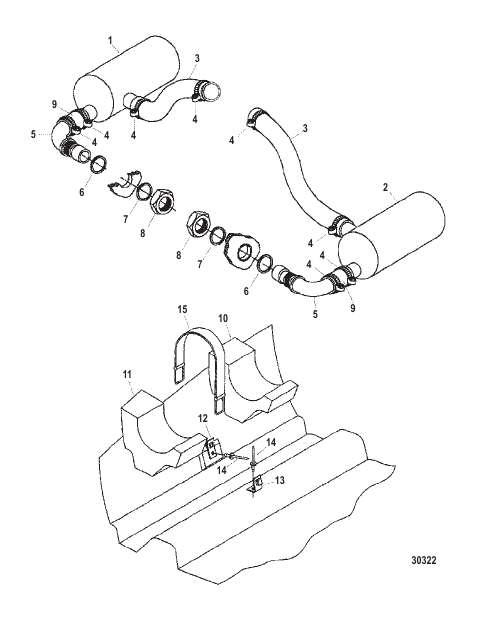

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
878147A1 |
MUFFLER ASSEMBLY Port
|
1 |
superseded
|
| 10 |
NSS |
NOT SOLD SEPARATE Support - Muffler - Front - Left Hand
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE Support - Muffler - Front - Right Hand
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Support - Muffler - Rear - Left Hand
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Support - Muffler - Rear - Right Hand
|
1 |
|
| 12 |
NSS |
NOT SOLD SEPARATE Clip - Strap
|
2 |
|
| 13 |
NSS |
NOT SOLD SEPARATE Clip - Strap
|
2 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Rivet
|
8 |
|
| 15 |
NSS |
NOT SOLD SEPARATE Strap
|
2 |
|
| 2 |
878148A1 |
MUFFLER ASSEMBLY Starboard
|
1 |
superseded
|
| 3 |
NSS |
NOT SOLD SEPARATE Hose - Exhaust
|
2 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Clamp
|
8 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Outlet Assembly - Exhaust
|
2 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Gasket
|
2 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Washer - Stabilizing
|
2 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Nut (72 mm)
|
2 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Hose - Molded - Port Exhaust
|
2 |
|
