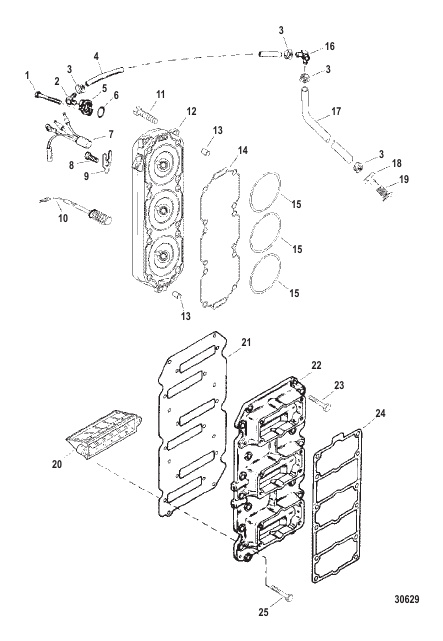

| # | Part Number | Description | Qty | Status |
|---|
| - |
804986A1 |
GASKET/SEAL SET Powerhead
|
1 |
|
| - |
858257T18 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
40011149 |
SCREW (M8 x 25) Stainless Steel
|
4 |
|
| 10 |
974651 |
SENDER Temperature - Starboard
|
1 |
|
| 11 |
878217 |
SCREW (.375-16 x 2.750)
|
24 |
superseded
|
| 12 |
858281T3 |
CYLINDER HEAD
|
2 |
superseded
|
| 13 |
63779 |
PIN Dowel (.250 x .625)
|
4 |
|
| 14 |
8584521 |
SEAL Cylinder Head
|
2 |
superseded
|
| 15 |
8597721 |
SEAL Cylinder Bore
|
6 |
|
| 16 |
68728 |
FITTING
|
1 |
disc.
|
| 17 |
NSS |
NOT SOLD SEPARATE Hose - To Thru Hull Fitting
|
1 |
|
| 18 |
856981 |
NUT (.562-18)
|
1 |
|
| 19 |
856867 |
FITTING
|
1 |
|
| 2 |
687271 |
FITTING (.250-18) 90 Degree - Brass
|
1 |
|
| 20 |
840425T1 |
REED BLOCK ASSEMBLY Five Petal Style
|
6 |
superseded
|
| 21 |
881034 |
GASKET Adaptor Plate
|
1 |
superseded
|
| 22 |
12124A3 |
PLATE ASSEMBLY Adaptor
|
1 |
disc.
|
| 23 |
28668 |
SCREW (.250-20 x .875) Stainless Steel
|
8 |
|
| 24 |
167371 |
GASKET Adaptor Plate
|
1 |
|
| 25 |
28668 |
SCREW (.250-20 x .875) Stainless Steel
|
12 |
|
| 3 |
F698772 |
CLAMP Worm Gear
|
4 |
|
| 4 |
77653101 |
HOSE (48.00 Inches Bulk) Cut 12.750 Inches
|
1 |
|
| 5 |
90390A1 |
COVER KIT Thermostat
|
2 |
|
| 6 |
35126 |
O-RING (.859 x .139)
|
2 |
|
| 7 |
13536A14 |
SENSOR ASSEMBLY Temperature Port
|
1 |
|
| 8 |
81893414 |
SCREW (M8 x 14)
|
2 |
|
| 9 |
137151 |
RETAINER Sensor
|
2 |
|
| NS |
56759 |
FITTING Barbed - NOTE: Also Reference Bleed System Section
|
2 |
|
| NS |
426981 |
CHECK VALVE - NOTE: Also Reference Bleed System Section
|
1 |
superseded
|
