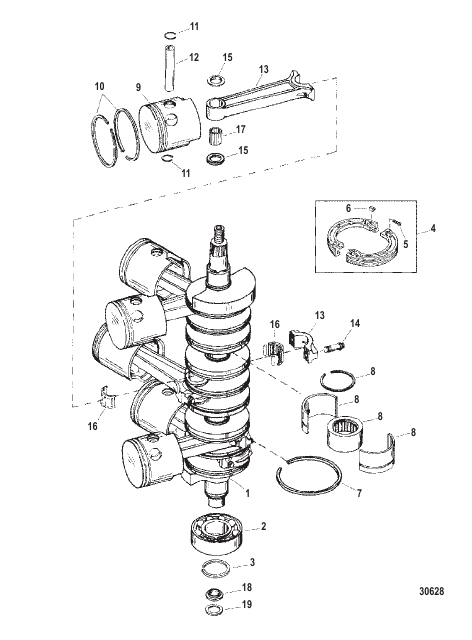

| # | Part Number | Description | Qty | Status |
|---|
| - |
858257T18 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
834980T3 |
CRANKSHAFT ASSEMBLY
|
1 |
|
| 10 |
848202A12 |
RING SET 12 Rings
|
1 |
|
| 11 |
52035 |
RING Lock
|
12 |
superseded
|
| 12 |
NSS |
NOT SOLD SEPARATE Pin - Piston
|
6 |
|
| 13 |
818141A2 |
CONNECTING ROD KIT
|
6 |
superseded
|
| 14 |
763491 |
SCREW (.312-24 x .875) Connecting Rod
|
12 |
|
| 15 |
812876 |
WASHER Needle Locating
|
12 |
superseded
|
| 16 |
17514A2 |
BEARING KIT Roller - Two Per Kit
|
6 |
superseded
|
| 17 |
822553 |
BEARING Needle Piston End
|
174 |
superseded
|
| 18 |
54196A6 |
CARRIER ASSEMBLY
|
1 |
|
| 19 |
65800 |
PACKING Carrier
|
1 |
|
| 2 |
67923T |
BEARING Ball Lower
|
1 |
|
| 3 |
67446 |
RING Retaining
|
1 |
|
| 4 |
14513A2 |
GEAR SEGMENT KIT Drive - Design I
|
2 |
superseded
|
| 4 |
14513A09 |
GEAR SEGMENT KIT Drive - Design II
|
2 |
|
| 5 |
813073 |
SCREW (#6-32 x .620) Socket Head - Design I
|
2 |
disc.
|
| 5 |
854812 |
SCREW (#6-32 x .630) Socket Button Head - Design II
|
2 |
|
| 6 |
813134 |
NUT (#6-32) Special - Design I
|
2 |
disc.
|
| 6 |
854811 |
NUT Special (#6-32) - Design II
|
2 |
|
| 7 |
67377 |
RING Sealing Crankshaft
|
7 |
superseded
|
| 8 |
16756A6 |
BEARING KIT Crankshaft - Center Main
|
2 |
|
| 9 |
854687T2 |
PISTON ASSEMBLY - Starboard - For Powerhead 858257T18
|
3 |
superseded
|
| 9 |
854687A11 |
PISTON KIT - Starboard - For Powerhead 858257T21 Or 858257T24
|
3 |
disc.
|
| 9 |
854686T2 |
PISTON ASSEMBLY - Port - For Powerhead 858257T18
|
3 |
superseded
|
| 9 |
854686A11 |
PISTON KIT - Port - For Powerhead 858257T21 Or 858257T24
|
3 |
disc.
|
