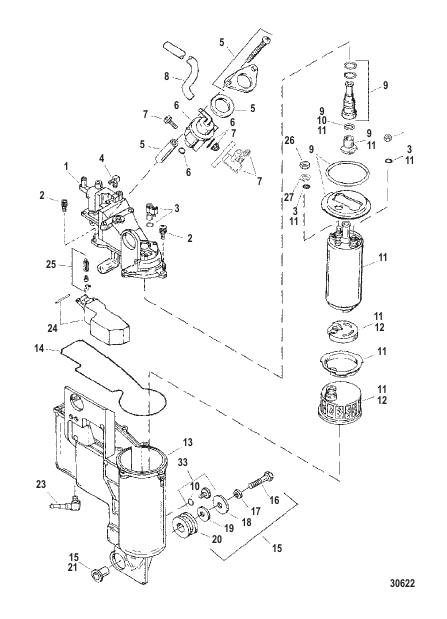

| # | Part Number | Description | Qty | Status |
|---|
| - |
14817A34 |
MANAGEMENT ASSEMBLY Fuel - NOTE: See Fuel Management System Section For Additional Parts Breakdown
|
1 |
disc.
|
| 1 |
879639 |
COVER Vapor Separator
|
1 |
disc.
|
| 10 |
15029 |
O-RING AND SEAL KIT
|
1 |
disc.
|
| 11 |
809088T1 |
PUMP KIT Fuel Fuel
|
1 |
disc.
|
| 12 |
808504T1 |
STRAINER KIT Fuel
|
1 |
disc.
|
| 13 |
8140111 |
BODY KIT Vapor Separator
|
1 |
disc.
|
| 14 |
809086 |
O-RING
|
1 |
|
| 15 |
879645A1 |
SCREW KIT Mounting
|
1 |
disc.
|
| 16 |
879644 |
SCREW (M6 x 30)
|
3 |
disc.
|
| 17 |
809080 |
LOCKWASHER
|
3 |
superseded
|
| 18 |
8090621 |
WASHER
|
3 |
|
| 19 |
8090622 |
WASHER
|
3 |
disc.
|
| 2 |
8140762 |
SCREW KIT Vapor Separator
|
1 |
disc.
|
| 20 |
809079 |
GROMMET
|
3 |
superseded
|
| 21 |
809078 |
COLLAR
|
1 |
disc.
|
| 22 |
809091 |
SCREW KIT Drain
|
1 |
disc.
|
| 23 |
424811 |
VALVE Check
|
1 |
|
| 24 |
15445 |
FLOAT KIT
|
1 |
disc.
|
| 25 |
15446 |
VALVE KIT Float
|
1 |
|
| 26 |
8237515 |
NUT (M4)
|
1 |
|
| 27 |
26995 |
LOCKWASHER (#8) Stainless Steel
|
1 |
|
| 28 |
400211 |
NUT (M5) Stainless Steel
|
1 |
|
| 3 |
8090901 |
CONNECTION KIT Electrical
|
1 |
|
| 4 |
879649A1 |
ELBOW KIT
|
1 |
disc.
|
| 5 |
809087 |
ATTACHING KIT
|
1 |
disc.
|
| 6 |
879638A1 |
REGULATOR KIT Pressure
|
1 |
|
| 7 |
879643A1 |
VALVE KIT Schrader
|
1 |
disc.
|
| 8 |
879646A1 |
TUBING KIT
|
1 |
disc.
|
| 9 |
879648A1 |
FITTING KIT Fuel Pump
|
1 |
|
