| # | Part Number | Description | Qty | Status |
|---|
| - |
14817A34 |

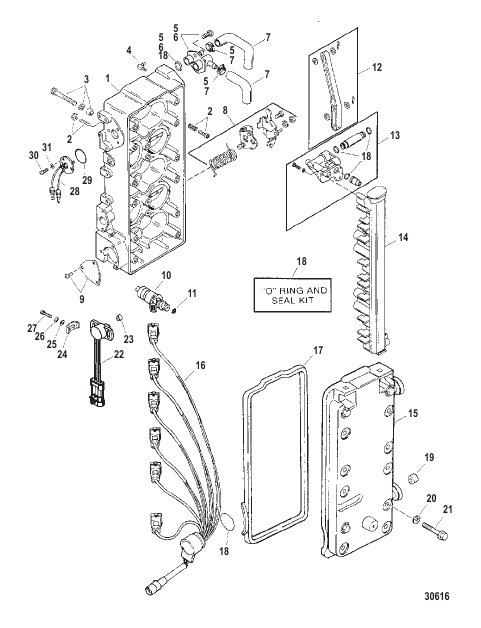

MANAGEMENT ASSEMBLY Fuel - NOTE: See Fuel Management Components Section For Additional Parts Breakdown
|
1 |
disc.
|
| 1 |
879640 |
BODY Throttle
|
1 |
disc.
|
| 10 |
18715T |
INJECTOR ASSEMBLY Fuel
|
6 |
|
| 11 |
17422 |
FILTER Fuel Injector
|
1 |
|
| 12 |
8276891 |
LINK KIT
|
1 |
disc.
|
| 13 |
8090572 |
JOINT KIT Fuel Pipe
|
1 |
disc.
|
| 14 |
827699T2 |
FUEL RAIL
|
1 |
disc.
|
| 15 |
8276922 |
COVER
|
1 |
disc.
|
| 16 |
15443 |
HARNESS KIT
|
1 |
disc.
|
| 17 |
18792 |
SEAL
|
1 |
|
| 18 |
15029 |
O-RING AND SEAL KIT
|
1 |
disc.
|
| 19 |
67748 |
ROLLER
|
1 |
|
| 2 |
827698 |
SCREW KIT Stop
|
1 |
disc.
|
| 20 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
12 |
superseded
|
| 21 |
845674 |
SCREW (.250-20 x 4.00)
|
12 |
|
| 22 |
148512 |
INDICATOR Throttle Position
|
1 |
superseded
|
| 23 |
15885 |
SLEEVE
|
1 |
|
| 24 |
813501 |
PLATE
|
2 |
disc.
|
| 25 |
30164 |
WASHER (.192 x .375 x .0312) Stainless Steel
|
2 |
|
| 26 |
26995 |
LOCKWASHER (#8) Stainless Steel
|
2 |
|
| 27 |
15150 |
SCREW (#8-32 x .625)
|
2 |
disc.
|
| 28 |
13221A1 |
SENSOR ASSEMBLY Temperature
|
1 |
superseded
|
| 29 |
45711 |
O-RING (.612 x .103)
|
1 |
|
| 3 |
8276981 |
SCREW KIT Fuel Rail
|
1 |
disc.
|
| 30 |
57583 |
SCREW (#8-32 x .375)
|
3 |
superseded
|
| 31 |
26995 |
LOCKWASHER (#8) Stainless Steel
|
3 |
|
| 4 |
879649A1 |
ELBOW KIT
|
1 |
disc.
|
| 5 |
879643A1 |
VALVE KIT Schrader
|
1 |
disc.
|
| 6 |
879642A1 |
JOINT KIT FMA
|
1 |
disc.
|
| 7 |
879647A1 |
HOSE KIT Fuel
|
1 |
disc.
|
| 8 |
879641A1 |
LEVER KIT Link
|
1 |
|
| 9 |
827696 |
RETAINER KIT
|
1 |
disc.
|
