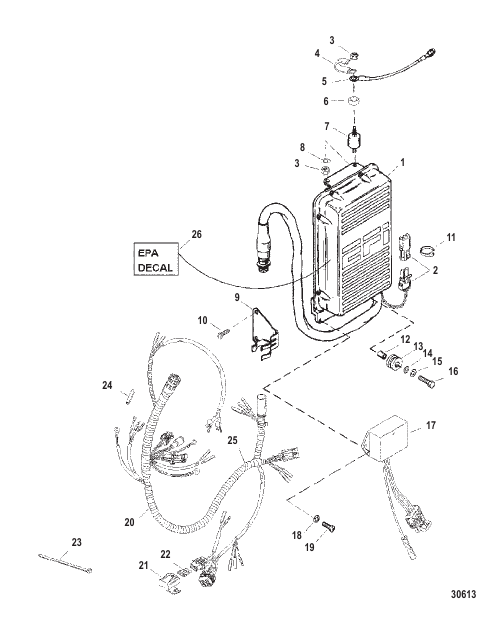

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
824003A31 |
ECU Engine Control Unit
|
1 |
superseded
|
| 10 |
822156 |
SCREW (.250-20 x .500)
|
2 |
disc.
|
| 11 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 12 |
14636 |
BUSHING
|
1 |
disc.
|
| 13 |
14637 |
GROMMET
|
1 |
|
| 14 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
1 |
|
| 15 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
1 |
|
| 16 |
28667 |
SCREW (.250-20 x 1.00) Stainless Steel
|
1 |
|
| 17 |
13202A5 |
MODULE ASSEMBLY Water Sensor
|
1 |
disc.
|
| 18 |
89302 |
WASHER (.203 x .406 x .040)
|
2 |
|
| 19 |
37571 |
SCREW (.190-32 x .500)
|
2 |
disc.
|
| 2 |
832948A1 |
CONNECTOR ASSEMBLY 2 POS Male
|
1 |
|
| 20 |
877614A2 |
HARNESS ASSEMBLY Engine
|
1 |
|
| 21 |
828054 |
COVER Fuse
|
1 |
|
| 22 |
852526 |
FUSE Mini - Violet - 3 Ampere
|
1 |
|
| 23 |
56762 |
TIE STRAP (4.00 Inches)
|
AR |
|
| 24 |
13540 |
CAP Female
|
1 |
|
| 25 |
828547253 |
CONDUIT (.250 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 25 |
828547T1 |
CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 25 |
828547633 |
CONDUIT (.620 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 25 |
828547753 |
CONDUIT (.750 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 26 |
878372A01 |
DECAL EPA Label Information
|
1 |
disc.
|
| 3 |
8267089 |
NUT (.250-28)
|
4 |
|
| 4 |
65292 |
J CLIP
|
2 |
superseded
|
| 5 |
88807A19 |
CABLE ASSEMBLY
|
1 |
|
| 6 |
34948 |
SPACER
|
2 |
|
| 7 |
90435 |
MOUNT
|
2 |
|
| 8 |
21249 |
WASHER
|
2 |
|
| 9 |
146951 |
CLIP
|
1 |
disc.
|
