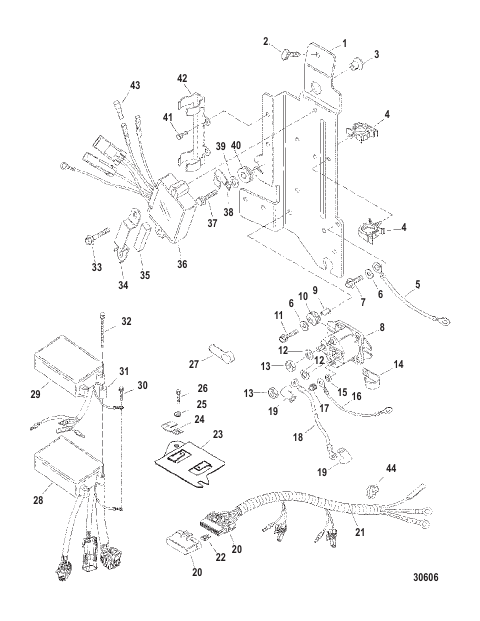

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8571641 |
PLATE Solenoid Mounting
|
1 |
disc.
|
| 10 |
822179 |
GROMMET
|
2 |
|
| 11 |
82129125 |
SCREW (M6 x 25 MM)
|
2 |
|
| 12 |
26993 |
LOCKWASHER (.312)
|
2 |
superseded
|
| 13 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 14 |
55098 |
J CLIP
|
1 |
superseded
|
| 15 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 16 |
88807A16 |
CABLE ASSEMBLY (4.00 Inches) Black
|
1 |
|
| 17 |
813938 |
CAP NUT (#10-32) Cap
|
2 |
|
| 18 |
93388A15 |
CABLE ASSEMBLY Starter (8.50 Inches)
|
1 |
disc.
|
| 19 |
878569 |
BOOT Insulator - Yellow
|
2 |
disc.
|
| 2 |
828991 |
CLIP
|
1 |
superseded
|
| 20 |
858425T2 |
HARNESS ASSEMBLY
|
1 |
|
| 21 |
828547T1 |
CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 22 |
83296920 |
FUSE Mini - Yellow - 20 Ampere Accessories And Starting Circuit
|
1 |
superseded
|
| 22 |
83296930 |
FUSE Mini - Green - 30 Ampere Voltage Regulators
|
2 |
|
| 23 |
857167 |
BRACKET Wire Harness Terminal Support
|
1 |
disc.
|
| 24 |
97224 |
J CLIP Hose Support
|
1 |
|
| 25 |
68229 |
WASHER (.641 x 1.250 x .190)
|
1 |
superseded
|
| 26 |
89766 |
SCREW (#10-32 x .620) Stainless Steel
|
1 |
|
| 27 |
830233 |
BOOT Insulator - Red
|
1 |
|
| 28 |
857169T2 |
CONTROLLER Ignition
|
1 |
|
| 29 |
821889A55 |
REV LIMITER ASSEMBLY Stamped 821889A54
|
1 |
disc.
|
| 3 |
8502341 |
BUSHING
|
3 |
|
| 30 |
69079 |
SCREW (#10-16 x .440) Ground - Powerhead
|
1 |
|
| 31 |
823806 |
BUSHING
|
3 |
|
| 32 |
90048 |
SCREW (#10-32 x 2.125)
|
3 |
disc.
|
| 33 |
82129135 |
SCREW (M6 x 35)
|
4 |
|
| 34 |
858413 |
BRACKET
|
2 |
superseded
|
| 35 |
8308971 |
FOAM PAD
|
2 |
|
| 36 |
883072T1 |
REGULATOR Voltage Voltage - Stamped 883072-1
|
2 |
superseded
|
| 37 |
60411 |
SCREW (.312-18 x 1.250)
|
3 |
|
| 38 |
97224 |
J CLIP Hose Support
|
1 |
|
| 39 |
49436 |
WASHER
|
3 |
|
| 4 |
828791 |
CLIP
|
2 |
|
| 40 |
833155 |
GROMMET
|
3 |
|
| 41 |
82239312 |
SCREW (M5 x 12)
|
2 |
|
| 42 |
8261151 |
CLAMP Connector
|
1 |
|
| 43 |
13541 |
PLUG Male Gray Lead - Top Voltage Regulator
|
1 |
|
| 44 |
816311T |
TIE STRAP (8.00 Inches)
|
4 |
|
| 5 |
856583A3 |
CABLE ASSEMBLY
|
1 |
|
| 6 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 7 |
82129114 |
SCREW (M6 x 14)
|
1 |
|
| 8 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals) Starter
|
1 |
|
| 9 |
818968 |
BUSHING
|
2 |
superseded
|
