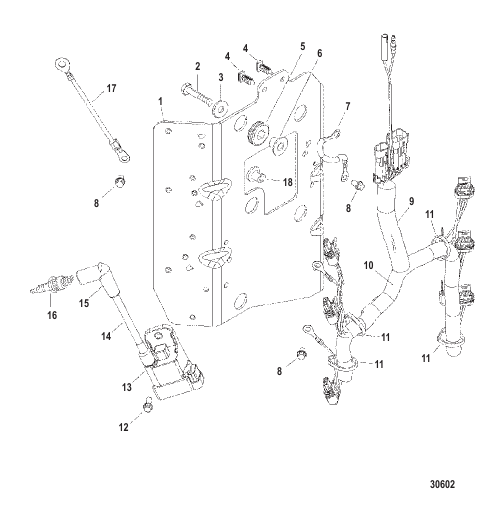

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
878310T |
PLATE CDM Mounting
|
1 |
disc.
|
| 10 |
828547353 |
CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 10 |
828547T1 |
CONDUIT (.500 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 10 |
828547633 |
CONDUIT (.620 Inside Diameter x 3.00 Feet Bulk) Cut As Required
|
AR |
|
| 11 |
816311T |
TIE STRAP (8.00 Inches)
|
4 |
|
| 12 |
82129116 |
SCREW (M6 x 16)
|
12 |
|
| 13 |
827509T7 |
CDM MODULE ASSEMBLY Ignition
|
6 |
disc.
|
| 14 |
857124A1 |
CABLE ASSEMBLY Hi-Tension Cut As Required
|
6 |
|
| 15 |
857074A1 |
BOOT/TERMINAL KIT Ignition Cable
|
6 |
|
| 16 |
14814548 |
SPARK PLUG (NGK # BPZ8HS-10)
|
6 |
superseded
|
| 17 |
856583A3 |
CABLE ASSEMBLY
|
2 |
|
| 18 |
8502341 |
BUSHING
|
1 |
|
| 2 |
840202 |
SCREW (.312-18 x 1.500)
|
4 |
|
| 3 |
49436 |
WASHER
|
4 |
|
| 4 |
828991 |
CLIP Wire Harness
|
2 |
superseded
|
| 5 |
833155 |
GROMMET
|
4 |
|
| 6 |
8502341 |
BUSHING
|
4 |
|
| 7 |
858414A1 |
CABLE ASSEMBLY Braided
|
1 |
|
| 8 |
82129110 |
SCREW (M6 x 10)
|
7 |
|
| 9 |
877534A2 |
HARNESS ASSEMBLY Ignition
|
1 |
|
