| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0135685 |

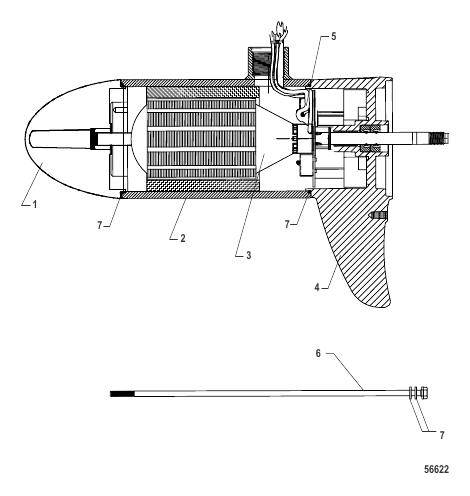

LOWER UNIT ASSEMBLY 105#, Salt Water, 84" Cable
|
1 |
|
| 1 |
8M0135687 |
NOSE CONE ASSEMBLY Sonar, With Screws,84" Cable
|
1 |
|
| 2 |
8M0095499 |
HOUSING ASSEMBLY With Magnets
|
1 |
disc.
|
| 3 |
8M4002655 |
ARMATURE KIT With Nylatron Washer
|
1 |
|
| 4 |
8M4002680 |
COMM CAP ASSEMBLY With Seals and Bushing
|
1 |
superseded
|
| 5 |
8M0135686 |
BRUSH CARD KIT With Springs and Screws,84" Cable
|
1 |
|
| 6 |
MR218185 |
THRU BOLT ASSEMBLY
|
1 |
superseded
|
| 7 |
8M4002715 |
SEAL KIT Mag Housing and Thru Bolt
|
1 |
|
