| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0135683 |

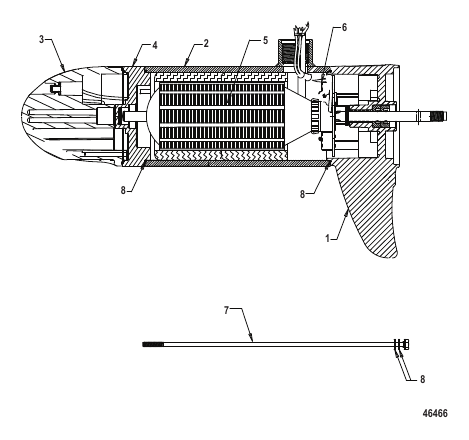

LOWER UNIT ASSEMBLY 80#, Fresh Water, Sonar, 84" Cable
|
1 |
|
| 1 |
8M4002677 |
COMM CAP ASSEMBLY With Seals and Bushing
|
1 |
|
| 2 |
8M4002665 |
HOUSING ASSEMBLY With Magnet and Wire Retainer
|
1 |
|
| 3 |
8M0135687 |
NOSE CONE ASSEMBLY Sonar, With Screws,84" Cable
|
1 |
|
| 4 |
8M4002708 |
SPACER ASSEMBLY With Screws, Washers and Bearing
|
1 |
|
| 5 |
8M4002654 |
ARMATURE KIT With Nylatron Washer
|
1 |
|
| 6 |
8M0135686 |
BRUSH CARD KIT With Springs and Screws,84" Cable
|
1 |
|
| 7 |
MR218115 |
THRU BOLT ASSEMBLY
|
1 |
superseded
|
| 8 |
8M4002715 |
SEAL KIT Mag Housing and Thru Bolt
|
1 |
|
