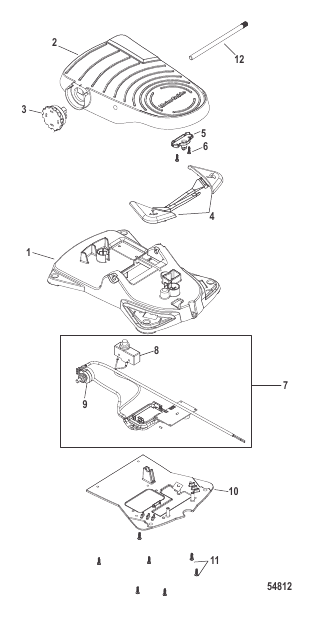

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0092069 |
FOOT PEDAL Wireless
|
1 |
|
| 1 |
NSS |
NOT SOLD SEPARATE BASE
|
1 |
|
| 10 |
8M0084875 |
BOTTOM COVER
|
1 |
disc.
|
| 11 |
NSS |
NOT SOLD SEPARATE SCREW
|
7 |
|
| 12 |
NSS |
NOT SOLD SEPARATE PIN
|
1 |
|
| 13 |
8M0126637 |
SPRING KIT
|
1 |
disc.
|
| 2 |
8M0084873 |
PEDAL TREAD
|
1 |
disc.
|
| 3 |
8M0084872 |
BUTTON AND KNOB KIT,
|
1 |
disc.
|
| 4 |
NSS |
NOT SOLD SEPARATE BUTTON
|
1 |
|
| 5 |
8M0084874 |
BEZEL KIT
|
1 |
disc.
|
| 6 |
NSS |
NOT SOLD SEPARATE SCREW
|
2 |
|
| 7 |
8M0084871 |
HARNESS ASSEMBLY
|
1 |
|
| 8 |
MAP15104T |
SWITCH ASSEMBLY Micro
|
1 |
|
| 9 |
MAP16803T |
POTENTIOMETER ASSEMBLY
|
1 |
|
