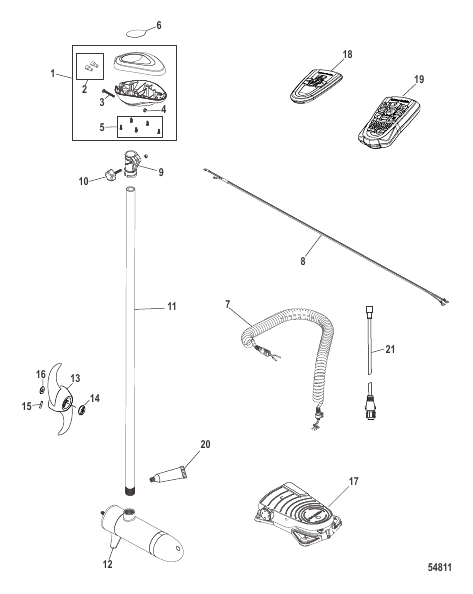

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0136152 |
REMOTE CONTROL COVER KIT With Key Pad GPS FOB ONLY
|
1 |
|
| 1 |
8M0084847 |
HEAD ASSEMBLY Black
|
1 |
|
| 1 |
8M0084846 |
HEAD ASSEMBLY White
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE KNOB
|
1 |
|
| 11 |
8M0086317 |
COLUMN (45 Inches) Black
|
1 |
|
| 11 |
8M0086302 |
COLUMN (48 Inches) Black
|
1 |
|
| 11 |
8M0086301 |
COLUMN (54 Inches) Black
|
1 |
|
| 11 |
8M0086303 |
COLUMN (60 Inches) Black
|
1 |
|
| 11 |
8M0135680 |
COLUMN (72 Inches) Black
|
1 |
|
| 11 |
8M0086306 |
COLUMN (48 Inches) White
|
1 |
|
| 11 |
8M0086305 |
COLUMN (54 Inches) White
|
1 |
|
| 11 |
8M0086304 |
COLUMN (60 Inches) White
|
1 |
|
| 11 |
8M0135681 |
COLUMN (72 Inches) White
|
1 |
|
| 12 |
8M0096748 |
LOWER UNIT ASSEMBLY 55#, Salt Water
|
1 |
superseded
|
| 12 |
8M0096746 |
LOWER UNIT ASSEMBLY 55#, Fresh Water
|
1 |
|
| 12 |
8M0096747 |
LOWER UNIT ASSEMBLY 55#, Fresh Water, Sonar
|
1 |
|
| 12 |
8M0096757 |
LOWER UNIT ASSEMBLY 80#, Salt Water
|
1 |
superseded
|
| 12 |
8M0140763 |
LOWER UNIT ASSEMBLY 80#, Salt Water, 84" Cable Use with Columns 72" or greater
|
1 |
|
| 12 |
8M0096755 |
LOWER UNIT ASSEMBLY 80#, Fresh Water
|
1 |
|
| 12 |
8M0096756 |
LOWER UNIT ASSEMBLY 80#, Fresh Water, Sonar Use with Columns less than 72"
|
1 |
disc.
|
| 12 |
8M0135683 |
LOWER UNIT ASSEMBLY 80#, Fresh Water, Sonar, 84" Cable Use with Columns 72" or greater
|
1 |
|
| 12 |
8M0096760 |
LOWER UNIT ASSEMBLY 105#, Salt Water Use with Columns less than 72"
|
1 |
superseded
|
| 12 |
8M0135685 |
LOWER UNIT ASSEMBLY 105#, Salt Water, 84" Cable Use with Columns 72" or greater
|
1 |
|
| 12 |
8M0096758 |
LOWER UNIT ASSEMBLY 105#, Fresh Water
|
1 |
|
| 12 |
8M0096759 |
LOWER UNIT ASSEMBLY 105#, Fresh Water, Sonar Use with Columns less than 72"
|
1 |
|
| 12 |
8M0135684 |
LOWER UNIT ASSEMBLY 105#, Fresh Water, Sonar, 84" Cable Use with Columns 72" or greater
|
1 |
|
| 13 |
8M0028330 |
PROP KIT Black, Safari
|
1 |
disc.
|
| 14 |
8M0105503 |
HARDWARE KIT, PROPELLER Fresh Water
|
1 |
disc.
|
| 14 |
8M0105256 |
HARDWARE KIT, PROPELLER With Anode Salt Water
|
1 |
|
| 15 |
MBR10202T |
PIN Prop Drive (.156 x 1.00)
|
1 |
|
| 16 |
NSS |
NOT SOLD SEPARATE WASHER
|
1 |
|
| 17 |
8M0092069 |
FOOT PEDAL Wireless
|
1 |
|
| 18 |
8M0092068 |
HAND REMOTE Wireless
|
1 |
|
| 19 |
8M0092071 |
HAND REMOTE Wireless, Pinpoint GPS
|
1 |
|
| 2 |
MBF02901T |
CONNECTOR Pigtail (#18-8)
|
2 |
disc.
|
| 20 |
8M0119628 |
HYSOL EPOXY ADHESIVE 50ml
|
1 |
|
| 21 |
879364T03 |
CABLE ASSEMBLY Transducer
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE SCREW, (.250-20 x 2.00)
|
1 |
|
| 4 |
MXT09802T |
LOCKNUT (.250-20) Stainless Steel
|
1 |
disc.
|
| 5 |
8M0084848 |
SCREW SET
|
1 |
disc.
|
| 6 |
8M0084849 |
DECAL SET Salt Water
|
1 |
|
| 6 |
8M0084850 |
DECAL SET Fresh Water
|
1 |
|
| 7 |
8M0029237 |
POWER CABLE Coiled Use with Columns less than 72"
|
1 |
|
| 7 |
8M0135682 |
POWER CABLE Coiled Use with Columns 72" or greater
|
1 |
|
| 8 |
8M0029242 |
BATTERY CABLE
|
1 |
|
| 9 |
M899552T1 |
COLLAR ASSEMBLY Depth
|
1 |
|
