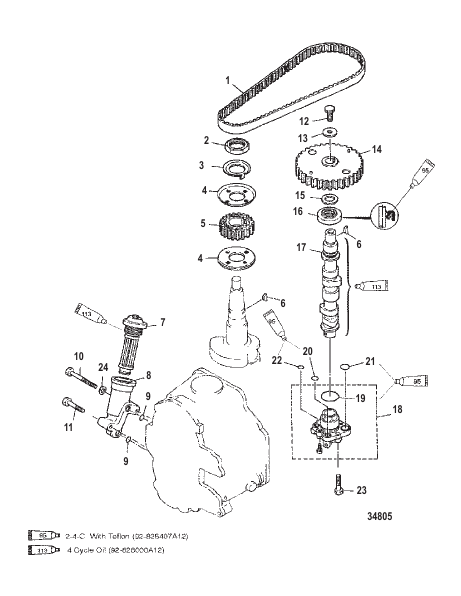

Camshaft/Oil Pump
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 822775A7 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | superseded |
| - | 825847A95 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 825657 |
РЕМЕНЬ BELT |
1 | discontinued |
| 10 | 84931M |
БОЛТ BOLT |
1 | discontinued |
| 11 | 82500930 |
БОЛТ (M6 x 30) BOLT (M6 x 30) |
1 | |
| 12 | 826957M |
БОЛТ BOLT |
1 | discontinued |
| 13 | 825498 |
ШАЙБА WASHER |
1 | discontinued |
| 14 | 825494 |
ПЕРЕДАЧА Ведомый GEAR Driven |
1 | superseded |
| 15 | 82710M |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 825455 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 17 | 825454 |
РАСПРЕДЕЛИТЕЛЬНЫЙ ВАЛ CAMSHAFT |
1 | discontinued |
| 18 | 825456A1 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | superseded |
| 19 | 825462 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 2 | 825717 |
ГАЙКА NUT |
1 | discontinued |
| 20 | 827016 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 21 | 825438 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 22 | 84464M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 23 | 825501 |
БОЛТ (M6 x 25) BOLT (M6 x 25) |
3 | superseded |
| 24 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 3 | 825718 |
ШАЙБА WASHER |
1 | discontinued |
| 4 | 825716 |
ШАЙБА WASHER |
2 | discontinued |
| 5 | 825715 |
ПЕРЕДАЧА Привод GEAR Drive |
1 | discontinued |
| 6 | 84403M |
КЛЮЧ KEY |
2 | superseded |
| 7 | 825467A1 |
ФИЛЬТР В СБОРЕ Масло/экран FILTER ASSEMBLY Oil/Screen |
1 | superseded |
| 8 | 825499 |
КОРПУС HOUSING |
1 | discontinued |
| 9 | 84464M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
