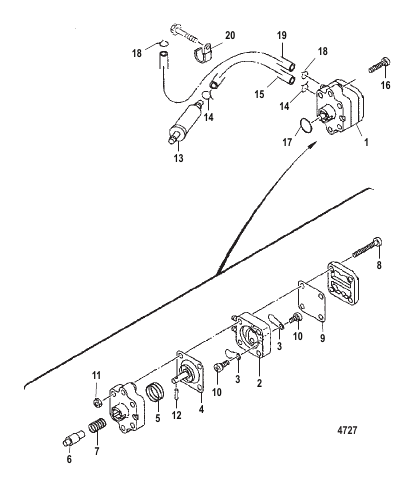

Fuel Pump
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 835427A98 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | superseded |
| 1 | 835389A2 |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | superseded |
| 10 | 41889M |
ВИНТ (M3 x 5) SCREW (M3 x 5) |
2 | discontinued |
| 11 | 8237515 |
ГАЙКА (M4) NUT (M4) |
2 | |
| 12 | 8095662 |
ШТИФТ PIN |
1 | discontinued |
| 13 | 80365M |
ФИЛЬТР FILTER |
1 | |
| 14 | 82047M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 15 | 852469 |
РУКАВ HOSE |
1 | superseded |
| 16 | 855683 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | discontinued |
| 17 | 825478 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 18 | 82047M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 19 | 855985 |
РУКАВ HOSE |
1 | superseded |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Корпус NOT SOLD SEPARATE Body |
1 | |
| 20 | 83577M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 3 | 41888M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 4 | 8095613 |
ДИАФРАГМА DIAPHRAGM |
1 | discontinued |
| 5 | 8095622 |
ПРУЖИНА SPRING |
1 | discontinued |
| 6 | 8095632 |
ПЛУНЖЕР PLUNGER |
1 | discontinued |
| 7 | 8095623 |
ПРУЖИНА SPRING |
1 | discontinued |
| 8 | 8095641 |
ВИНТ (M4 x 30) SCREW (M4 x 30) |
4 | discontinued |
| 9 | 8095614 |
ДИАФРАГМА DIAPHRAGM |
1 | discontinued |
