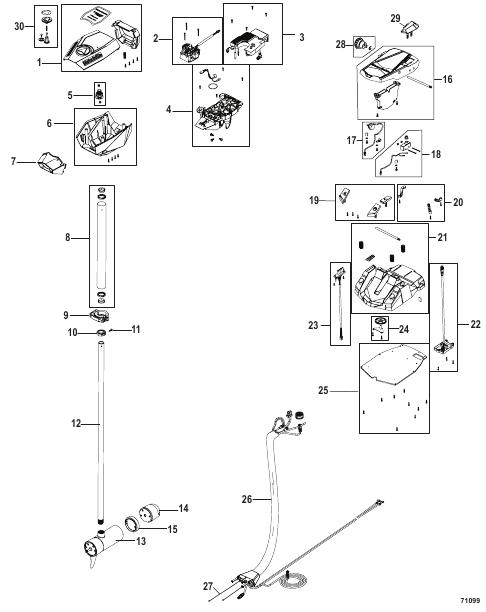

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M4004746 |
Head Cover Kit With Indicator Lens
|
1 |
|
| 10 |
8M4004064 |
Clamp Collar Kit
|
1 |
disc.
|
| 11 |
NSS |
NOT SOLD SEPARATE Screw
|
1 |
|
| 12 |
8M4004065 |
Column Kit 1.25X45 Composite
|
1 |
|
| 13 |
8M0096755 |
LOWER UNIT ASSEMBLY 80#, Fresh Water
|
1 |
|
| 13 |
8M0096758 |
LOWER UNIT ASSEMBLY 105#, Fresh Water
|
1 |
|
| 13 |
8M4005023 |
LOWER UNIT ASSEMBLY 24 Volt, HD+, Sonar
|
1 |
|
| 13 |
8M4005024 |
LOWER UNIT ASSEMBLY 36 Volt, HD+, Sonar
|
1 |
|
| 14 |
8M4507055 |
HD+ Nose Cone Kit
|
1 |
|
| 15 |
NSS |
NOT SOLD SEPARATE SPACER
|
1 |
|
| 16 |
8M4003375 |
Foot Pedal Pad Kit
|
1 |
|
| 17 |
8M4003373 |
Potentiometer Harness Asm Kit
|
1 |
|
| 18 |
8M4003370 |
Momentary Switch Kit
|
1 |
|
| 19 |
8M4004758 |
Foot Pedal Button Kit
|
1 |
|
| 2 |
8M4004753 |
Sensor Module Kit
|
1 |
disc.
|
| 20 |
8M4004757 |
Foot Pedal Arm Kit
|
1 |
disc.
|
| 21 |
8M4004760 |
Foot Pedal Base Kit
|
1 |
|
| 22 |
8M4004756 |
Foot Pedal Controller Kit
|
1 |
|
| 23 |
8M4004759 |
Foot Pedal LED Board Kit
|
1 |
|
| 24 |
8M4003369 |
Pulley Kit
|
1 |
|
| 25 |
8M4004755 |
Foot Pedal Base Plate Kit
|
1 |
|
| 26 |
8M4004754 |
Sonar Harness Asm Kit
|
1 |
|
| 27 |
8M4005025 |
Cable Kit
|
1 |
|
| 28 |
8M4003372 |
Speed Knob Kit
|
1 |
|
| 29 |
8M4003371 |
Momentary Button Kit
|
1 |
|
| 3 |
8M4004747 |
Main Controller Kit
|
1 |
|
| 30 |
8M4003360 |
Indicator Kit With Gear
|
1 |
|
| 4 |
8M4004751 |
Transimission Kit 24v
|
1 |
|
| 4 |
8M4004752 |
Transimission Kit 36v
|
1 |
|
| 5 |
8M4003362 |
Pinion Kit
|
1 |
|
| 6 |
8M4004750 |
Base Head Kit
|
1 |
disc.
|
| 7 |
8M4004748 |
Strain Relief Kit
|
1 |
disc.
|
| 8 |
8M4003363 |
Outer Column Kit
|
1 |
|
| 9 |
8M4004062 |
Depth Collar
|
1 |
|
