Parts Catalog

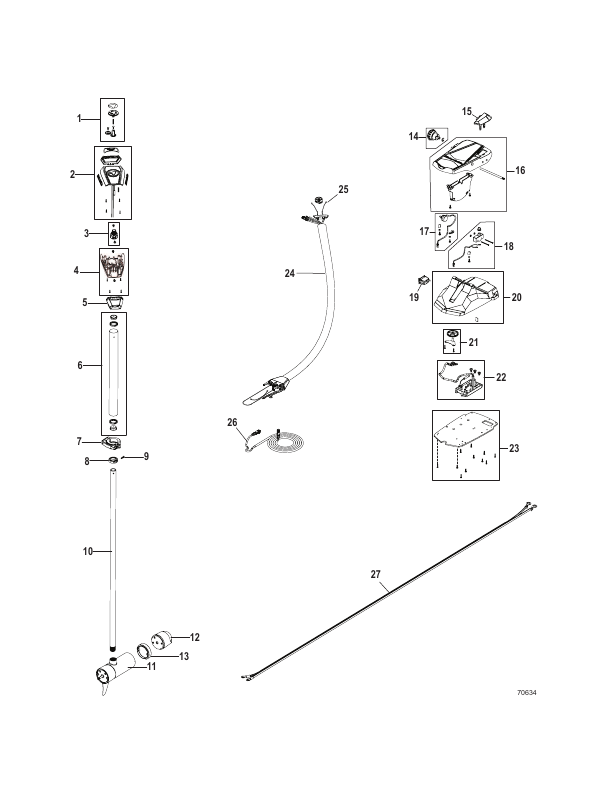

Complete Trolling Motor

Parts (30)

#	Part Number	Description	Qty	Status
1	8M4003360	Indicator Kit With Gear Indicator Kit With Gear	1
10	8M4004065	Column Kit 1.25X45 Composite Column Kit 1.25X45 Composite	1
11	8M0096755	НИЖНИЙ БЛОК В СБОРЕ 80#, пресная вода LOWER UNIT ASSEMBLY 80#, Fresh Water	1
11	8M0096758	НИЖНИЙ БЛОК В СБОРЕ 105#, пресная вода LOWER UNIT ASSEMBLY 105#, Fresh Water	1
11	8M4005023	LOWER UNIT ASSEMBLY 24 Volt, HD+, Sonar LOWER UNIT ASSEMBLY 24 Volt, HD+, Sonar	1
11	8M4005024	LOWER UNIT ASSEMBLY 36 Volt, HD+, Sonar LOWER UNIT ASSEMBLY 36 Volt, HD+, Sonar	1
12	8M4507055	HD+ Nose Cone Kit HD+ Nose Cone Kit	1
13	NSS	НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spacer NOT SOLD SEPARATE Spacer	1
14	8M4003372	Speed Knob Kit Speed Knob Kit	1
15	8M4003371	Momentary Button Kit Momentary Button Kit	1
16	8M4003375	Foot Pedal Pad Kit Foot Pedal Pad Kit	1
17	8M4003373	Potentiometer Harness Asm Kit Potentiometer Harness Asm Kit	1
18	8M4003370	Momentary Switch Kit Momentary Switch Kit	1
19	8M0089419	ПЕРЕКЛЮЧАТЕЛЬ SWITCH	1
2	8M4003358	Head Cap Kit Head Cap Kit	1	discontinued
20	8M4003374	Foot Pedal Base Kit Foot Pedal Base Kit	1
21	8M4003369	Pulley Kit Pulley Kit	1
22	8M4003366	Foot Pedal Control Board Kit Foot Pedal Control Board Kit	1	discontinued
23	8M4003365	Foot Pedal Base Plate Kit Foot Pedal Base Plate Kit	1
24	8M4004066	Harness Assembly w/Sonar and Cables Harness Assembly w/Sonar and Cables	1
25	8M4005025	Cable Kit Cable Kit	1
26	8M4003368	Sonar Cable Kit Sonar Cable Kit	1
27	8M4003367	Battery Cable Kit Battery Cable Kit	1
3	8M4003362	Pinion Kit Pinion Kit	1
4	8M4003361	Bottom Head Kit Bottom Head Kit	1
5	8M4004061	Strain Relief Kit Strain Relief Kit	1	discontinued
6	8M4003363	Outer Column Kit Outer Column Kit	1
7	8M4004062	Depth Collar Depth Collar	1
8	8M4004064	Clamp Collar Kit Clamp Collar Kit	1	discontinued
9	NSS	НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw NOT SOLD SEPARATE Screw	1
