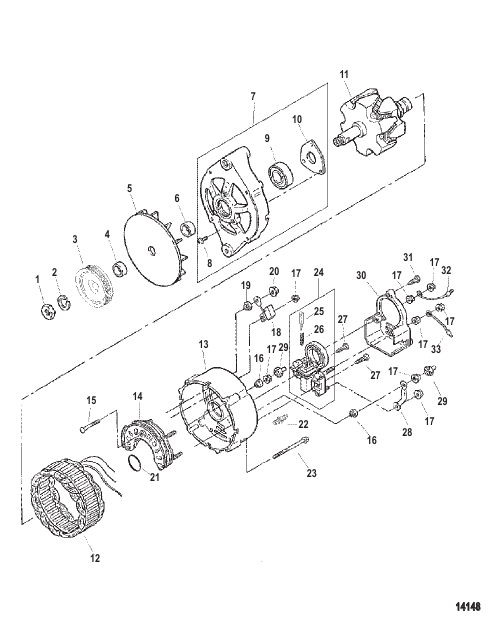

ALTERNATOR (MANDO)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 805884T |
ГЕНЕРАТОР ALTERNATOR |
1 | |
| 1 | 809136 |
ГАЙКА NUT |
1 | discontinued |
| 10 | 809152 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 11 | 809150 |
РОТОР ROTOR |
1 | discontinued |
| 12 | 809133 |
СТАТОР STATOR |
1 | superseded |
| 13 | 809155 |
КРОНШТЕЙН В СБОРЕ Задний BRACKET ASSEMBLY Rear |
1 | discontinued |
| 14 | 809162 |
ВЫПРЯМИТЕЛЬ RECTIFIER |
1 | discontinued |
| 15 | 809160 |
УСТАНОВОЧНЫЙ ВИНТ SET SCREW |
1 | discontinued |
| 16 | 809146 |
ЛИТЬЕ MOLD |
2 | discontinued |
| 17 | 809143 |
ГАЙКА NUT |
8 | discontinued |
| 18 | 809161 |
КОНДЕНСАТОР CONDENSER |
1 | discontinued |
| 19 | 809158 |
ЛИТЬЕ MOLD |
1 | discontinued |
| 2 | 809137 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 20 | 809157 |
ГАЙКА NUT |
1 | discontinued |
| 21 | 809156 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 22 | 809159 |
БОЛТ BOLT |
1 | discontinued |
| 23 | 809138 |
БОЛТ Сквозной BOLT Thru |
4 | discontinued |
| 24 | 809163 |
РЕГУЛЯТОР В СБОРЕ REGULATOR ASSEMBLY |
1 | superseded |
| 25 | 809164 |
ЩЕТКА BRUSH |
2 | superseded |
| 26 | 809165 |
ПРУЖИНА SPRING |
2 | superseded |
| 27 | 809141 |
ВИНТ SCREW |
2 | discontinued |
| 28 | 809142 |
КЛЕММА TERMINAL |
1 | discontinued |
| 29 | 809149 |
ПРОБКА CAP |
2 | discontinued |
| 3 | 809134 |
ШКИВ PULLEY |
1 | |
| 30 | 809144 |
КРЫШКА COVER |
1 | discontinued |
| 31 | 809145 |
УСТАНОВОЧНЫЙ ВИНТ SET SCREW |
1 | discontinued |
| 32 | 809148 |
ВВОДНЫЙ ПРОВОД (черный) LEAD WIRE (Black) |
1 | discontinued |
| 33 | 809147 |
ВВОДНЫЙ ПРОВОД (Красный) LEAD WIRE (Red) |
1 | discontinued |
| 4 | 809135 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 5 | 809139 |
ВЕНТИЛЯТОР В СБОРЕ FAN ASSEMBLY |
1 | |
| 6 | 809140 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 7 | 809151 |
КРОНШТЕЙН В СБОРЕ Передний BRACKET ASSEMBLY Front |
1 | discontinued |
| 8 | 809154 |
ВИНТ SCREW |
3 | discontinued |
| 9 | 809153 |
ПОДШИПНИК Шарик BEARING Ball |
1 | discontinued |
