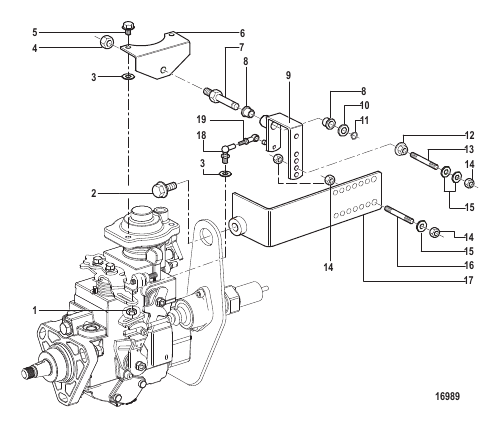

Injection Pump Mounting (All Mechanical Engines)
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 855385 |
ГАЙКА (M5) NUT (M5) |
1 | discontinued |
| 10 | 898101537 |
ШАЙБА WASHER |
1 | superseded |
| 11 | 879288042 |
ЗАЖИМ E-CLIP E-CLIP |
1 | |
| 12 | 854032 |
ГАЙКА (M6) NUT (M6) |
1 | superseded |
| 13 | 854039 |
ШПИЛЬКА Рычаг TPS STUD TPS Lever |
1 | discontinued |
| 14 | 854028 |
КОНТРГАЙКА LOCKNUT |
4 | discontinued |
| 15 | 854029 |
ШАЙБА WASHER |
3 | discontinued |
| 16 | 854027 |
ШПИЛЬКА STUD |
1 | discontinued |
| 17 | 898272041 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 18 | 879288043 |
ШТИФТ PIN |
1 | |
| 19 | 879288044 |
КОМПЛЕКТ ШТОКА Соединитель ROD KIT Link |
1 | |
| 2 | 898272040 |
ВИНТ SCREW |
1 | superseded |
| 3 | 879194400 |
ШАЙБА WASHER |
2 | superseded |
| 4 | 879288038 |
ГАЙКА NUT |
1 | |
| 5 | 896332173 |
ВИНТ SCREW |
2 | superseded |
| 6 | 879288039 |
ПОДШИПНИК Угол BEARING Angle |
1 | |
| 7 | 879288040 |
ВИНТ SCREW |
1 | |
| 8 | 879288041 |
ВТУЛКА BUSHING |
2 | |
| 9 | 880838 |
РЫЧАГ LEVER |
1 |
