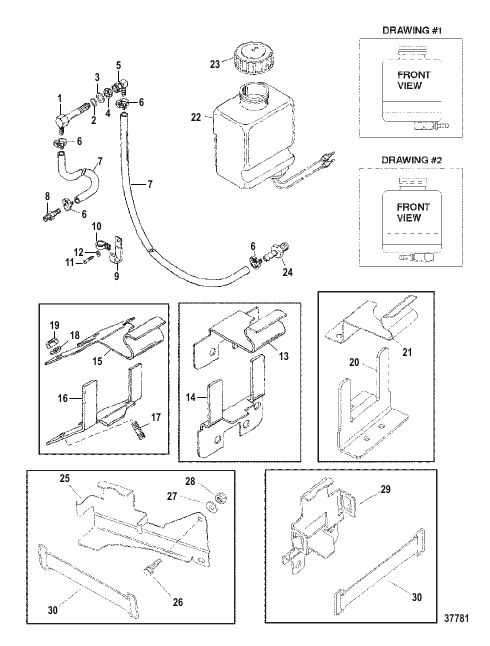

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
18922 |
CONNECTOR
|
1 |
|
| 10 |
23567 |
CLIP
|
1 |
|
| 11 |
60605 |
SCREW (#10-16 x .750)
|
1 |
|
| 12 |
69205 |
C WASHER
|
1 |
superseded
|
| 13 |
806293T |
BRACKET Clip 3.0LX
|
1 |
disc.
|
| 14 |
807024T |
BRACKET 3.0LX
|
1 |
superseded
|
| 15 |
806292T |
BRACKET 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
|
1 |
superseded
|
| 16 |
807025T |
BRACKET 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
|
1 |
disc.
|
| 17 |
805357 |
STUD (.375-16 x 2.130) 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
|
2 |
superseded
|
| 18 |
20553 |
WASHER (.406 x .734 x .063) 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
|
2 |
|
| 19 |
32219 |
NUT (.375-16) 4.3L/4.3LX/5.7L5.7LX/350 MAGNUM
|
2 |
|
| 2 |
20195 |
O-RING
|
1 |
superseded
|
| 20 |
806649T |
BRACKET 5.7L (TBI)/5.7LX (TBI)
|
1 |
disc.
|
| 21 |
806650T |
BRACKET 350 MAG. (TBI)(GEN+)/262 MAG. (TBI)(GEN+)
|
1 |
disc.
|
| 22 |
806193A3 |
RESERVOIR ASSEMBLY Oil (FITTING POINTING TOWARD RIGHT SIDE) (SEE DRAWING #1)
|
1 |
superseded
|
| 22 |
806193A13 |
RESERVOIR (FITTING POINTING TOWARD LEFT SIDE) (SEE DRAWING #2)
|
1 |
superseded
|
| 23 |
808625 |
CAP Drive Lube Monitor
|
1 |
superseded
|
| 24 |
808624 |
CONNECTOR
|
1 |
|
| 25 |
807839T |
BRACKET 4.3LX/4.3LXH/262 MAG. EFI
|
1 |
superseded
|
| 26 |
657461 |
SCREW AND LOCKWASHER (.250-20 x .625) 4.3LX/4.3LXH/262 MAG. EFI
|
1 |
|
| 27 |
69057 |
WASHER (.281 x .734 x .063) 4.3LX/4.3LXH/262 MAG. EFI
|
1 |
|
| 28 |
72008 |
NUT (.250-20) 4.3LX/4.3LXH/262 MAG. EFI
|
1 |
superseded
|
| 29 |
860065A1 |
BRACKET KIT Oil Bottle 3.0LX/5.7L/LX & 350 MAGNUM (CARB & EFI)
|
1 |
|
| 3 |
91964 |
WASHER
|
1 |
superseded
|
| 30 |
808023T |
STRAP Bracket
|
1 |
|
| 4 |
35053 |
NUT (.437-20)
|
1 |
superseded
|
| 5 |
18923 |
FITTING
|
1 |
|
| 6 |
415825 |
CLAMP Nylon
|
4 |
|
| 7 |
1940971 |
HOSE (54.00 Inches Bulk)
|
2 |
superseded
|
| 8 |
16739 |
CONNECTOR
|
1 |
superseded
|
| 9 |
642351 |
J CLIP
|
1 |
superseded
|
