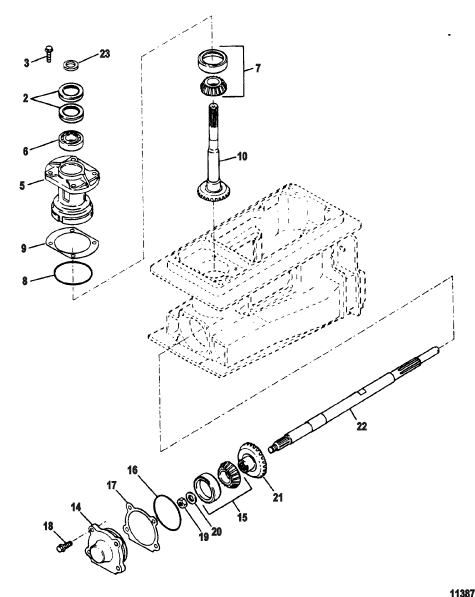

| # | Part Number | Description | Qty | Status |
|---|
| - |
820238A11 |
HOUSING KIT Drive (Complete) (Painted) (No Impeller)
|
1 |
disc.
|
| - |
809175A1 |
SEAL/GASKET SET Drive Housing
|
1 |
superseded
|
| 10 |
826534T |
GEAR/SHAFT ASSEMBLY Pinion
|
1 |
disc.
|
| 14 |
820241A2 |
COVER ASSEMBLY Impeller Shaft (Painted)
|
1 |
superseded
|
| 15 |
86748A1 |
BEARING ASSEMBLY Tapered Roller (Cup And Cone)
|
1 |
superseded
|
| 16 |
62700 |
O-RING (3.237 x .103)
|
1 |
|
| 17 |
820321002 |
SHIM Red (.002)
|
AR |
disc.
|
| 17 |
820321004 |
SHIM Beige (.004)
|
AR |
disc.
|
| 17 |
820321005 |
SHIM Blue (.005)
|
AR |
disc.
|
| 17 |
820321007 |
SHIM Frost (.0075)
|
AR |
disc.
|
| 17 |
820321010 |
SHIM Brown (.010)
|
AR |
disc.
|
| 17 |
820321020 |
SHIM Yellow (.020)
|
AR |
disc.
|
| 18 |
4010725 |
SCREW (M8 x 25)
|
4 |
|
| 19 |
818591 |
NUT (M14)
|
1 |
|
| 2 |
826210 |
SEAL Pinion Shaft
|
2 |
|
| 20 |
820335 |
WASHER
|
1 |
disc.
|
| 21 |
826535T |
GEAR Impeller Shaft
|
1 |
disc.
|
| 22 |
820505 |
SHAFT Impeller (Splined)
|
1 |
disc.
|
| 23 |
30271 |
RING Rubber Rubber
|
1 |
superseded
|
| 3 |
4010725 |
SCREW (M8 x 25)
|
4 |
|
| 5 |
826126A1 |
HOUSING ASSEMBLY Pinion Shaft (Painted)
|
1 |
disc.
|
| 6 |
820292 |
BEARING Ball
|
1 |
|
| 7 |
86748A1 |
BEARING ASSEMBLY Tapered Roller (Cup And Cone)
|
1 |
superseded
|
| 8 |
54030 |
O-RING (2.987 x .103)
|
1 |
|
| 9 |
820327002 |
SHIM Red (.002)
|
AR |
disc.
|
| 9 |
820327004 |
SHIM Beige (.004)
|
AR |
disc.
|
| 9 |
820327005 |
SHIM Blue (.005)
|
AR |
disc.
|
| 9 |
820327007 |
SHIM Frost (.0075)
|
AR |
disc.
|
| 9 |
820327010 |
SHIM Brown (.010)
|
AR |
disc.
|
| 9 |
820327020 |
SHIM Yellow (.020)
|
AR |
disc.
|
