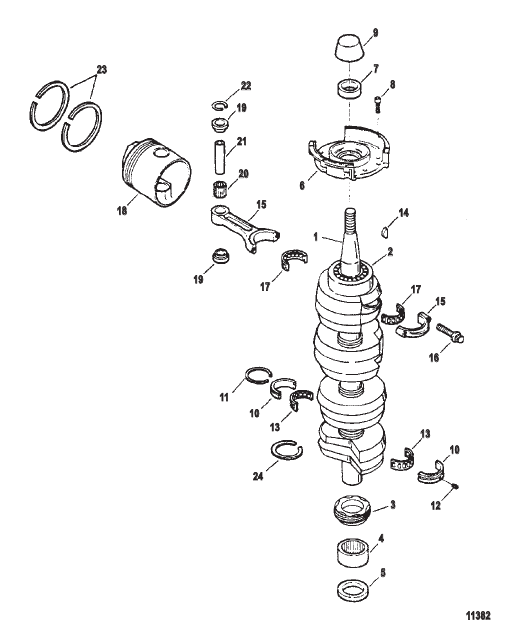

| # | Part Number | Description | Qty | Status |
|---|
| - |
818154A23 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| - |
809183A1 |
GASKET SET Powerhead
|
1 |
superseded
|
| 1 |
820679A1 |
CRANKSHAFT ASSEMBLY
|
1 |
superseded
|
| 10 |
FA85655-1 |
BEARING ASSEMBLY Center Main
|
3 |
superseded
|
| 11 |
F85410 |
RING Snap
|
3 |
disc.
|
| 12 |
823605 |
PIN Locating (Pressed Into Cylinder Assembly)
|
4 |
disc.
|
| 13 |
819193 |
CAGE/ROLLER SET
|
3 |
disc.
|
| 14 |
F85498-1 |
FLYWHEEL KEY
|
1 |
|
| 15 |
818052A6 |
CONNECTING ROD ASSEMBLY
|
4 |
superseded
|
| 16 |
91012 |
SCREW (.250-28 Special) Conn Rod
|
8 |
|
| 17 |
62596A2 |
CAGE/ROLLER SET
|
4 |
disc.
|
| 18 |
819005A11 |
PISTON KIT (Standard)
|
4 |
superseded
|
| 18 |
819005A12 |
PISTON KIT (.010 Oversize)
|
OPT |
superseded
|
| 18 |
819005A13 |
PISTON KIT (.030 Oversize)
|
OPT |
superseded
|
| 19 |
F366215 |
SPACER Piston Pin
|
8 |
disc.
|
| 2 |
F284659-2 |
BEARING Ball Upper
|
1 |
superseded
|
| 20 |
F335217-1 |
BEARING (26)
|
4 |
disc.
|
| 21 |
F694017-1 |
PIN Piston
|
4 |
disc.
|
| 22 |
F694096 |
RETAINER Piston Pin
|
8 |
disc.
|
| 23 |
820457A2 |
RING SET Piston (2 Rings) (Standard)
|
4 |
disc.
|
| 23 |
820641A1 |
RING SET Piston (2 Rings) (.010 Oversize)
|
OPT |
disc.
|
| 23 |
818129A2 |
RING SET Piston (2 Rings) (.030 Oversize)
|
OPT |
disc.
|
| 24 |
F316579 |
SEAL Crankcase
|
3 |
|
| 3 |
F748691 |
GEAR Oil Injection
|
1 |
disc.
|
| 4 |
818050A3 |
BEARING ASSEMBLY Lower
|
1 |
superseded
|
| 5 |
F523146-1 |
SEAL (See Note # 1)
|
1 |
superseded
|
| 6 |
819312A1 |
CAGE ASSEMBLY Crankshaft Upper
|
1 |
superseded
|
| 7 |
F523146-1 |
SEAL
|
1 |
superseded
|
| 8 |
92160 |
SCREW (.250-20 x .750) Stainless Steel
|
5 |
|
| 9 |
F2067 |
CAP Plastisol Crankshaft End
|
1 |
disc.
|
