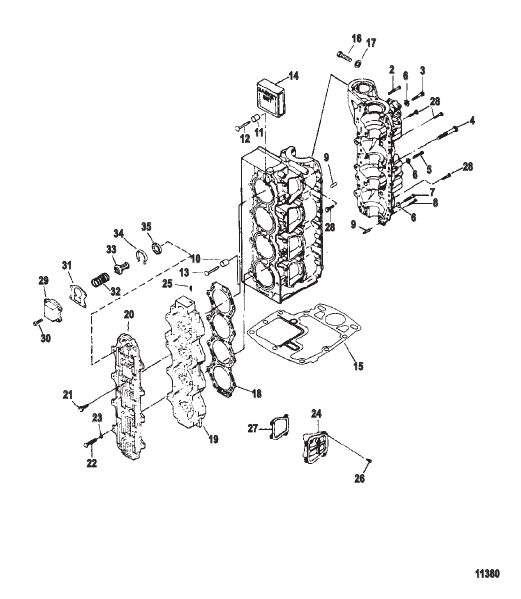

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
818154A23 |
POWERHEAD ASSEMBLY (Painted)
|
1 |
superseded
|
| 1 |
818154A25 |
CYLINDER BLOCK KIT
|
1 |
disc.
|
| 10 |
F719418 |
TUBE Water Jacket
|
3 |
|
| 11 |
F719943 |
TUBE Water Jacket (Top)
|
1 |
|
| 12 |
F691372 |
PIN Water Jacket Tube (Top)
|
1 |
disc.
|
| 13 |
F719372 |
PIN Water Jacket Tube
|
3 |
disc.
|
| 14 |
809183A1 |
GASKET SET Powerhead
|
1 |
superseded
|
| 15 |
8237002 |
GASKET Spacer Plate
|
1 |
|
| 16 |
F2000 |
SCREW (.312-18 x .750) (Ground)
|
1 |
superseded
|
| 17 |
53166 |
LOCKWASHER (.312) (Ground)
|
1 |
|
| 18 |
824615 |
GASKET Cylinder Head
|
1 |
superseded
|
| 19 |
8197772 |
CYLINDER HEAD
|
1 |
superseded
|
| 2 |
F1874 |
SCREW (.375-16 x 3.125)
|
1 |
disc.
|
| 20 |
F665995 |
COVER Cylinder Head
|
1 |
disc.
|
| 21 |
98254 |
SCREW (.250-20 x .620)
|
4 |
|
| 22 |
F1883 |
BOLT (.312-18 x 2.375)
|
18 |
|
| 23 |
34437 |
WASHER
|
18 |
|
| 24 |
817790A1 |
COVER Transfer Port
|
3 |
disc.
|
| 25 |
F722109-1 |
PLUG (Nylon) Cylinder Head
|
1 |
disc.
|
| 26 |
98254 |
SCREW (.250-20 x .620)
|
12 |
|
| 27 |
820500 |
GASKET Transfer Port Cover
|
3 |
superseded
|
| 28 |
F2008 |
SCREW (.250-20 x .875)
|
24 |
disc.
|
| 29 |
819693 |
COVER Thermostat
|
1 |
disc.
|
| 3 |
47688 |
SCREW (.375-16 x 2.750)
|
1 |
|
| 30 |
19927075 |
SCREW (.250-20 x .75) (With Dri Loc)
|
4 |
superseded
|
| 31 |
F476067 |
GASKET Thermostat Cover
|
1 |
superseded
|
| 32 |
F692268 |
SPRING Red
|
1 |
disc.
|
| 33 |
F664068 |
THERMOSTAT 54°C (130°F)
|
1 |
|
| 34 |
F719902 |
SPACER
|
1 |
superseded
|
| 35 |
F664914 |
SEAL Thermostat
|
1 |
|
| 4 |
53734 |
SCREW (.375-16 x 3.00)
|
2 |
disc.
|
| 5 |
94207 |
SCREW (.375-16 x 2.00)
|
4 |
disc.
|
| 6 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
10 |
|
| 7 |
32132 |
SCREW (.375-16 x 1.750)
|
2 |
|
| 8 |
820589 |
SCREW (.250-20 x 1.250)
|
2 |
|
| 9 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
