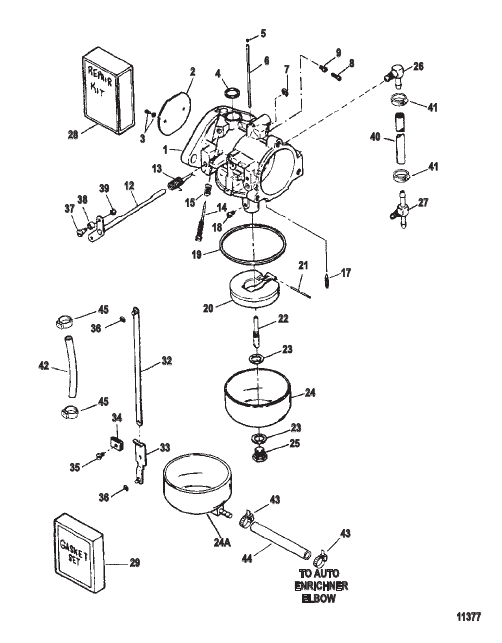

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
826706 |
CARBURETOR Top (TC-126A)
|
1 |
superseded
|
| 1 |
826707 |
CARBURETOR Bottom (TC-127A)
|
1 |
superseded
|
| 12 |
FO17884 |
SHAFT AND LEVER Throttle Throttle
|
1 |
disc.
|
| 13 |
FO16143 |
SPRING Throttle Shaft
|
1 |
|
| 14 |
F10268 |
SCREW Idle Mixture
|
1 |
|
| 15 |
27160 |
SPRING Idle Mixture Screw
|
1 |
|
| 17 |
F10265 |
NEEDLE Inlet (Note: Do Not Remove Inlet Seat)
|
1 |
|
| 18 |
6247 |
JET Main (.090) Main Fuel (0 - 1500 Feet) (Top)
|
1 |
|
| 18 |
FO13193 |
JET Main (.088) Main Fuel (1500 - 3000 Feet) (Top)
|
OPT |
|
| 18 |
FO13949 |
JET (.086) Main Fuel (3000 - 4500 Feet) (Top)
|
OPT |
|
| 18 |
3517 |
JET (.084) Main Fuel (4500 - 6000 Feet) (Top)
|
OPT |
|
| 18 |
3518 |
JET (.082) Main Fuel (6000 - 10000 Feet) (Top)
|
OPT |
|
| 18 |
5733 |
JET Main (.092) Main Fuel (0 - 1500 Feet) (Bottom)
|
1 |
|
| 18 |
6247 |
JET Main (.090) Main Fuel (1500 - 3000 Feet) (Bottom)
|
OPT |
|
| 18 |
FO13193 |
JET Main (.088) Main Fuel (3000 - 4500 Feet) (Bottom)
|
OPT |
|
| 18 |
FO13949 |
JET (.086) Main Fuel (4500 - 6000 Feet) (Bottom)
|
OPT |
|
| 18 |
3517 |
JET (.084) Main Fuel (6000 - 10000 Feet) (Bottom)
|
OPT |
|
| 19 |
FO15623 |
GASKET Fuel Bowl
|
1 |
|
| 2 |
F10361 |
SHUTTER Throttle
|
1 |
disc.
|
| 20 |
F10346 |
FLOAT Fuel Bowl
|
1 |
superseded
|
| 21 |
FO13944 |
PIN Float
|
1 |
|
| 22 |
FO16133 |
NOZZLE Main
|
1 |
|
| 23 |
FO5323 |
GASKET Fuel Bowl
|
2 |
|
| 24 |
FO16130 |
BOWL Fuel (Bottom)
|
1 |
|
| 24A |
809181 |
BOWL Fuel (Top)
|
1 |
disc.
|
| 25 |
FO16132 |
SCREW Fuel Bowl
|
1 |
disc.
|
| 26 |
F84314-2 |
ELBOW (L) (L) (Top)
|
1 |
disc.
|
| 27 |
F85314-1 |
FITTING (T) (T) (Bottom)
|
1 |
superseded
|
| 28 |
FK10103-2 |
REPAIR KIT Carburetor
|
1 |
|
| 29 |
FK10023 |
GASKET SET Carburetor Carburetor
|
1 |
|
| 3 |
F10328 |
SCREW Shutter
|
2 |
superseded
|
| 32 |
FA178233 |
TIE BAR ASSEMBLY Throttle
|
1 |
disc.
|
| 33 |
FA85193 |
END ASSEMBLY Tie Bar
|
1 |
disc.
|
| 34 |
F1693 |
NUT (#8-32)
|
1 |
|
| 35 |
F1064 |
SCREW (#8-32 x .375)
|
1 |
|
| 36 |
21058 |
E RING Retaining
|
2 |
disc.
|
| 37 |
F333316 |
SHAFT Throttle Roller
|
1 |
superseded
|
| 38 |
819225 |
ROLLER
|
1 |
disc.
|
| 39 |
F1997 |
NUT (#8-32)
|
1 |
superseded
|
| 4 |
FO16128 |
PLUG Welch
|
1 |
|
| 40 |
82722881 |
HOSE (38.00 Inches Bulk) (Cut to 7.500 Inch Length)
|
1 |
disc.
|
| 41 |
F698772 |
CLAMP Worm Gear
|
2 |
|
| 42 |
7381563 |
HOSE (34.00 Inches Bulk) (Cut to 7.500 Inch Length)
|
1 |
superseded
|
| 43 |
56762 |
TIE STRAP (4.00 Inches)
|
2 |
|
| 44 |
82724316 |
HOSE (4.750 Inches Bulk)
|
1 |
disc.
|
| 45 |
814200 |
CLAMP
|
2 |
|
| 5 |
FO10588 |
PLUG
|
6 |
|
| 6 |
FO16993 |
TUBE By Pass
|
1 |
|
| 7 |
FO16620 |
E RING Throttle Shaft
|
1 |
disc.
|
| 8 |
F10275 |
SCREW Sealing
|
1 |
|
| 9 |
F10273 |
JET (.047) Idle Air
|
1 |
|
