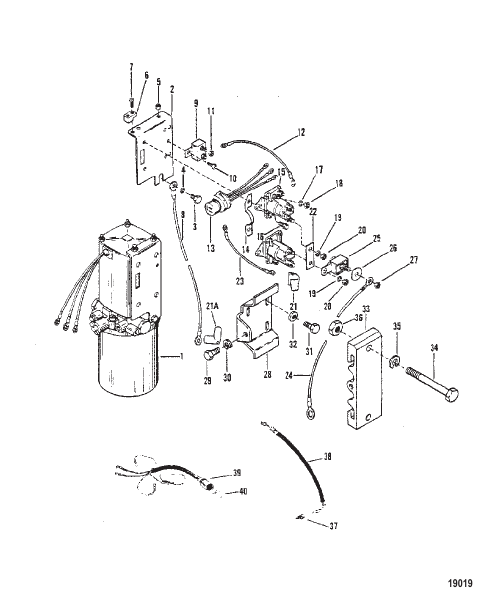

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
92459A4 |
PUMP ASSEMBLY Hydraulic
|
1 |
superseded
|
| 10 |
69014 |
SCREW (#10-24 x .375) [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
1 |
superseded
|
| 11 |
45076 |
NUT (#10-32) Brass [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
2 |
|
| 12 |
87379A2 |
WIRE (RED - 3")
|
1 |
disc.
|
| 12 |
61600A9 |
WIRE (BLACK - 3-1/4")
|
1 |
disc.
|
| 12 |
87379A5 |
WIRE (RED - 5-1/2")
|
1 |
disc.
|
| 13 |
74023A1 |
HARNESS ASSEMBLY (3 RING TERMINALS)
|
1 |
disc.
|
| 13 |
79147A3 |
HARNESS ASSEMBLY (W/FUSE HOLDER)
|
1 |
|
| 14 |
88075 |
RETAINER
|
1 |
|
| 15 |
68258A4 |
SOLENOID ASSEMBLY Starter [Merc-6073191/Mariner-6055032] & Below
|
2 |
superseded
|
| 15 |
96158 |
SOLENOID Starter [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
2 |
superseded
|
| 16 |
41508 |
SCREW (.250-20 x .500) Stainless Steel
|
4 |
|
| 17 |
26995 |
LOCKWASHER (#8) Stainless Steel
|
4 |
|
| 17 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
4 |
|
| 18 |
26419 |
NUT (#8-32) Brass
|
4 |
|
| 18 |
68219 |
NUT (#10-32) Stainless Steel
|
4 |
|
| 19 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
4 |
|
| 19 |
26993 |
LOCKWASHER (.312)
|
4 |
superseded
|
| 2 |
90318 |
BRACKET
|
1 |
disc.
|
| 20 |
94330 |
NUT (.250-20) Brass
|
4 |
|
| 20 |
68292 |
NUT (.312-18)
|
4 |
superseded
|
| 21 |
96535 |
BOOT [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
4 |
superseded
|
| 21A |
46265 |
BOOT
|
4 |
|
| 22 |
94275 |
LINK [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
1 |
|
| 23 |
86322A15 |
CABLE ASSEMBLY (5.50 Inches) Black [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
1 |
|
| 24 |
32979 |
LEAD Battery (POSITIVE) [Merc-USA-5464485/AUS-8061769/Mariner-5875388] & Below
|
1 |
disc.
|
| 24 |
79139A9 |
CABLE ASSEMBLY Battery (POSITIVE) [Merc-5464486/Mariner-5624878] THRU [Merc-6073191/Mariner-6055032]
|
1 |
disc.
|
| 24 |
79139A12 |
CABLE ASSEMBLY Red-Positive (POSITIVE) [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
1 |
|
| 25 |
79023A10 |
FUSE ASSEMBLY 110 Ampere [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
1 |
superseded
|
| 26 |
96457 |
WASHER Phenolic (.27 x .81 x .062) [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
1 |
|
| 27 |
21825 |
NUT (.250-28) [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
1 |
|
| 28 |
87760 |
PLATE
|
1 |
superseded
|
| 29 |
39349 |
SCREW (.312-18 x .750) Stainless Steel
|
1 |
|
| 3 |
90285 |
SCREW (.312-18 x .625)
|
1 |
|
| 30 |
26993 |
LOCKWASHER (.312)
|
1 |
superseded
|
| 31 |
90271 |
SCREW (.375-16 x .62)
|
2 |
|
| 32 |
58643 |
LOCKWASHER (.375)
|
2 |
|
| 33 |
87762 |
BRACKET
|
1 |
|
| 34 |
31830 |
BOLT (.375-24 x 1.75)
|
2 |
disc.
|
| 35 |
58643 |
LOCKWASHER (.375)
|
2 |
|
| 36 |
46335 |
NUT (.375-24)
|
2 |
|
| 37 |
89029 |
ADAPTER (1/4 Inch Flare) [Merc-USA-5464485/AUS-8061769/Mariner-5875388] & Below
|
1 |
|
| 37 |
77366 |
FITTING (3/16 Inch Flare) [Merc-USA-5464485/AUS-8061769/Mariner-5875388] & Below
|
1 |
|
| 38 |
67740 |
HOSE (PORT) [Merc-USA-5464485/AUS-8061769/Mariner-5875388] & Below
|
1 |
|
| 38 |
67742 |
HOSE (STARBOARD) [Merc-USA-5464485/AUS-8061769/Mariner-5875388] & Below
|
1 |
|
| 39 |
89017A1 |
HARNESS ASSEMBLY Trim Sender [Merc-USA-5464485/AUS-8061769/Mariner-5875388] & Below
|
1 |
disc.
|
| 4 |
56720 |
WASHER (.330 x .750 x .060) Stainless Steel
|
1 |
|
| 40 |
75343 |
CLAMP [Merc-USA-5464485/AUS-8061769/Mariner-5875388] & Below
|
1 |
disc.
|
| 5 |
29488 |
NUT (#10-32)
|
2 |
superseded
|
| 6 |
45915 |
TERMINAL BLOCK
|
1 |
|
| 7 |
62568 |
SCREW (#10-16 x .375)
|
2 |
|
| 8 |
32988 |
LEAD Battery (NEGATIVE) [Merc-USA-5464485/AUS-8061769/Mariner-5875388] & Below
|
1 |
disc.
|
| 8 |
79138A4 |
CABLE ASSEMBLY (NEGATIVE) [Merc-5464486/Mariner-5624878] THRU [Merc-6073191/Mariner-6055032]
|
1 |
disc.
|
| 8 |
79138A9 |
CABLE ASSEMBLY (6.00 Feet) Black-Negative (NEGATIVE) [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
1 |
|
| 9 |
79149 |
BREAKER Circuit - 20 Ampere (20 AMP.) [Merc-6073192/Mariner-6055033] THRU [Merc/Mariner-6625220]
|
1 |
superseded
|
