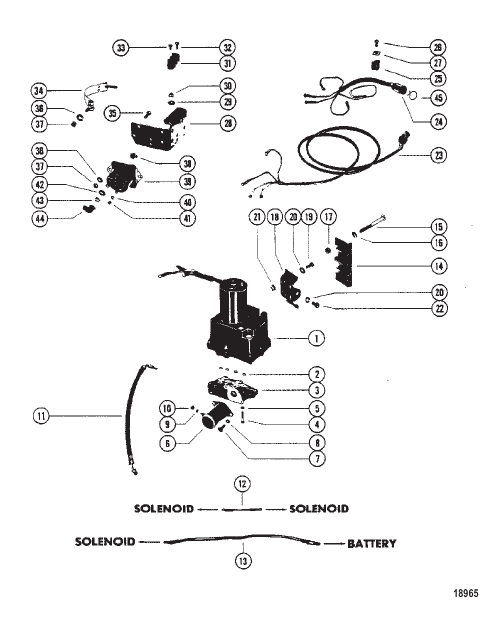

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
67914A2 |
PUMP ASSEMBLY Hydraulic
|
1 |
superseded
|
| 10 |
68219 |
NUT (#10-32) Stainless Steel
|
1 |
|
| 11 |
67740 |
HOSE (PORT)
|
1 |
|
| 11 |
67742 |
HOSE (STARBOARD)
|
1 |
|
| 12 |
79139A2 |
WIRE ASSEMBLY Jumper (RED)
|
1 |
disc.
|
| 12 |
55992 |
WIRE Jumper (BLACK)
|
1 |
disc.
|
| 13 |
32979 |
LEAD Battery (POSITIVE)
|
1 |
disc.
|
| 13 |
32988 |
LEAD Battery (NEGATIVE)
|
1 |
disc.
|
| 14 |
87762A2 |
BRACKET KIT Trim Pump Mounting
|
1 |
superseded
|
| 15 |
69698 |
BOLT (.375-24 x 3.500)
|
2 |
disc.
|
| 16 |
58643 |
LOCKWASHER (.375)
|
2 |
|
| 17 |
46335 |
NUT (.375-24)
|
2 |
|
| 18 |
71976 |
MOUNTING PLATE
|
1 |
disc.
|
| 19 |
37562 |
SCREW (.312-18 x 1.00) Stainless Steel
|
4 |
|
| 2 |
48171 |
O-RING (.364. x .070)
|
4 |
|
| 2 |
48171 |
O-RING (.364. x .070)
|
4 |
|
| 20 |
26993 |
LOCKWASHER (.312)
|
5 |
superseded
|
| 21 |
68292 |
NUT (.312-18)
|
4 |
superseded
|
| 22 |
39349 |
SCREW (.312-18 x .750) Stainless Steel
|
1 |
|
| 23 |
68259A1 |
HARNESS ASSEMBLY
|
1 |
disc.
|
| 24 |
68260A1 |
HARNESS ASSEMBLY
|
1 |
disc.
|
| 25 |
22627 |
CLIP
|
1 |
disc.
|
| 26 |
37655 |
SCREW (#10-32 x .500)
|
1 |
|
| 27 |
69205 |
C WASHER
|
1 |
superseded
|
| 28 |
68037 |
BRACKET
|
1 |
disc.
|
| 29 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
1 |
|
| 3 |
69582A2 |
VALVE ASSEMBLY Control
|
1 |
disc.
|
| 30 |
68219 |
NUT (#10-32) Stainless Steel
|
1 |
|
| 31 |
63813 |
TERMINAL BLOCK
|
1 |
superseded
|
| 32 |
37655 |
SCREW (#10-32 x .500)
|
2 |
|
| 33 |
62568 |
SCREW (#10-16 x .375)
|
2 |
|
| 34 |
68036 |
STRAP
|
1 |
disc.
|
| 35 |
38601 |
SCREW (.250-28 x 1.250)
|
2 |
|
| 36 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
4 |
|
| 37 |
29598 |
NUT (.250-28) Stainless Steel
|
4 |
|
| 38 |
36901 |
BUMPER
|
2 |
disc.
|
| 39 |
68258A4 |
SOLENOID ASSEMBLY Starter
|
2 |
superseded
|
| 4 |
56500 |
SCREW (.250-28 x 1.250)
|
2 |
|
| 4 |
69697 |
SCREW (.250-28 x 1.50)
|
2 |
disc.
|
| 40 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
4 |
|
| 41 |
68219 |
NUT (#10-32) Stainless Steel
|
4 |
|
| 42 |
26993 |
LOCKWASHER (.312)
|
4 |
superseded
|
| 43 |
68292 |
NUT (.312-18)
|
4 |
superseded
|
| 44 |
46265 |
BOOT
|
4 |
|
| 45 |
75343 |
CLAMP
|
1 |
disc.
|
| 5 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
4 |
|
| 6 |
67458A7 |
SOLENOID (INCLUDES 25-69756 O-RING)
|
1 |
disc.
|
| 7 |
28636 |
SCREW (.250-20 x .750)
|
2 |
|
| 8 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
2 |
|
| 9 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
1 |
|
