Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Outboard / 2 Stroke Carb / V-200 / [5239232 THRU 0C100860] - Cat.# 90-821303 / Transom Bracket (ME-5464486-6073191/MA-5624878-6055032)

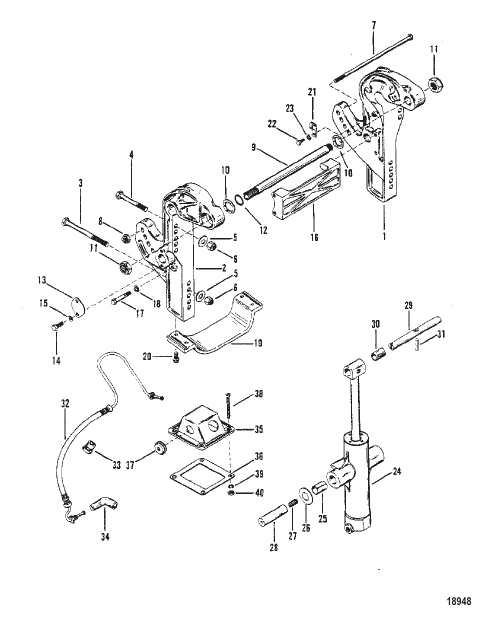

Transom Bracket (ME-5464486-6073191/MA-5624878-6055032)

Parts (47)

#Part NumberDescriptionQtyStatus
- 79879A1 REPAIR KIT 1
1 7476T1 BRACKET Transom (BLACK-PORT) 1 disc.
1 7476T6 BRACKET Transom (GRAY-PORT) 1 disc.
10 88750 WASHER Wave (1.62 x 1.05) 2
11 56041 NUT (.875-14) 1 superseded
11 90068T NUT (1"-14-BLACK) 1 superseded
11 90068T6 NUT (1"-14-GRAY) 1 superseded
12 45711 O-RING (.612 x .103) 1
13 85026T PLATE 2
14 28636 SCREW (.250-20 x .750) 4
15 29245 WASHER (.281 x .500 x .060) Stainless Steel 1 superseded
16 85035T SPACER 1 superseded
17 70732 SCREW (.250-20 x 2.00) 4
18 29245 WASHER (.281 x .500 x .060) Stainless Steel 4 superseded
19 89949A1 PLATE ASSEMBLY 1
2 7478T1 BRACKET Transom (BLACK-STBD) 1 disc.
2 7478T6 BRACKET Transom (GRAY-STBD) 1 disc.
20 89996   SCREW (.250-20 x .875) 4 superseded
21 88512 CLAMP 4
22 88829 SCREW (#10-24 x .500) 4
23 26996 LOCKWASHER (#10) Stainless Steel 4
24 79610A6 TRIM CYLINDER ASSEMBLY (79879A1 REPAIR KIT) 1 disc.
25 86489   BUSHING 2 disc.
26 85022 WASHER (2.00 x 1.06 x .060) 2
27 30316 SPRING 2
28 85020 PIN Pivot 2 superseded
29 85024 SHAFT 1 disc.
3 677552 SCREW (.500-20 x 6.500) 2
30 86637 BEARING 2
31 91862 PIN 1 disc.
32 89024A1 HOSE (PORT) 1
32 89023A2 HOSE (STARBOARD) 1 disc.
33 12602   GROMMET 2 superseded
34 87207 CONNECTOR 1 disc.
35 87871 COVER 1 superseded
36 87775 GASKET 1
37 45507 GROMMET 1
38 36070 SCREW (#10-32 x 1.250) 4 disc.
38 32866 SCREW (#10-32 x 2.00) Stainless Steel 4
39 26996 LOCKWASHER (#10) Stainless Steel 4
4 677551 SCREW (.500-20 x 4.500) 2 superseded
40 68219 NUT (#10-32) Stainless Steel 4
5 28421 WASHER (1.5 x 3.05 x 0.13) Stainless Steel 4 superseded
6 35000 NUT (.500-20) Stainless Steel 4
7 87180 BOLT (.500-20 x 11.00) 1
8 20220 NUT (.500-20) 1 superseded
9 99170A1 TILT TUBE 1 superseded
