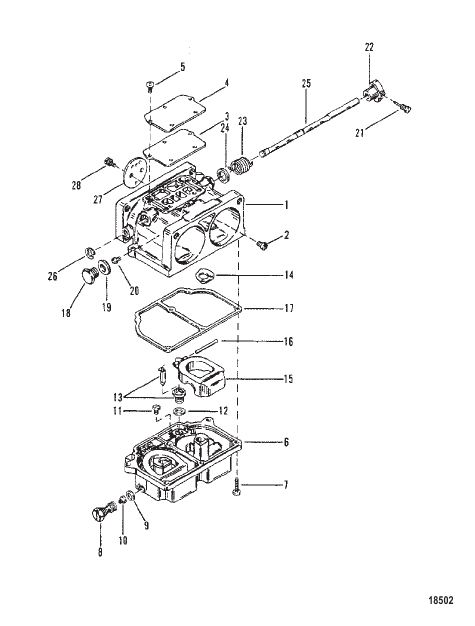

| # | Part Number | Description | Qty | Status |
|---|
| - |
6452 |
GASKET KIT
|
1 |
|
| - |
7826 |
REPAIR KIT
|
1 |
|
| 1 |
5643A61 |
CARBURETOR (WH-14)
|
3 |
disc.
|
| 1 |
5643A68 |
CARBURETOR (WH-16)
|
3 |
disc.
|
| 1 |
5643A65 |
CARBURETOR (TOP)( WH-18)
|
1 |
disc.
|
| 1 |
5643A66 |
CARBURETOR (CENTER)( WH-18)
|
1 |
disc.
|
| 1 |
5643A67 |
CARBURETOR (BOTTOM)( WH-18)
|
1 |
disc.
|
| 1 |
7599A11 |
CARBURETOR (TOP)(WH-20)
|
1 |
disc.
|
| 1 |
7599A12 |
CARBURETOR (CENTER)(WH-20)
|
1 |
disc.
|
| 1 |
7599A13 |
CARBURETOR (BOTTOM)(WH-20)
|
1 |
disc.
|
| 1 |
5643A94 |
CARBURETOR (TOP)(WH-28)
|
1 |
disc.
|
| 1 |
5643A95 |
CARBURETOR (CENTER)(WH-28)
|
1 |
disc.
|
| 1 |
5643A96 |
CARBURETOR (BOTTOM)(WH-28)
|
1 |
disc.
|
| 1 |
9242A29 |
CARBURETOR (TOP)(WH-39)
|
1 |
disc.
|
| 1 |
9242A30 |
CARBURETOR (CENTER)(WH-39)
|
1 |
disc.
|
| 1 |
9242A31 |
CARBURETOR (BOTTOM)(WH-39)
|
1 |
disc.
|
| 1 |
9242A42 |
CARBURETOR (TOP)(WH-46)
|
1 |
superseded
|
| 1 |
9242A43 |
CARBURETOR (CENTER) WH-46)
|
1 |
superseded
|
| 1 |
9242A44 |
CARBURETOR (BOTTOM)(WH-46)
|
1 |
superseded
|
| 10 |
4217 |
JET Main (.062) MAIN FUEL
|
5 |
|
| 10 |
6029 |
JET (.068) MAIN FUEL (5 CYL.ONLY)
|
1 |
|
| 10 |
6207 |
JET (.072) MAIN FUEL
|
6 |
|
| 10 |
3794 |
JET (.074) MAIN FUEL
|
6 |
|
| 10 |
3796 |
JET (.076) MAIN FUEL
|
6 |
|
| 10 |
6680 |
JET (.078) MAIN FUEL
|
6 |
|
| 10 |
6201 |
JET (.080) MAIN FUEL
|
6 |
|
| 10 |
3518 |
JET (.082) MAIN FUEL
|
6 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Screw-Float Pin
|
6 |
|
| 12 |
NSS |
NOT SOLD SEPARATE Gasket-Inlet Needle and Seat
|
6 |
|
| 13 |
7624 |
NEEDLE/SEAT KIT Inlet (WH-3A/11)
|
6 |
|
| 13 |
7824 |
NEEDLE/SEAT ASSEMBLY Inlet
|
6 |
|
| 14 |
NSS |
NOT SOLD SEPARATE Gasket-Nozzle Boss
|
6 |
|
| 15 |
7623 |
FLOAT (WH-3/3A/11)
|
6 |
superseded
|
| 15 |
9267 |
FLOAT
|
6 |
disc.
|
| 16 |
NSS |
NOT SOLD SEPARATE Pin-Float Lever
|
6 |
|
| 17 |
NSS |
NOT SOLD SEPARATE Gasket-Fuel Bowl
|
3 |
|
| 18 |
4541 |
SCREW IDLE AIR BLEED JET
|
6 |
|
| 19 |
NSS |
NOT SOLD SEPARATE Gasket-Bleed Jet Plug
|
6 |
|
| 2 |
6249 |
JET Main (.096) VENT BOWL
|
6 |
|
| 2 |
3517 |
JET (.084) VENT BOWL
|
6 |
|
| 20 |
7394 |
JET (.044) IDLE AIR BLEED
|
6 |
|
| 20 |
5317 |
JET (.046) IDLE AIR BLEED
|
6 |
|
| 20 |
6359 |
JET (.052) IDLE AIR BLEED
|
6 |
|
| 20 |
5213 |
JET Main (.056) IDLE AIR
|
6 |
|
| 21 |
6027 |
SCREW THROTTLE LEVER
|
3 |
disc.
|
| 22 |
67752 |
LEVER (WH-3/3A/11/14/16)
|
3 |
disc.
|
| 22 |
87607 |
LEVER Throttle
|
3 |
disc.
|
| 23 |
NSS |
NOT SOLD SEPARATE Spring-Throttle Return
|
3 |
|
| 24 |
6031 |
SPACER THROTTLE LEVER
|
3 |
disc.
|
| 25 |
6022 |
SHAFT
|
3 |
disc.
|
| 26 |
NSS |
NOT SOLD SEPARATE Ring-Retainer-Throttle Shaft
|
3 |
|
| 27 |
6023 |
VALVE Throttle (WH-3/3A/11/14/16/18/20/22)
|
6 |
disc.
|
| 27 |
9416 |
VALVE Throttle
|
6 |
disc.
|
| 28 |
NSS |
NOT SOLD SEPARATE Screw-Throttle Valve
|
12 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Gasket-Cover Plate
|
3 |
|
| 4 |
6032 |
PLATE
|
3 |
disc.
|
| 5 |
9597 |
SCREW COVER PLATE
|
15 |
disc.
|
| 6 |
NLA |
No Longer Available Fuel Bowl (WH/3A/11)
|
3 |
|
| 6 |
7822 |
BOWL Fuel (WH-14/16)
|
3 |
disc.
|
| 6 |
7823 |
BOWL Fuel (TOP)
|
1 |
disc.
|
| 6 |
7822 |
BOWL Fuel (CENTER/BOTTOM)
|
2 |
disc.
|
| 7 |
NSS |
NOT SOLD SEPARATE Screw-Fuel Bowl
|
18 |
|
| 8 |
6025 |
PLUG MAIN JET
|
6 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Gasket-Main Jet
|
6 |
|
