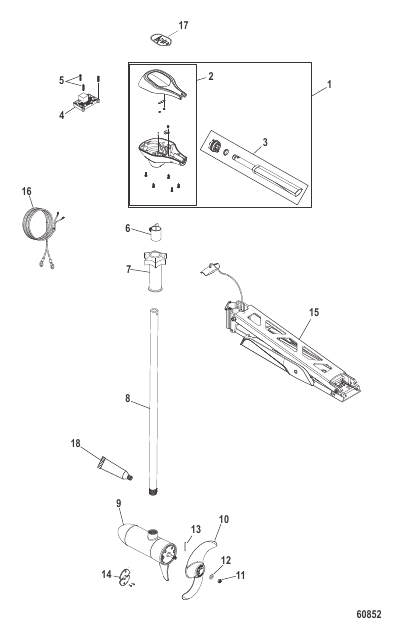

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0131209 |
COMM CAP ASSEMBLY FW, With Seals and Bushing
|
1 |
disc.
|
| - |
8M0131210 |
COMM CAP ASSEMBLY SW, With Seals and Bushing
|
1 |
disc.
|
| 1 |
8M0105543 |
HEAD AND HANDLE ASSEMBLY Freshwater (Black) 1.25 Inch Column
|
1 |
|
| 1 |
8M0105545 |
HEAD AND HANDLE ASSEMBLY Saltwater (White) 1.25 Inch Column
|
1 |
|
| 10 |
8M4002641 |
PROPELLER KIT 3 Blade with Wrench
|
1 |
|
| 11 |
8M0105503 |
HARDWARE KIT, PROPELLER
|
1 |
disc.
|
| 12 |
NSS |
NOT SOLD SEPARATE WASHER
|
1 |
|
| 13 |
MBR10202T |
PIN Prop Drive (.156 x 1.00)
|
1 |
|
| 14 |
8M0105554 |
ANODE
|
1 |
disc.
|
| 15 |
8M0092074 |
BOW MOUNT FW
|
1 |
disc.
|
| 15 |
8M0127652 |
BOW MOUNT SW
|
1 |
disc.
|
| 16 |
8M0058717 |
CABLE ASSEMBLY
|
1 |
disc.
|
| 17 |
8M0105547 |
DECAL SET 45#, Fresh Water
|
1 |
disc.
|
| 17 |
8M0105550 |
DECAL SET 55#, Fresh Water
|
1 |
disc.
|
| 17 |
8M0105553 |
DECAL SET 55#, Salt Water
|
1 |
disc.
|
| 17 |
8M0124164 |
DECAL 70 lb. FW
|
1 |
disc.
|
| 17 |
8M0124166 |
DECAL 70 lb. SW
|
1 |
disc.
|
| 18 |
8M0119628 |
HYSOL EPOXY ADHESIVE 50ml
|
1 |
|
| 2 |
8M0105542 |
HEAD ASSEMBLY Freshwater (Black) 1.25 Inch Column
|
1 |
disc.
|
| 2 |
8M0105544 |
HEAD ASSEMBLY Saltwater (White) 1.25 Inch Column
|
1 |
disc.
|
| 3 |
8M0105539 |
HANDLE ASSEMBLY
|
1 |
|
| 4 |
8M0107519 |
CONTROL BOARD Variable Speed 12 Volt
|
1 |
disc.
|
| 4 |
8M0124141 |
CONTROL BOARD Variable Speed 24 Volt
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE SCREW
|
3 |
|
| 6 |
8M4002640 |
COLLAR, Depth 1.25 inch
|
1 |
disc.
|
| 6 |
8M0124150 |
COLLAR, Depth
|
1 |
disc.
|
| 7 |
8M0124149 |
FRICTION COLLAR
|
1 |
|
| 8 |
8M0127650 |
COLUMN 50 INCH, FW
|
1 |
|
| 8 |
8M0127651 |
COLUMN 50 INCH, SW
|
1 |
disc.
|
| 9 |
NSS |
NOT SOLD SEPARATE MOTOR
|
1 |
|
