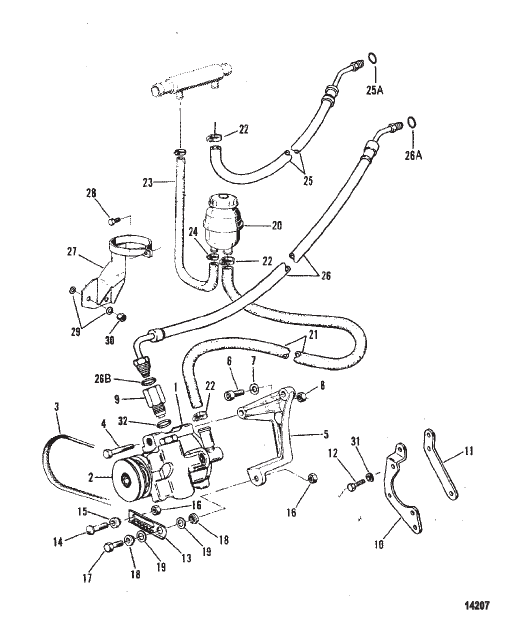

Power Steering Components
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 18825A2 |
НАСОС В СБОРЕ PUMP ASSEMBLY |
1 | superseded |
| 10 | 801763308 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 11 | 801763981 |
СКОБА BRACE |
1 | discontinued |
| 12 | 809913624 |
ВИНТ SCREW |
5 | discontinued |
| 13 | 801763282 |
СТЯГИВАЮЩАЯ СКОБА TIGHTENING BRACE |
1 | discontinued |
| 14 | 801277375 |
ВИНТ SCREW |
1 | discontinued |
| 15 | 801273639 |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 | discontinued |
| 16 | 815088 |
ГАЙКА (M8) NUT (M8) |
1 | superseded |
| 17 | 809913676 |
ВИНТ SCREW |
1 | discontinued |
| 18 | 801261404 |
ВТУЛКА BUSHING |
2 | discontinued |
| 19 | 801108620 |
ШАЙБА WASHER |
2 | discontinued |
| 2 | 801763349 |
ШКИВ PULLEY |
1 | discontinued |
| 20 | 801124680 |
БАК Масляный бак рулевого механизма с усилителем TANK Power Steering Oil Reservoir |
1 | superseded |
| 21 | 816689260 |
РУКАВ (3.6L) [0F306929] & Below HOSE (3.6L) [0F306929] & Below |
1 | discontinued |
| 21 | 816689260 |
РУКАВ (3.0L) [0D725459] & Below HOSE (3.0L) [0D725459] & Below |
1 | discontinued |
| 21 | 816689220 |
РУКАВ (3.6L) [0F306930] & Up HOSE (3.6L) [0F306930] & Up |
1 | superseded |
| 21 | 816689220 |
РУКАВ (3.0L) [0D725460] & Up HOSE (3.0L) [0D725460] & Up |
1 | superseded |
| 22 | 801326638 |
ЗАЖИМ CLAMP |
3 | superseded |
| 23 | 815183 |
РУКАВ (3.6L) [0F306929] & Below HOSE (3.6L) [0F306929] & Below |
1 | discontinued |
| 23 | 815183 |
РУКАВ (3.0L) [0D725459] & Below HOSE (3.0L) [0D725459] & Below |
1 | discontinued |
| 23 | 807935 |
РУКАВ (3.6L) [0F306930] & Up HOSE (3.6L) [0F306930] & Up |
1 | discontinued |
| 23 | 807935 |
РУКАВ (3.0L) [0D725460] & Up HOSE (3.0L) [0D725460] & Up |
1 | discontinued |
| 24 | 809952104 |
ЗАЖИМ CLAMP |
2 | superseded |
| 25 | 80622142 |
ШЛАНГ В СБОРЕ (Общая длина 84.00") Возврат HOSE ASSEMBLY (84.00 Inches Bulk) Return |
1 | |
| 25A | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) O-RING (.301 x .064) |
1 | |
| 26 | 80622216 |
РУКАВ HOSE |
1 | |
| 26A | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) O-RING (.301 x .064) |
1 | |
| 26B | 806232 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.239 x 0.064) O-RING (.239 x .064) |
1 | |
| 27 | 801763309 |
ОПОРА (3.6L) [0F306929] & Below SUPPORT (3.6L) [0F306929] & Below |
1 | discontinued |
| 27 | 801763309 |
ОПОРА (3.0L) [0D725459] & Below SUPPORT (3.0L) [0D725459] & Below |
1 | discontinued |
| 27A | 807934 |
ОПОРА (3.6L) [0F306930] & Up SUPPORT (3.6L) [0F306930] & Up |
1 | discontinued |
| 27A | 807934 |
ОПОРА (3.0L) [0D725460] & Up SUPPORT (3.0L) [0D725460] & Up |
1 | discontinued |
| 28 | 809913466 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
1 | discontinued |
| 29 | 809931044 |
ШАЙБА WASHER |
4 | |
| 3 | 801763283 |
КЛИНОВОЙ РЕМЕНЬ V BELT |
1 | |
| 30 | 400213 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
2 | |
| 31 | 400247 |
СТОПОРНАЯ ШАЙБА (M8) LOCKWASHER (M8) |
5 | |
| 32 | 64068 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 4 | 809912529 |
ВИНТ SCREW |
1 | discontinued |
| 5 | 816338 |
ОПОРА SUPPORT |
1 | discontinued |
| 6 | 809919821 |
ВИНТ SCREW |
2 | discontinued |
| 7 | 809931682 |
ШАЙБА WASHER |
2 | discontinued |
| 8 | 815088 |
ГАЙКА (M8) NUT (M8) |
1 | superseded |
| 9 | 18826 |
ПЕРЕХОДНИК ADAPTER |
1 | discontinued |
