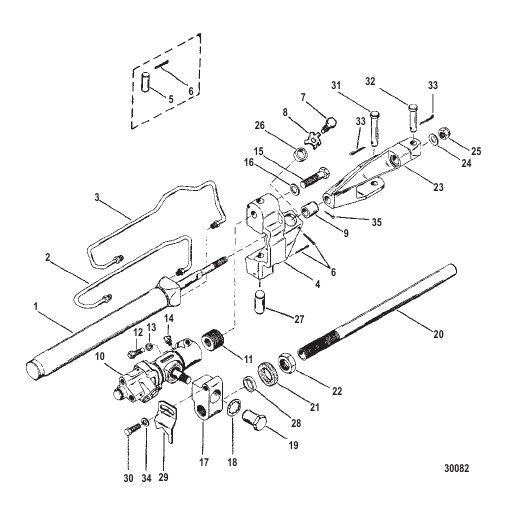

POWER STEERING COMPONENTS
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 57969A12 |
ЦИЛИНДР В СБОРЕ Усилитель (25-58224A1 SEAL REPAIR KIT) CYLINDER ASSEMBLY Booster (25-58224A1 SEAL REPAIR KIT) |
1 | discontinued |
| 10 | 816458A1 |
КЛАПАН В СБОРЕ POWER STEERING (25-58226A1 SEAL REPAIR KIT) VALVE ASSEMBLY POWER STEERING (25-58226A1 SEAL REPAIR KIT) |
1 | discontinued |
| 11 | 88280 |
ПЕРЕХОДНИК BOOSTER VALVE ADAPTER BOOSTER VALVE |
1 | discontinued |
| 12 | 37612 |
ВИНТ (0.375-16 x 1.250) CLAMPING SCREW (.375-16 x 1.250) CLAMPING |
1 | |
| 13 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) CLAMPING SCREW LOCKWASHER (.375) CLAMPING SCREW |
1 | |
| 14 | 67305 |
ФИТИНГ Смазка FITTING Grease |
1 | discontinued |
| 15 | 88281 |
ВИНТ (0.500-20 x 1.750) ADAPTOR SCREW (.500-20 x 1.750) ADAPTOR |
1 | discontinued |
| 16 | 20959 |
ШАЙБА ADAPTOR SCREW WASHER ADAPTOR SCREW |
1 | |
| 17 | 88285 |
ПЕРЕХОДНИК STEERING TUBE ADAPTER STEERING TUBE |
1 | discontinued |
| 18 | 76629 |
СТОПОРНАЯ ШАЙБА Внутренние зубья (0.750) STEERING TUBE ADAPTOR LOCKWASHER Internal Tooth (.750) STEERING TUBE ADAPTOR |
1 | superseded |
| 19 | 55111 |
ГАЙКА STEERIN TUBE ADAPTOR NUT STEERIN TUBE ADAPTOR |
1 | discontinued |
| 2 | 92054 |
ТРУБА EXTENDING TUBE EXTENDING |
1 | |
| 20 | 96511 |
ТРУБА В СБОРЕ STEERING TUBE ASSEMBLY STEERING |
1 | |
| 21 | 88287 |
НАПРАВЛЯЮЩАЯ STEERING TUBE GUIDE STEERING TUBE |
1 | discontinued |
| 22 | 32882 |
ГАЙКА (0.875-14) STEERING TUBE NUT (.875-14) STEERING TUBE |
1 | |
| 23 | 95848A1 |
ВИЛКА В СБОРЕ ROD END CLEVIS ASSEMBLY ROD END |
1 | discontinued |
| 24 | 20086 |
ШАЙБА (0.390 x 0.620 x 0.060) ROD END WASHER (.390 x .620 x .060) ROD END |
1 | |
| 25 | 69254 |
ГАЙКА ROD END NUT ROD END |
1 | |
| 26 | 95803 |
ВТУЛКА PIVOT BUSHING PIVOT |
2 | |
| 27 | 88283 |
ШТИФТ Стопор PIN Retaining |
2 | discontinued |
| 28 | 88286 |
ВТУЛКА STEERING TUBE BUSHING STEERING TUBE |
1 | discontinued |
| 29 | 92766 |
ЗАМОК COUPLER NUT LOCK COUPLER NUT |
1 | discontinued |
| 3 | 92055 |
ТРУБА RETRACTING TUBE RETRACTING |
1 | |
| 30 | 41209 |
ВИНТ COUPLER NUT LOCK SCREW COUPLER NUT LOCK |
1 | discontinued |
| 31 | 89229 |
ШТИФТ Вилка PIN Clevis |
1 | |
| 32 | 52798 |
ШТИФТ Вилка PIN Clevis |
1 | |
| 33 | 46950 |
ШПЛИНТ COTTER PIN |
2 | |
| 34 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь COUPLER NUT LOCK SCREW WASHER (.2656 x .625 x .0625) Stainless Steel COUPLER NUT LOCK SCREW |
1 | |
| 35 | 34212 |
ШПЛИНТ SLEEVE COTTER PIN SLEEVE |
1 | superseded |
| 4 | 94953A1 |
КРОНШТЕЙН В СБОРЕ ADAPTOR BRACKET ASSEMBLY ADAPTOR |
1 | discontinued |
| 5 | 99938 |
ШТИФТ BOOSTER CYLINDER (EARLY STYLE) PIN BOOSTER CYLINDER (EARLY STYLE) |
2 | discontinued |
| 6 | 36377 |
ШПЛИНТ RETAINING PIN (EARLY STYLE) COTTER PIN RETAINING PIN (EARLY STYLE) |
3 | discontinued |
| 7 | 42253 |
БОЛТ BOOSTER CYLINDER (LATER STYLE) BOLT BOOSTER CYLINDER (LATER STYLE) |
2 | superseded |
| 8 | 42254 |
ШАЙБА PIVOT BOLT (LATER STYLE) WASHER PIVOT BOLT (LATER STYLE) |
2 | |
| 9 | 88282 |
РУКАВ ADAPTOR BRACKET SLEEVE ADAPTOR BRACKET |
1 | discontinued |
