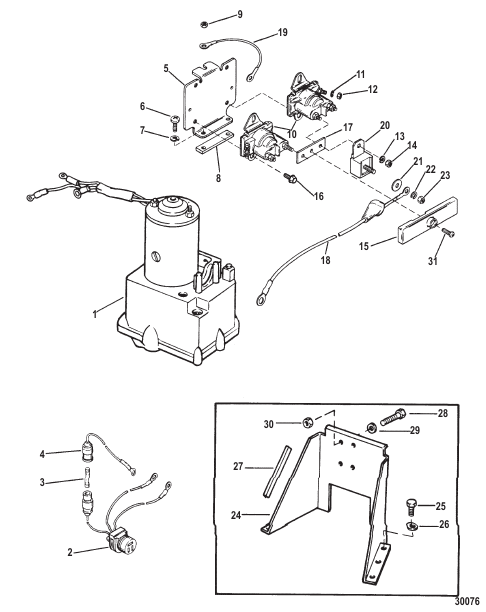

HYDRAULIC PUMP AND BRACKET PRETOLITE PUMP
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 14336A17 |
НАСОС В СБОРЕ Дифферент (PLASTIC RESERVOIR) PUMP ASSEMBLY Trim (PLASTIC RESERVOIR) |
1 | superseded |
| 10 | 96158T |
ЭЛЕКТРОМАГНИТ TRIM PUMP SOLENOID TRIM PUMP |
2 | superseded |
| 11 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь SOLENOID TERMINAL LOCKWASHER (#8) Stainless Steel SOLENOID TERMINAL |
4 | |
| 12 | 26419 |
ГАЙКА (№8-32), латунь SOLENOID TERMINAL NUT (#8-32) Brass SOLENOID TERMINAL |
4 | |
| 13 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь SOLENOID TERMINAL LOCKWASHER (.250) Stainless Steel SOLENOID TERMINAL |
4 | |
| 14 | 94330 |
ГАЙКА (0.250-20), латунь SOLENOID TERMINAL NUT (.250-20) Brass SOLENOID TERMINAL |
4 | |
| 15 | 861680 |
РАЗЪЕДИНИТЕЛЬ STARTER SOLENOID TERMINAL INSULATOR STARTER SOLENOID TERMINAL |
1 | |
| 16 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь STARTER SOLENOID TO MOUNTING BRACKET SCREW (.250-20 x .500) Stainless Steel STARTER SOLENOID TO MOUNTING BRACKET |
4 | |
| 17 | 94275 |
СОЕДИНИТЕЛЬ SOLENOID TO SOLENOID LINK SOLENOID TO SOLENOID |
1 | |
| 18 | 79139A12 |
КАБЕЛЬ В СБОРЕ Красный – положительный CABLE ASSEMBLY Red-Positive |
1 | |
| 18 | 79138A1 |
КАБЕЛЬ В СБОРЕ (NEGATIVE) CABLE ASSEMBLY (NEGATIVE) |
1 | discontinued |
| 19 | 86322A15 |
КАБЕЛЬ В СБОРЕ (5.50"), черный STARTER SOLENOID CABLE ASSEMBLY (5.50 Inches) Black STARTER SOLENOID |
2 | |
| 2 | 79147A3 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | |
| 20 | 79023A10 |
ПРЕДОХРАНИТЕЛЬ В СБОРЕ 110 ампер FUSE ASSEMBLY 110 Ampere |
1 | superseded |
| 21 | 96457 |
ШАЙБА Фенольный (0.27 x 0.81 x 0.062) FUSE TERMINAL WASHER Phenolic (.27 x .81 x .062) FUSE TERMINAL |
1 | |
| 22 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь FUSE TERMINAL LOCKWASHER (.250) Stainless Steel FUSE TERMINAL |
1 | |
| 23 | 21825 |
ГАЙКА (0.250-28) FUSE TERMINAL NUT (.250-28) FUSE TERMINAL |
1 | |
| 24 | 862548A1 |
КОМПЛЕКТ КРОНШТЕЙНА MOUNTING - HYD. PUMP (FLOOR MOUNTED) BRACKET KIT MOUNTING - HYD. PUMP (FLOOR MOUNTED) |
1 | |
| 25 | 59784 |
ВИНТ (0.250-10 x 1.00) PUMP MOUNTING BRACKET ATTACHING (1 inch) SCREW (.250-10 x 1.00) PUMP MOUNTING BRACKET ATTACHING (1 inch) |
6 | |
| 26 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь PUMP MOUNTING BRACKET SCREW WASHER (.281 x .500 x .060) Stainless Steel PUMP MOUNTING BRACKET SCREW |
6 | superseded |
| 27 | 58491 |
КАНАЛ Резиновый (4.00") PUMP MOUNTING BRACKET CHANNEL Rubber (4.00 Inches) PUMP MOUNTING BRACKET |
2 | |
| 28 | 35386 |
ВИНТ (0.312-18 x 1.00) HYDRAULIC PUMP TO MOUNTING BRACKET SCREW (.312-18 x 1.00) HYDRAULIC PUMP TO MOUNTING BRACKET |
4 | |
| 29 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) HYDRAULIC PUMP SCREW LOCKWASHER (.312-24) HYDRAULIC PUMP SCREW |
4 | |
| 3 | 79091 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 20 ампер FUSE 20 Ampere |
1 | superseded |
| 30 | 21908 |
ГАЙКА (0.312-18), с кадмиевым покрытием HYDRAULIC PUMP SCREW NUT (.312-18) Cad Plated HYDRAULIC PUMP SCREW |
4 | |
| 31 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь BOOT ATTACHING SCREW (#10-16 x .625) Stainless Steel BOOT ATTACHING |
1 | |
| 4 | 95084A2 |
КАБЕЛЬ В СБОРЕ FUSE CABLE ASSEMBLY FUSE |
1 | |
| 5 | 94279 |
КРОНШТЕЙН MOUNTING - STARTER SOLENOID BRACKET MOUNTING - STARTER SOLENOID |
1 | discontinued |
| 6 | 48060 |
ВИНТ (0.250-14 x 0.625) MOUNTING BRACKET TO HYDRAULIC PUMP SCREW (.250-14 x .625) MOUNTING BRACKET TO HYDRAULIC PUMP |
2 | discontinued |
| 7 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь MOUNTING BRACKET SCREW LOCKWASHER (.250) Stainless Steel MOUNTING BRACKET SCREW |
2 | |
| 8 | 96784 |
ПРОСТАВКА MOUNTING BRACKET SCREW SPACER MOUNTING BRACKET SCREW |
1 | discontinued |
| 9 | 24656 |
ГАЙКА MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT NUT MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT |
1 | discontinued |
