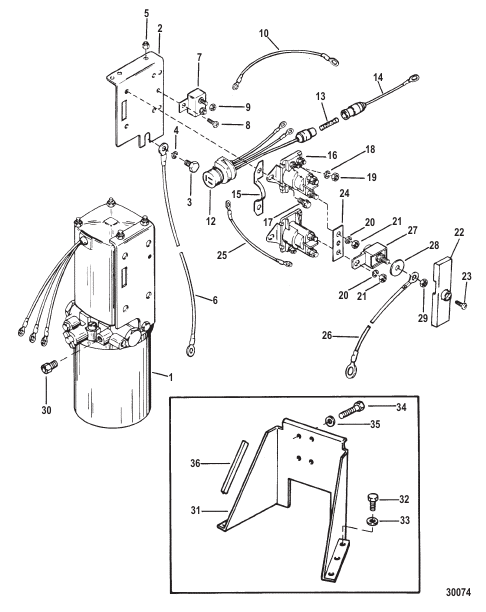

HYDRAULIC PUMP AND BRACKET OILDYNE PUMP/METAL RESERVOIR
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 14336A17 |
НАСОС В СБОРЕ Дифферент PUMP ASSEMBLY Trim |
- | superseded |
| 1 | 14336A20 |
УЗЕЛ НАСОСОВ И ДВИГАТЕЛЕЙ PUMP/MOTOR ASSEMBLY |
1 | superseded |
| 10 | 87379A5 |
ПРОВОД COLENOID TO SOLENOID (RED) WIRE COLENOID TO SOLENOID (RED) |
1 | discontinued |
| 12 | 79147A3 |
ЖГУТ ПРОВОДОВ В СБОРЕ HYDRAULIC PUMP HARNESS ASSEMBLY HYDRAULIC PUMP |
1 | |
| 13 | 79091 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 20 ампер FUSE 20 Ampere |
1 | superseded |
| 14 | 95084A2 |
КАБЕЛЬ В СБОРЕ FUSE CABLE ASSEMBLY FUSE |
1 | |
| 15 | 88075 |
ФИКСАТОР HARNESS TO MOUNTING BRACKET RETAINER HARNESS TO MOUNTING BRACKET |
1 | |
| 16 | 96158T |
ЭЛЕКТРОМАГНИТ TRIM PUMP SOLENOID TRIM PUMP |
2 | superseded |
| 17 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь STARTER SOLENOID TO BRACKET SCREW (.250-20 x .500) Stainless Steel STARTER SOLENOID TO BRACKET |
4 | |
| 18 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь STARTER SOLENOID TERMINAL LOCKWASHER (#8) Stainless Steel STARTER SOLENOID TERMINAL |
4 | |
| 19 | 26419 |
ГАЙКА (№8-32), латунь STARTER SOLENOID TERMINAL NUT (#8-32) Brass STARTER SOLENOID TERMINAL |
4 | |
| 2 | 90426T |
КРОНШТЕЙН MOUNTING - STARTER SOLENOID BRACKET MOUNTING - STARTER SOLENOID |
1 | superseded |
| 20 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь STARTER SOLENOID TERMINAL LOCKWASHER (.250) Stainless Steel STARTER SOLENOID TERMINAL |
4 | |
| 21 | 94330 |
ГАЙКА (0.250-20), латунь STARTER SOLENOID TERMINAL NUT (.250-20) Brass STARTER SOLENOID TERMINAL |
4 | |
| 22 | 861680 |
РАЗЪЕДИНИТЕЛЬ RUBBER - STARTER SOLENOID TERMINAL INSULATOR RUBBER - STARTER SOLENOID TERMINAL |
1 | |
| 23 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь SOLENOID INSULATOR SCREW (#10-16 x .625) Stainless Steel SOLENOID INSULATOR |
1 | |
| 24 | 94275 |
СОЕДИНИТЕЛЬ SOLENOID TO SOLENOID LINK SOLENOID TO SOLENOID |
1 | |
| 25 | 86322A15 |
КАБЕЛЬ В СБОРЕ (5.50"), черный SOLENOID TO SLOENOID CABLE ASSEMBLY (5.50 Inches) Black SOLENOID TO SLOENOID |
1 | |
| 26 | 79139A12 |
КАБЕЛЬ В СБОРЕ Красный – положительный CABLE ASSEMBLY Red-Positive |
1 | |
| 27 | 79023A10 |
ПРЕДОХРАНИТЕЛЬ В СБОРЕ 110 ампер FUSE ASSEMBLY 110 Ampere |
1 | superseded |
| 28 | 96457 |
ШАЙБА Фенольный (0.27 x 0.81 x 0.062) FUSE TERMINAL WASHER Phenolic (.27 x .81 x .062) FUSE TERMINAL |
1 | |
| 29 | 21825 |
ГАЙКА (0.250-28) FUSE TERMINAL NUT (.250-28) FUSE TERMINAL |
1 | |
| 3 | 90285 |
ВИНТ (0.312-18 x 0.625) MOUNTING BRACKET SCREW (.312-18 x .625) MOUNTING BRACKET |
1 | |
| 30 | 89029 |
HYDRAULIC PUMP ADAPTER HYDRAULIC PUMP |
1 | |
| 31 | 862548A1 |
КОМПЛЕКТ КРОНШТЕЙНА MOUNTING - HYD. PUMP (FLOOR MOUNTED) BRACKET KIT MOUNTING - HYD. PUMP (FLOOR MOUNTED) |
1 | |
| 32 | 59784 |
ВИНТ (0.250-10 x 1.00) PUMP MOUNTING BRACKET ATTACHING SCREW (.250-10 x 1.00) PUMP MOUNTING BRACKET ATTACHING |
6 | |
| 33 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь PUMP MOUNTING BRACKET SCREW WASHER (.281 x .500 x .060) Stainless Steel PUMP MOUNTING BRACKET SCREW |
6 | superseded |
| 34 | 35386 |
ВИНТ (0.312-18 x 1.00) HYDRAULIC PUMP TO MOUNTING BRACKET SCREW (.312-18 x 1.00) HYDRAULIC PUMP TO MOUNTING BRACKET |
2 | |
| 35 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) HYDRAULIC PUMP SCREW LOCKWASHER (.312-24) HYDRAULIC PUMP SCREW |
2 | |
| 36 | 58491 |
КАНАЛ Резиновый (4.00") PUMP MOUNTING BRACKET CHANNEL Rubber (4.00 Inches) PUMP MOUNTING BRACKET |
2 | |
| 4 | 56720 |
ШАЙБА (0.330 x 0.750 x 0.060), нержавеющая сталь MOUNTING BRACKET SCREW WASHER (.330 x .750 x .060) Stainless Steel MOUNTING BRACKET SCREW |
1 | |
| 5 | 29488 |
ГАЙКА (№10-32) MOUNTING BRACKET TO HYDRAULIC PUMP NUT (#10-32) MOUNTING BRACKET TO HYDRAULIC PUMP |
2 | superseded |
| 6 | 79138A9 |
КАБЕЛЬ В СБОРЕ (6.00 фт.), черный – отрицательный CABLE ASSEMBLY (6.00 Feet) Black-Negative |
1 | |
| 7 | 79149 |
ВЫКЛЮЧАТЕЛЬ Цепь – 20 ампер BREAKER Circuit - 20 Ampere |
1 | superseded |
| 8 | 807754 |
ВИНТ (№10-24 x 0.38) CIRCUIT BREAKER SCREW (#10-24 x .38) CIRCUIT BREAKER |
1 | superseded |
| 9 | 45076 |
ГАЙКА (№10-32), латунь CIRCUIT BREAKER TERMINAL NUT (#10-32) Brass CIRCUIT BREAKER TERMINAL |
2 |
