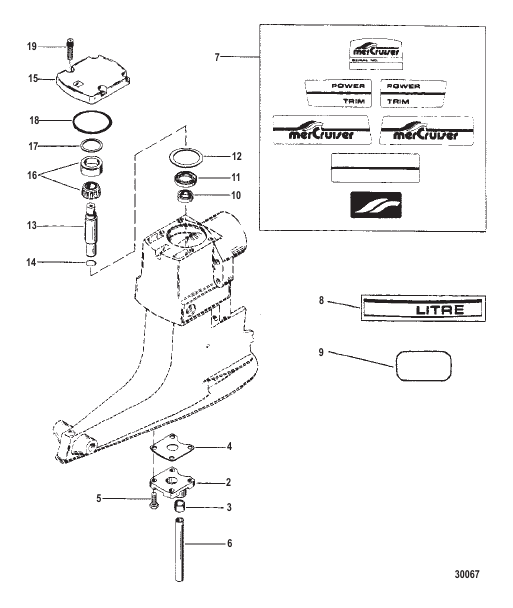

DRIVESHAFT HOUSING AND DRIVESHAFT
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 32511A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| - | 803101T1 |
РЕМОНТНЫЙ КОМПЛЕКТ Передача – верхний ведущий вал (1.98 Ratio)(20/24 Gear) REPAIR KIT Gear - Upper Driveshaft (1.98 Ratio)(20/24 Gear) |
1 | |
| - | 803112T1 |
РЕМОНТНЫЙ КОМПЛЕКТ Передача – верхний ведущий вал (1.65 Ratio)(24/24 Gear) REPAIR KIT Gear - Upper Driveshaft (1.65 Ratio)(24/24 Gear) |
1 | |
| - | 803114T1 |
РЕМОНТНЫЙ КОМПЛЕКТ Передача – верхний ведущий вал (1.84 Ratio)(17/19 Gear) REPAIR KIT Gear - Upper Driveshaft (1.84 Ratio)(17/19 Gear) |
1 | |
| - | 803115T1 |
РЕМОНТНЫЙ КОМПЛЕКТ Передача – верхний ведущий вал (1.32 Ratio)(16/20 Gear) REPAIR KIT Gear - Upper Driveshaft (1.32 Ratio)(16/20 Gear) |
1 | |
| - | 803116T1 |
РЕМОНТНЫЙ КОМПЛЕКТ Передача – верхний ведущий вал (1.50 Ratio)(20/22 Gear) REPAIR KIT Gear - Upper Driveshaft (1.50 Ratio)(20/22 Gear) |
1 | |
| 10 | 965031 |
УПЛОТНЕНИЕ Масло DRIVE SHAFT HOUSING - LOWER SEAL Oil DRIVE SHAFT HOUSING - LOWER |
1 | |
| 11 | 32511 |
УПЛОТНЕНИЕ Масло GEAR CHAMBER - DRIVE SHAFT HOUSING SEAL Oil GEAR CHAMBER - DRIVE SHAFT HOUSING |
1 | |
| 12 | 36178A1 |
НАБОР ПРОКЛАДОК BEARING CUP SHIM SET BEARING CUP |
AR | superseded |
| 13 | 55796 |
ВЕДУЩИЙ ВАЛ UPPER DRIVESHAFT UPPER |
1 | |
| 14 | 55801 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО UPPER DRIVE SHAFT O-RING UPPER DRIVE SHAFT |
1 | |
| 15 | 94998A4 |
КРЫШКА В СБОРЕ TOP (BLACK) COVER ASSEMBLY TOP (BLACK) |
1 | |
| 16 | 61100A1 |
БЛОК ПОДШИПНИКА DRIVE SHAFT (CUP Dimension 1.939) (Component of Gear Repair Kits No. 1-5) BEARING ASSEMBLY DRIVE SHAFT (CUP Dimension 1.939) (Component of Gear Repair Kits No. 1-5) |
1 | |
| 16 | 32575T1 |
БЛОК ПОДШИПНИКА DRIVE SHAFT (CUP Dimension 1.78) BEARING ASSEMBLY DRIVE SHAFT (CUP Dimension 1.78) |
1 | |
| 17 | 45691A1 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА BEARING CUP TO TOP COVER (CUP Dimension 1.939) SHIM BEARING CUP TO TOP COVER (CUP Dimension 1.939) |
AR | |
| 17 | 32563A1 |
НАБОР ПРОКЛАДОК BEARING CUP TO TOP COVER (CUP Dimension 1.78) SHIM SET BEARING CUP TO TOP COVER (CUP Dimension 1.78) |
AR | |
| 18 | 32546 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО TOP COVER SEALING O-RING TOP COVER SEALING |
1 | |
| 19 | 98794 |
ВИНТ (0.375-16 x 1.00) TOP COVER SCREW (.375-16 x 1.00) TOP COVER |
4 | superseded |
| 2 | 42724A3 |
КРЫШКА ASSEMBLY, WATER POCKET COVER COVER ASSEMBLY, WATER POCKET COVER |
1 | |
| 3 | 36557 |
УПЛОТНЕНИЕ RUBBER - WATER POCKET COVER SEAL RUBBER - WATER POCKET COVER |
1 | |
| 4 | 558101 |
ПРОКЛАДКА WATER POCKET COVER GASKET WATER POCKET COVER |
1 | |
| 5 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь WATER POCKET COVER TO DRIVE SHAFT HOUSING SCREW (.250-20 x .875) Stainless Steel WATER POCKET COVER TO DRIVE SHAFT HOUSING |
4 | |
| 6 | 54236 |
ТРУБА WATER POCKET COVER TUBE WATER POCKET COVER |
1 | |
| 7 | 13682A90 |
НАБОР НАКЛЕЕК (BLACK) DECAL SET (BLACK) |
1 | |
| 7 | 13682A90 |
НАБОР НАКЛЕЕК (COUNTER ROTATION) DECAL SET (COUNTER ROTATION) |
1 | |
| 7 | 17906A88 |
НАБОР НАКЛЕЕК (OYSTER) DECAL SET (OYSTER) |
1 | discontinued |
| 8 | 43699 |
НАКЛЕЙКА DRIVE SHAFT HOUSING (3.8LITRE) DECAL DRIVE SHAFT HOUSING (3.8LITRE) |
1 | discontinued |
| 9 | 13722A10 |
НАБОР НАКЛЕЕК (350/454 MAGNUM) DECAL SET (350/454 MAGNUM) |
1 | discontinued |
| 9 | 13722A11 |
НАБОР НАКЛЕЕК Модель двигателя (120/2.5L/140/3.0L/165/170/180/190) DECAL SET Engine Model (120/2.5L/140/3.0L/165/170/180/190) |
1 | discontinued |
| 9 | 13722A12 |
НАБОР НАКЛЕЕК (175/185/205/200/230/260) DECAL SET (175/185/205/200/230/260) |
1 | discontinued |
| 9 | 16416A87 |
НАКЛЕЙКА (320/320 EFI) DECAL (320/320 EFI) |
1 | discontinued |
| 9 | 13722A13 |
НАБОР НАКЛЕЕК Модель двигателя (3.7L/3.7L-LX/4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L) DECAL SET Engine Model (3.7L/3.7L-LX/4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L) |
1 | discontinued |
