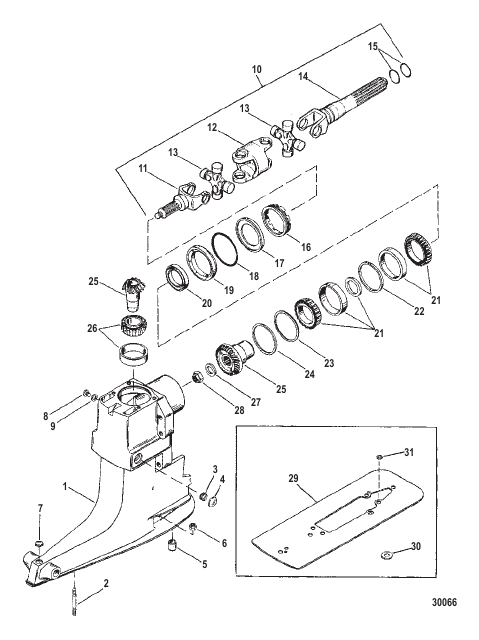

DRIVESHAFT HOUSING AND DRIVE GEARS
Parts (55)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 32511A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| - | 19543T1 |
КОМПЛЕКТ КАБЕЛЯ Переключение передач CABLE KIT Shift |
1 | superseded |
| - | 803097T1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Транец (with Exhaust Bellow) SEAL KIT Transom (with Exhaust Bellow) |
1 | |
| - | 803098T1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Транец (with Exhaust Tube) SEAL KIT Transom (with Exhaust Tube) |
1 | |
| - | 803101T1 |
РЕМОНТНЫЙ КОМПЛЕКТ Передача – верхний ведущий вал (1.98 Ratio)(20/24 Gear) REPAIR KIT Gear - Upper Driveshaft (1.98 Ratio)(20/24 Gear) |
1 | |
| - | 803112T1 |
РЕМОНТНЫЙ КОМПЛЕКТ Передача – верхний ведущий вал (1.65 Ratio)(24/24 Gear) REPAIR KIT Gear - Upper Driveshaft (1.65 Ratio)(24/24 Gear) |
1 | |
| - | 803114T1 |
РЕМОНТНЫЙ КОМПЛЕКТ Передача – верхний ведущий вал (1.84 Ratio)(17/19 Gear) REPAIR KIT Gear - Upper Driveshaft (1.84 Ratio)(17/19 Gear) |
1 | |
| - | 803115T1 |
РЕМОНТНЫЙ КОМПЛЕКТ Передача – верхний ведущий вал (1.32 Ratio)(16/20 Gear) REPAIR KIT Gear - Upper Driveshaft (1.32 Ratio)(16/20 Gear) |
1 | |
| - | 803116T1 |
РЕМОНТНЫЙ КОМПЛЕКТ Передача – верхний ведущий вал (1.50 Ratio)(20/22 Gear) REPAIR KIT Gear - Upper Driveshaft (1.50 Ratio)(20/22 Gear) |
1 | |
| 1 | 9412A18 |
КОРПУС В СБОРЕ Карданный вал (BLACK) HOUSING ASSEMBLY Driveshaft (BLACK) |
1 | discontinued |
| 10 | 814819A2 |
УНИВЕРСАЛЬНЫЙ ШАРНИР UNIVERSAL JOINT |
1 | |
| 11 | 460201 |
ВИЛКА GEAR END YOKE GEAR END |
1 | superseded |
| 12 | 393831 |
ГНЕЗДО Центральный SOCKET Center |
1 | |
| 13 | 75832T |
КРЕСТОВИНА И ПОДШИПНИК [B-418818] & Below CROSS AND BEARING [B-418818] & Below |
2 | superseded |
| 13 | 75832T1 |
КРЕСТОВИНА И ПОДШИПНИК [B-418819] & Up CROSS AND BEARING [B-418819] & Up |
2 | |
| 14 | 59830A7 |
ВИЛКА В СБОРЕ COUPLING END YOKE ASSEMBLY COUPLING END |
1 | |
| 15 | 29845 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.924 x 0.103) O-RING (.924 x .103) |
2 | superseded |
| 16 | 8168112 |
ФИКСАТОР RETAINER |
1 | superseded |
| 17 | 35983 |
КОЛЬЦО RING |
1 | |
| 18 | 70937 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 19 | 66081A2 |
СТАКАН В СБОРЕ CARRIER ASSEMBLY |
1 | superseded |
| 2 | 56295 |
ШПИЛЬКА (0.437 x 2.69) STUD (.437 x 2.69) |
2 | |
| 20 | 823894 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 21 | 35988A12 |
КОМПЛЕКТ ПОДШИПНИКОВ Ролик BEARING KIT Roller |
1 | |
| 21 | 35988A3 |
БЛОК ПОДШИПНИКА Конический ролик (1.32 Ratio Only) BEARING ASSEMBLY Tapered Roller (1.32 Ratio Only) |
1 | |
| 21 | 35988A9 |
БЛОК ПОДШИПНИКА (1.50 Heavy Duty Ratio Only) BEARING ASSEMBLY (1.50 Heavy Duty Ratio Only) |
1 | discontinued |
| 22 | 35985 |
ПРОСТАВКА SPACER |
1 | |
| 22 | 66824 |
ПРОСТАВКА (1.32 Ratio and 1.50 Heavy Duty Ratio Only) SPACER (1.32 Ratio and 1.50 Heavy Duty Ratio Only) |
1 | |
| 22 | 66824 |
ПРОСТАВКА (1.32 Ratio Only) SPACER (1.32 Ratio Only) |
1 | |
| 22 | 66824 |
ПРОСТАВКА (1.50 Heavy Duty Ratio Only) SPACER (1.50 Heavy Duty Ratio Only) |
1 | |
| 23 | 35980A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | |
| 24 | 71013 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА Проставка SHIM Spacer |
1 | superseded |
| 25 | 55778A3 |
КОМПЛЕКТ ШЕСТЕРЕН (Component of Gear Repair Kit 803101T 1) (1.98 RATIO) (20-24 GEAR RATIO) GEAR KIT (Component of Gear Repair Kit 803101T 1) (1.98 RATIO) (20-24 GEAR RATIO) |
AR | |
| 25 | 45814A5 |
КОМПЛЕКТ ШЕСТЕРЕН (Component of Gear Repair Kit 803112T 1) (1.65 RATIO) (24-24 GEAR RATIO) GEAR KIT (Component of Gear Repair Kit 803112T 1) (1.65 RATIO) (24-24 GEAR RATIO) |
AR | |
| 25 | 75325A3 |
КОМПЛЕКТ ШЕСТЕРЕН (Component of Gear Repair Kit 803114T 1) (1.84 RATIO) (17-19 GEAR RATIO) GEAR KIT (Component of Gear Repair Kit 803114T 1) (1.84 RATIO) (17-19 GEAR RATIO) |
AR | |
| 25 | 18411A2 |
КОМПЛЕКТ ШЕСТЕРЕН (Component of Gear Repair Kit 803116T 1) (1.50 RATIO) (20-22 GEAR RATIO) GEAR KIT (Component of Gear Repair Kit 803116T 1) (1.50 RATIO) (20-22 GEAR RATIO) |
AR | |
| 25 | 66773A3 |
НАБОР ШЕСТЕРЕН (Component of Gear Repair Kit 803115T 1) (1.32 RATIO) (16-20 GEAR RATIO) GEAR SET (Component of Gear Repair Kit 803115T 1) (1.32 RATIO) (16-20 GEAR RATIO) |
AR | superseded |
| 25 | 18411A4 |
КОМПЛЕКТ ШЕСТЕРЕН С подшипниками и прокладками (Replaces Heavy Duty Kit) (1.50 RATIO) (20-22 RATIO) GEAR KIT With Bearings And Shims (Replaces Heavy Duty Kit) (1.50 RATIO) (20-22 RATIO) |
AR | |
| 26 | 35990A1 |
БЛОК ПОДШИПНИКА Ролик (TIMKEN CONE #89449/CUP #89410) (ALSO USED ON EARLY STYLE 1.50 RATIOS) BEARING ASSEMBLY Roller (TIMKEN CONE #89449/CUP #89410) (ALSO USED ON EARLY STYLE 1.50 RATIOS) |
AR | |
| 26 | 66818A1 |
БЛОК ПОДШИПНИКА Конический ролик (TIMKEN CONE #43131/CUP #43300) (1.32 RATIO ONLY) BEARING ASSEMBLY Tapered Roller (TIMKEN CONE #43131/CUP #43300) (1.32 RATIO ONLY) |
AR | |
| 26 | 32573A1 |
БЛОК ПОДШИПНИКА Ролик (TIMKEN CONE #24780/CUP #24720) (1.50 RATIO AND 1.50 HEAVY DUTY) BEARING ASSEMBLY Roller (TIMKEN CONE #24780/CUP #24720) (1.50 RATIO AND 1.50 HEAVY DUTY) |
AR | |
| 27 | 45810 |
ШАЙБА WASHER |
1 | |
| 28 | 22339 |
ГАЙКА (.625-18) NUT (.625-18) |
1 | superseded |
| 29 | 42512A2 |
КОМПЛЕКТ БРЫЗГОВИКА (OPTIONAL) SPLASH PLATE KIT (OPTIONAL) |
1 | discontinued |
| 3 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
1 | superseded |
| 30 | 29395 |
ШАЙБА (0.390 x 1.00 x 0.06) (OPTIONAL) WASHER (.390 x 1.00 x .06) (OPTIONAL) |
1 | superseded |
| 31 | 455771 |
УПЛОТНЕНИЕ (OPTIONAL) SEAL (OPTIONAL) |
1 | superseded |
| 4 | 32652 |
СФЕРИЧЕСКАЯ ЗАГЛУШКА (7/8 inch O.D.) WELCH PLUG (7/8 inch O.D.) |
1 | |
| 4 | 42682 |
СФЕРИЧЕСКАЯ ЗАГЛУШКА (1-1/4 inch O.D.) WELCH PLUG (1-1/4 inch O.D.) |
1 | |
| 5 | 32632 |
ВТУЛКА BUSHING |
1 | discontinued |
| 6 | 859116 |
ГАЙКА (0.437-20) NUT (.437-20) |
3 | |
| 7 | 47579 |
ПРОБКА (1/2 inch DIA. HOLE) (BLACK) PLUG (1/2 inch DIA. HOLE) (BLACK) |
1 | |
| 7 | 47591 |
ШТОК (1/2 inch DIA. HOLE) (OYSTER) ROD (1/2 inch DIA. HOLE) (OYSTER) |
1 | discontinued |
| 8 | 79953Q2 |
КОМПЛЕКТ ВИНТОВ (0.375-16 x 0.250), слив SCREW KIT (.375-16 x .250) Drain |
1 | superseded |
| 9 | 191832 |
ШАЙБА WASHER |
1 | superseded |
