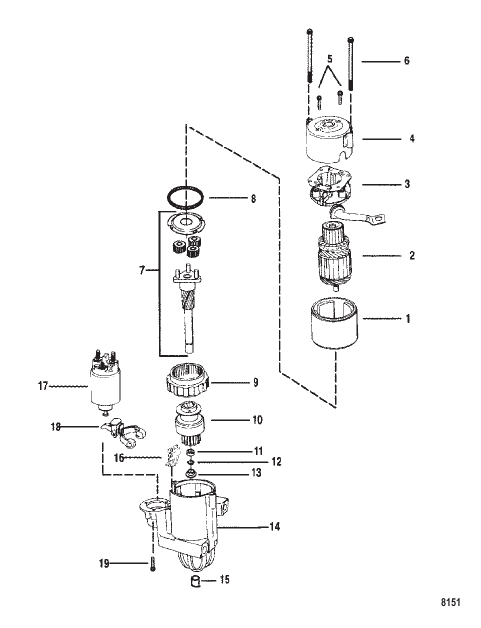

Starter Motor Delco Remy PG-260 -2.87 Inch Diameter End Cap
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 806963A2 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | superseded |
| 10 | 809456 |
ПРИВОД DRIVE |
1 | discontinued |
| 11 | 33291 |
ВТУЛКА COLLAR |
1 | discontinued |
| 12 | 33290 |
КОЛЬЦО Стопор RING Retaining |
1 | discontinued |
| 13 | 809457 |
УПОРНОЕ КОЛЬЦО THRUST COLLAR |
1 | discontinued |
| 14 | 809458 |
КОРПУС Привод HOUSING Drive |
1 | superseded |
| 15 | 814476 |
ВТУЛКА BUSHING |
1 | discontinued |
| 16 | 809465 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 17 | 809462 |
ЭЛЕКТРОМАГНИТ SOLENOID |
1 | superseded |
| 18 | 809464 |
РЫЧАГ LEVER |
1 | discontinued |
| 19 | 809466 |
ВИНТ SCREW |
3 | discontinued |
| 2 | 809454 |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 3 | 809453 |
ДЕРЖАТЕЛЬ Щетка и пружина HOLDER Brush And Spring |
1 | discontinued |
| 4 | 809452 |
РАМА FRAME |
1 | discontinued |
| 5 | 809451 |
ВИНТ SCREW |
2 | discontinued |
| 6 | 809450 |
СКВОЗНОЙ БОЛТ THRU BOLT |
2 | discontinued |
| 7 | 809461 |
ВАЛ И ПЕРЕДАЧА SHAFT AND GEAR |
1 | discontinued |
| 8 | 809460 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 9 | 809455 |
ПЕРЕДАЧА GEAR |
1 | discontinued |
