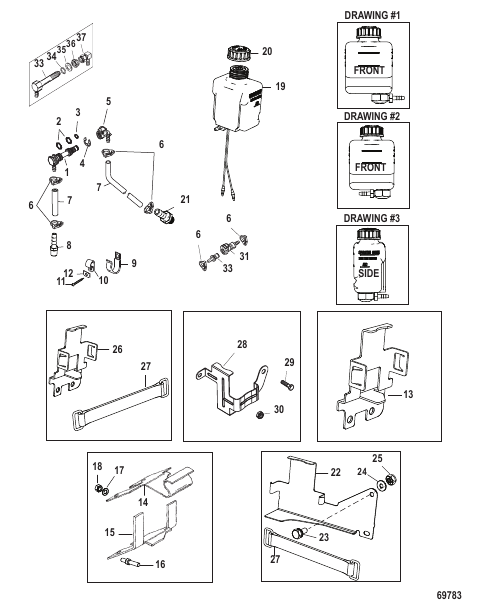

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
861150T02 |
FITTING ASSEMBLY 90 Degree (Applications With Gear Lube Bottle)
|
1 |
|
| 1 |
861623A2 |
PLUG ASSEMBLY Bulk Head (Applications Without Gear Lube Bottle)
|
1 |
|
| 10 |
23567 |
CLIP
|
1 |
|
| 11 |
60605 |
SCREW (#10-16 x .750)
|
1 |
|
| 12 |
8M0084613 |
C-WASHER
|
1 |
|
| 13 |
860065A1 |
BRACKET KIT Oil Bottle - (3.0L/3.6L/4.2L Diesel 7.4L/7.4LX/454/502) (See Illustration for Proper Part Identification)
|
1 |
|
| 14 |
806292T1 |
BRACKET (See Illustration for Proper Part Identification)
|
1 |
disc.
|
| 15 |
807025T |
BRACKET (See Illustration for Proper Part Identification)
|
1 |
disc.
|
| 16 |
8M2004610 |
STUD (3/16-16 x 2.25) (4.3LX/5.7L/5.7LX)(CARB)
|
2 |
|
| 17 |
20553 |
WASHER (.406 x .734 x .063)
|
2 |
|
| 18 |
32219 |
NUT (.375-16)
|
2 |
|
| 19 |
8M0075708 |
LUBE BOTTLE (FITTING POINTING TOWARD RIGHT SIDE)(SEE DRAWING #1)
|
1 |
|
| 19 |
8M0075709 |
LUBE BOTTLE (FITTING POINTING TOWARD LEFT SIDE)(SEE DRAWING #2)
|
1 |
|
| 19 |
8M0075710 |
RESERVOIR Lube Monitor (FITTING POINTING TOWARD FRONT SIDE)(SEE DRAWING #3)
|
1 |
|
| 2 |
201951 |
O-RING (.487 x .103)
|
2 |
|
| 20 |
8067271 |
CAP Drive Lube Monitor
|
1 |
|
| 21 |
808624 |
CONNECTOR
|
1 |
|
| 22 |
NSS |
NOT SOLD SEPARATE Bracket
|
1 |
|
| 23 |
657461 |
SCREW AND LOCKWASHER (.250-20 x .625) 4.3L / 4.3LH / 4.3L EFI
|
1 |
|
| 24 |
69057 |
WASHER (.281 x .734 x .063) 4.3L / 4.3LH / 4.3L EFI
|
1 |
|
| 25 |
8267088 |
NUT (.250-20) 4.3L / 4.3LH / 4.3L EFI
|
1 |
|
| 26 |
860065A1 |
BRACKET KIT Oil Bottle 3.0L / 5.7L / 5.7L EFI / 350 MAG. MPI
|
1 |
|
| 27 |
808023T |
STRAP Bracket
|
1 |
|
| 28 |
865175T |
BRACKET (4.3L/5.0L/5.7L/350 MAG/MX6.2L)(SEE COMPONENT ILLISTRATION)
|
1 |
|
| 29 |
828552 |
SCREW (.375-16 x .500)
|
1 |
|
| 3 |
627021 |
O-RING (.301 x .070) (Applications With Gear Lube Bottle Only)
|
1 |
|
| 30 |
8267098 |
NUT (.250-20) Stainless Steel
|
1 |
|
| 31 |
865379 |
FITTING Female
|
1 |
|
| 32 |
865191 |
FITTING Male
|
1 |
|
| 33 |
18922 |
CONNECTOR
|
1 |
|
| 34 |
201951 |
O-RING (.487 x .103)
|
1 |
|
| 35 |
861854 |
WASHER (.453 x .750 x .032) Stainless Steel
|
1 |
|
| 36 |
35053 |
NUT (.437-20)
|
1 |
superseded
|
| 37 |
18923 |
FITTING
|
1 |
|
| 4 |
87843 |
E RING (Included With 861623A 2 Only)
|
1 |
|
| 5 |
861163 |
QUICK CONNECTOR (90 Degree)
|
1 |
|
| 6 |
415825 |
CLAMP Nylon
|
4 |
|
| 7 |
8M0040618 |
HOSE 62 Inch Bulk
|
2 |
superseded
|
| 8 |
16739 |
CONNECTOR
|
1 |
superseded
|
| 9 |
642351 |
J CLIP
|
1 |
superseded
|
