| # | Part Number | Description | Qty | Status |
|---|
| 1 |
865380A13 |

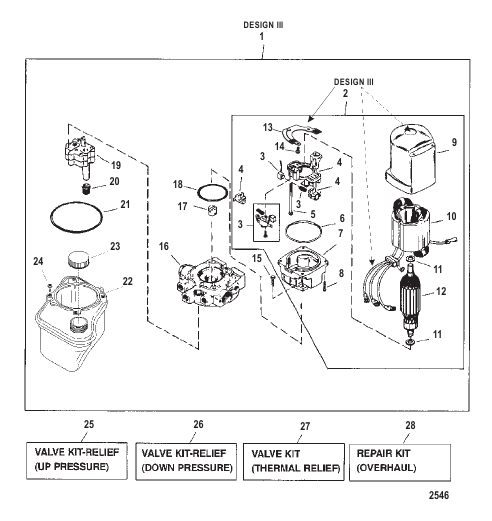

PUMP/MOTOR ASSEMBLY Trim - 12 Volt
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE FIELD AND FRAME ASSEMBLY
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE WASHER-Thrust
|
2 |
|
| 12 |
NSS |
NOT SOLD SEPARATE ARMATURE
|
1 |
|
| 13 |
892608 |
BOARD ASSEMBLY Circuit - Radio Frequency Interference Filter
|
1 |
|
| 14 |
NSS |
NOT SOLD SEPARATE SCREW
|
2 |
|
| 15 |
823444 |
SCREW
|
2 |
|
| 16 |
808728T |
ADAPTER ASSEMBLY
|
1 |
|
| 17 |
803852 |
COUPLING
|
1 |
|
| 18 |
89498 |
O-RING (Motor End)
|
1 |
|
| 19 |
18529 |
PUMP ASSEMBLY (With Screws)
|
1 |
|
| 2 |
891736T |
MOTOR ASSEMBLY (Complete)
|
1 |
|
| 20 |
89496 |
FILTER
|
2 |
|
| 21 |
17645 |
O-RING (Reservoir End)
|
1 |
|
| 22 |
883166A2 |
RESERVOIR KIT (With Filters-Ref 20 And O Ring-Ref 21)
|
1 |
|
| 23 |
865448A01 |
CAP Oil Reservoir Oil Reservoir
|
1 |
superseded
|
| 24 |
883167 |
SCREW (#8-32)
|
4 |
|
| 25 |
812498A1 |
VALVE KIT Relief (UP Pressure)
|
1 |
|
| 26 |
812499A1 |
VALVE KIT Relief (Down Pressure)
|
1 |
|
| 27 |
95353A1 |
VALVE KIT Thermal Relief (Thermal Relief)
|
1 |
|
| 28 |
18545A1 |
REPAIR KIT (Overhaul)
|
1 |
|
| 3 |
891737 |
BRUSH KIT
|
1 |
|
| 4 |
891738 |
HOLDER ASSEMBLY Brushes
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE SCREW
|
2 |
|
| 6 |
NSS |
NOT SOLD SEPARATE O-RING
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE END CAP ASSEMBLY
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE SCREW
|
4 |
|
| 9 |
NSS |
NOT SOLD SEPARATE COVER ASSEMBLY-(With Bearing)
|
1 |
|
