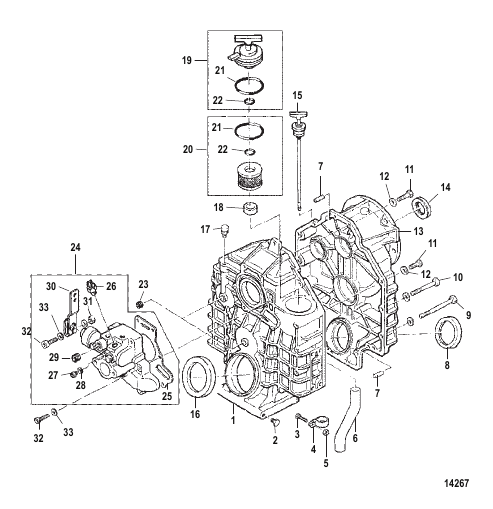

TRANSMISSION (V-DRIVE)(INBOARD)
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 863745T2 |
ТРАНСМИССИЯ (Передаточное число 1.5:1) TRANSMISSION (1.5:1 Ratio) |
1 | discontinued |
| - | 863745T3 |
ТРАНСМИССИЯ (Передаточное число 2.0:1) TRANSMISSION (2.0:1 Ratio) |
1 | discontinued |
| - | 863745T4 |
ТРАНСМИССИЯ (Передаточное число 2.5:1) TRANSMISSION (2.5:1 Ratio) |
1 | discontinued |
| 1 | 811961 |
КОРПУС Боковой блок управления См. каталог деталей MerCruiser, 95-24 HOUSING Control Side Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 10 | 813284 |
ВИНТ См. каталог деталей MerCruiser, 95-24 SCREW Refer to MerCruiser Parts Bulletin 95-24 |
2 | discontinued |
| 11 | 813282 |
ВИНТ SCREW |
12 | discontinued |
| 12 | 813281 |
СТОПОРНАЯ ШАЙБА См. каталог деталей MerCruiser, 95-24 LOCKWASHER Refer to MerCruiser Parts Bulletin 95-24 |
16 | discontinued |
| 13 | 811960 |
КОРПУС Входная сторона См. каталог деталей MerCruiser, 95-24 HOUSING Input Side Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 14 | 813286 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 15 | 811964 |
ЩУП DIPSTICK |
1 | |
| 16 | 811956 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 17 | 813280 |
ВЕНТИЛЯЦИОННЫЙ КОЛПАЧОК VENT CAP |
1 | |
| 18 | 813303 |
ШАЙБА См. каталог деталей MerCruiser, 95-24 WASHER Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 19 | 811963 |
КОМПЛЕКТ КРЫШЕК (В КОМПЛЕКТЕ ПОЗ. №21 И 22) См. каталог деталей MerCruiser 95-24 COVER KIT (INCLUDES REF. #21 & 22) Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 2 | 811966 |
ПРОБКА См. каталог деталей MerCruiser, 95-24 PLUG Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 20 | 815419 |
КОМПЛЕКТ ФИЛЬТРА ЖИДКОСТИ FLUID FILTER KIT |
1 | superseded |
| 21 | 813407 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 22 | 813406 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО См. каталог деталей MerCruiser, 95-24 O-RING Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 23 | 813302 |
ПРОБКА PLUG |
2 | discontinued |
| 24 | 813295 |
БЛОК УПРАВЛЕНИЯ CONTROL BLOCK |
1 | discontinued |
| 25 | 813301 |
ПРОКЛАДКА GASKET |
1 | |
| 26 | 813300 |
ПЕРЕКЛЮЧАТЕЛЬ SWITCH |
1 | |
| 27 | 813296 |
ВИНТ SCREW |
1 | discontinued |
| 28 | 811958 |
ШАЙБА См. каталог деталей MerCruiser, 95-24 WASHER Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 29 | 811959 |
ПРОБКА См. каталог деталей MerCruiser, 95-24 PLUG Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 3 | 811953 |
ВИНТ См. каталог деталей MerCruiser, 95-24 SCREW Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 30 | 813298 |
РЫЧАГ Переключение передач См. каталог деталей MerCruiser, 95-24 LEVER Shift Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 31 | 813299 |
ГАЙКА См. каталог деталей MerCruiser, 95-24 NUT Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 32 | 813294 |
ВИНТ SCREW |
7 | discontinued |
| 33 | 813293 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
7 | discontinued |
| 4 | 811965 |
ЗАЖИМ См. каталог деталей MerCruiser, 95-24 CLAMP Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 5 | 811954 |
ГАЙКА См. каталог деталей MerCruiser, 95-24 NUT Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 6 | 811962 |
РУКАВ Впуск См. каталог деталей MerCruiser, 95-24 HOSE Suction Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 7 | 813291 |
ШТИФТ Штифт См. каталог деталей MerCruiser, 95-24 PIN Dowel Refer to MerCruiser Parts Bulletin 95-24 |
2 | discontinued |
| 8 | 811957 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 9 | 813285 |
ВИНТ См. каталог деталей MerCruiser, 95-24 SCREW Refer to MerCruiser Parts Bulletin 95-24 |
2 | discontinued |
