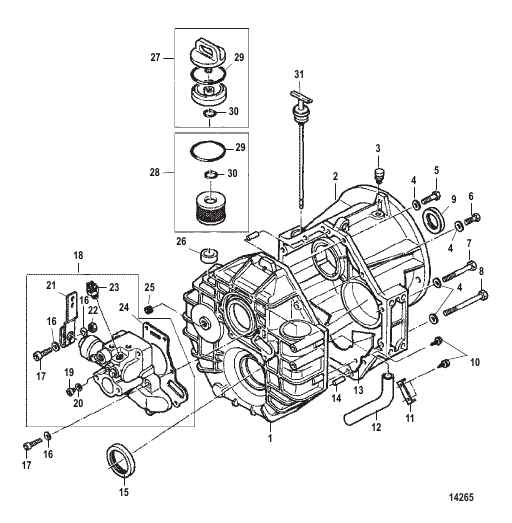

TRANSMISSION (DOWN ANGLE)(INBOARD)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 863744T2 |
ТРАНСМИССИЯ (Передаточное число 1.5:1) TRANSMISSION (1.5:1 Ratio) |
1 | discontinued |
| - | 18901A1 |
ТРАНСМИССИЯ (Передаточное число 2.0:1) TRANSMISSION (2.0:1 Ratio) |
1 | superseded |
| - | 863744T4 |
ТРАНСМИССИЯ (Передаточное число 2.50:1) TRANSMISSION (2.50:1 Ratio) |
1 | superseded |
| 1 | 813278 |
КОРПУС См. каталог деталей MerCruiser, 95-24 HOUSING Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 10 | 813287 |
ВИНТ См. каталог деталей MerCruiser, 95-24 SCREW Refer to MerCruiser Parts Bulletin 95-24 |
4 | discontinued |
| 11 | 813288 |
ПЛАСТИНА Стопор PLATE Retaining |
1 | discontinued |
| 12 | 813289 |
РУКАВ См. каталог деталей MerCruiser, 95-24 HOSE Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 13 | 813290 |
ПЛАСТИНА Отражательный щиток См. каталог деталей MerCruiser, 95-24 PLATE Baffle Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 14 | 813291 |
ШТИФТ Штифт См. каталог деталей MerCruiser, 95-24 PIN Dowel Refer to MerCruiser Parts Bulletin 95-24 |
2 | discontinued |
| 15 | 813292 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 16 | 813293 |
СТОПОРНАЯ ШАЙБА См. каталог деталей MerCruiser, 95-24 LOCKWASHER Refer to MerCruiser Parts Bulletin 95-24 |
7 | discontinued |
| 17 | 813294 |
ВИНТ SCREW |
7 | discontinued |
| 18 | 813295 |
БЛОК УПРАВЛЕНИЯ CONTROL BLOCK |
1 | discontinued |
| 19 | 813296 |
ВИНТ SCREW |
1 | discontinued |
| 2 | 813279 |
КРЫШКА См. каталог деталей MerCruiser, 95-24 COVER Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 20 | 813297 |
ШАЙБА См. каталог деталей MerCruiser, 95-24 WASHER Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 21 | 813298 |
РЫЧАГ Переключение передач См. каталог деталей MerCruiser, 95-24 LEVER Shift Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 22 | 813299 |
ГАЙКА См. каталог деталей MerCruiser, 95-24 NUT Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 23 | 813300 |
ПЕРЕКЛЮЧАТЕЛЬ SWITCH |
1 | |
| 24 | 813301 |
ПРОКЛАДКА GASKET |
1 | |
| 25 | 813302 |
ПРОБКА См. каталог деталей MerCruiser, 95-24 PLUG Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 26 | 813303 |
ШАЙБА См. каталог деталей MerCruiser, 95-24 WASHER Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 27 | 811940 |
КОМПЛЕКТ КРЫШЕК (В КОМПЛЕКТЕ ПОЗ. №29 и 30) См. каталог деталей MerCruiser, 95-24 COVER KIT (INCLUDES REF. #29 and 30) Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 28 | 815419 |
КОМПЛЕКТ ФИЛЬТРА ЖИДКОСТИ FLUID FILTER KIT |
1 | superseded |
| 29 | 813407 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 3 | 813280 |
ВЕНТИЛЯЦИОННЫЙ КОЛПАЧОК VENT CAP |
1 | |
| 30 | 813406 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 31 | 813305 |
ЩУП DIPSTICK |
1 | discontinued |
| 4 | 813281 |
СТОПОРНАЯ ШАЙБА См. каталог деталей MerCruiser, 95-24 LOCKWASHER Refer to MerCruiser Parts Bulletin 95-24 |
12 | discontinued |
| 5 | 813282 |
ВИНТ SCREW |
5 | discontinued |
| 6 | 813283 |
ВИНТ См. каталог деталей MerCruiser, 95-24 SCREW Refer to MerCruiser Parts Bulletin 95-24 |
1 | discontinued |
| 7 | 813284 |
ВИНТ См. каталог деталей MerCruiser, 95-24 SCREW Refer to MerCruiser Parts Bulletin 95-24 |
4 | discontinued |
| 8 | 813285 |
ВИНТ См. каталог деталей MerCruiser, 95-24 SCREW Refer to MerCruiser Parts Bulletin 95-24 |
2 | discontinued |
| 9 | 813286 |
УПЛОТНЕНИЕ SEAL |
1 |
