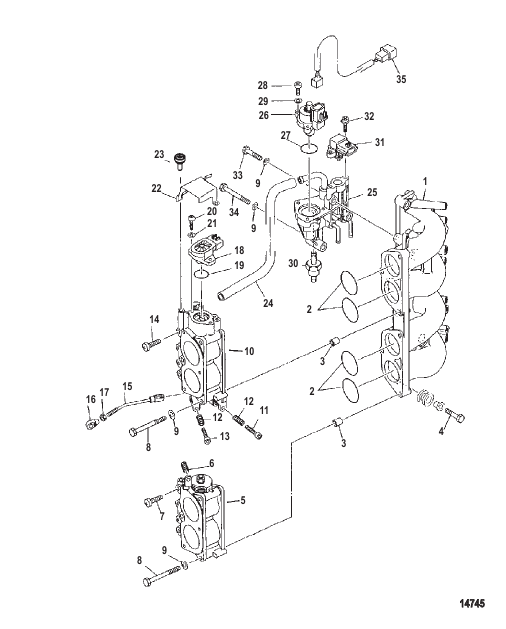

Intake
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 880883T1 |
УПРАВЛЯЮЩИЙ КЛАПАН В СБОРЕ CONTROL VALVE ASSEMBLY |
1 | discontinued |
| - | 881440T1 |
ВПУСК В СБОРЕ [0T408999] & Below INTAKE ASSEMBLY [0T408999] & Below |
1 | superseded |
| - | 881440T2 |
ВПУСК В СБОРЕ [0T409000] & Up INTAKE ASSEMBLY [0T409000] & Up |
1 | superseded |
| 1 | 880886T |
КОЛЛЕКТОР MANIFOLD |
1 | discontinued |
| 10 | 881441T1 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ [0T408999] & Below THROTTLE BODY ASSEMBLY [0T408999] & Below |
1 | superseded |
| 10 | 881441T3 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ [0T409000] & Up THROTTLE BODY ASSEMBLY [0T409000] & Up |
1 | discontinued |
| 11 | 881442 |
ВИНТ SCREW |
1 | discontinued |
| 12 | 881444 |
ПРУЖИНА SPRING |
2 | discontinued |
| 13 | 881443 |
ВИНТ SCREW |
1 | discontinued |
| 14 | 881445 |
ВИНТ [0T408999] & Below SCREW [0T408999] & Below |
2 | discontinued |
| 15 | 881514 |
ШАРНИРНОЕ СОЕДИНЕНИЕ LINK JOINT |
1 | discontinued |
| 16 | 881515 |
ШАРНИРНОЕ СОЕДИНЕНИЕ LINK JOINT |
1 | discontinued |
| 17 | 83763M |
ГАЙКА NUT |
1 | discontinued |
| 18 | 880884T |
ДАТЧИК Дроссельная заслонка SENSOR Throttle |
1 | discontinued |
| 19 | 881504 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 2 | 881513 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
4 | |
| 20 | 881502 |
ВИНТ SCREW |
2 | superseded |
| 21 | 881450 |
ШАЙБА WASHER |
2 | |
| 22 | 881516 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 23 | 881971A1 |
ВИНТ SCREW |
3 | discontinued |
| 24 | 879194021 |
РУКАВ HOSE |
1 | discontinued |
| 25 | 881446T |
КОРПУС BODY |
1 | discontinued |
| 26 | 881447T |
КЛАПАН УПРАВЛЕНИЯ CONTROL VALVE |
1 | discontinued |
| 27 | 881448 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 28 | 881449 |
ВИНТ (M4 x 12) SCREW (M4 x 12) |
3 | superseded |
| 29 | 881450 |
ШАЙБА WASHER |
3 | |
| 3 | 881512 |
ШТИФТ Штифт PIN Dowel |
4 | discontinued |
| 30 | 881501T |
ФИЛЬТР FILTER |
1 | |
| 31 | 880885T |
ДАТЧИК Давление SENSOR Pressure |
1 | discontinued |
| 32 | 881509 |
ВИНТ (M5 x 15) SCREW (M5 x 15) |
2 | discontinued |
| 33 | 881505 |
БОЛТ (M6 x 24) BOLT (M6 x 24) |
1 | discontinued |
| 34 | 881506 |
БОЛТ (M6 x 60) BOLT (M6 x 60) |
2 | discontinued |
| 35 | 881517T1 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 4 | 881507 |
БОЛТ (M6 x 25) BOLT (M6 x 25) |
3 | discontinued |
| 5 | 881441T2 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ [0T408999] & Below THROTTLE BODY ASSEMBLY [0T408999] & Below |
1 | superseded |
| 5 | 881441T4 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ [0T409000] & Up THROTTLE BODY ASSEMBLY [0T409000] & Up |
1 | discontinued |
| 6 | 881444 |
ПРУЖИНА SPRING |
1 | discontinued |
| 7 | 881445 |
ВИНТ [0T408999] & Below SCREW [0T408999] & Below |
2 | discontinued |
| 8 | 881510 |
БОЛТ (M8 x 70) BOLT (M8 x 70) |
6 | discontinued |
| 9 | 881508 |
ШАЙБА WASHER |
9 | discontinued |
