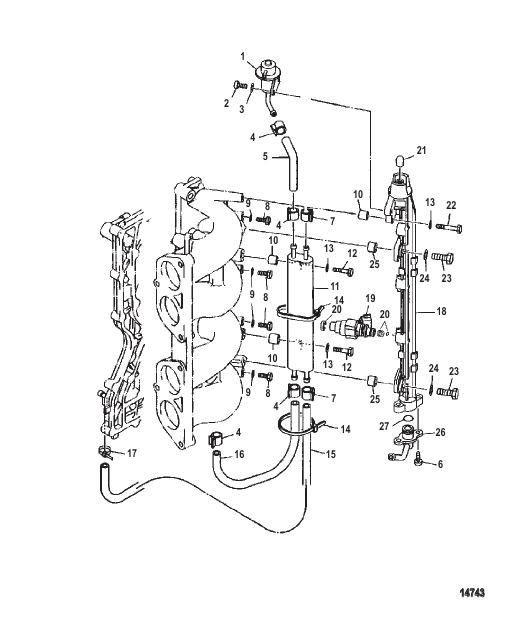

Fuel Injection Nozzle
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 858732T01 |
КОМПЛЕКТ ПРОКЛАДОК [0T408999] & Below GASKET SET [0T408999] & Below |
1 | superseded |
| - | 858732T02 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0T409000] & Up GASKET SET Powerhead [0T409000] & Up |
1 | discontinued |
| - | 881440T1 |
ВПУСК В СБОРЕ [0T408999] & Below INTAKE ASSEMBLY [0T408999] & Below |
1 | superseded |
| - | 881440T2 |
ВПУСК В СБОРЕ [0T409000] & Up INTAKE ASSEMBLY [0T409000] & Up |
1 | superseded |
| 1 | 880888T |
РЕГУЛЯТОР Давление топлива REGULATOR Fuel Pressure |
1 | superseded |
| 10 | 888260 |
ВТУЛКА COLLAR |
3 | discontinued |
| 11 | 881527T |
ОХЛАДИТЕЛЬ COOLER |
1 | superseded |
| 12 | 881507 |
БОЛТ (M6 x 25) BOLT (M6 x 25) |
2 | discontinued |
| 13 | 881533 |
ШАЙБА WASHER |
3 | discontinued |
| 14 | 69355 |
ЛЕНТОЧНЫЙ ХОМУТ (5.50") TIE STRAP (5.50 Inches) |
2 | superseded |
| 15 | 881536 |
РУКАВ HOSE |
1 | discontinued |
| 16 | 881529 |
РУКАВ HOSE |
1 | discontinued |
| 17 | 879650 |
ЗАЖИМ CLAMP |
1 | superseded |
| 18 | 881518T |
ПОДАЮЩАЯ ТРУБА DELIVERY PIPE |
1 | discontinued |
| 19 | 880887T1 |
ФОРСУНКА INJECTOR |
4 | discontinued |
| 2 | 881524 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
2 | discontinued |
| 20 | 885183A1 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНОГО КОЛЬЦА O-RING KIT |
1 | discontinued |
| 21 | 881520 |
ПРОБКА CAP |
1 | discontinued |
| 22 | 881534 |
БОЛТ (M6 x 10) BOLT (M6 x 10) |
1 | discontinued |
| 23 | 881532 |
БОЛТ (M8 x 45) BOLT (M8 x 45) |
2 | discontinued |
| 24 | 881508 |
ШАЙБА WASHER |
2 | discontinued |
| 25 | 881526 |
ВТУЛКА COLLAR |
2 | discontinued |
| 26 | 881521T |
НИППЕЛЬ NIPPLE |
1 | discontinued |
| 27 | 881522 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 3 | 881525 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 4 | 881531 |
ЗАЖИМ CLIP |
4 | discontinued |
| 5 | 881528 |
РУКАВ HOSE |
1 | discontinued |
| 6 | 881509 |
ВИНТ (M5 x 15) SCREW (M5 x 15) |
2 | discontinued |
| 7 | 881530 |
ЗАЖИМ CLIP |
2 | discontinued |
| 8 | 84088M |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
4 | discontinued |
| 9 | 827610 |
ПРОКЛАДКА GASKET |
4 | discontinued |
