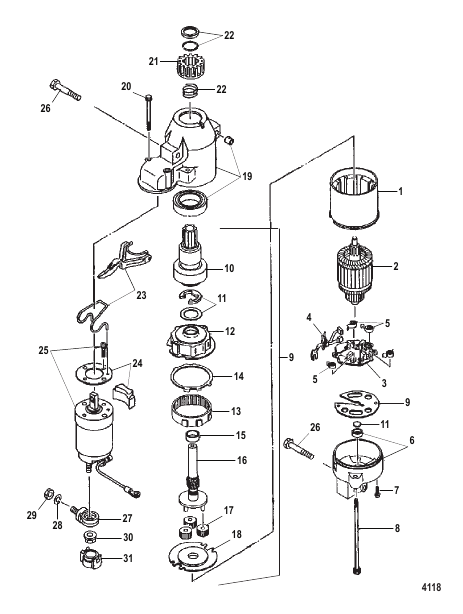

Starter Motor
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 881368T2 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | discontinued |
| 1 | 804314T |
СТАТОР STATOR |
1 | discontinued |
| 10 | 804322 |
МУФТА СЦЕПЛЕНИЯ CLUTCH |
1 | discontinued |
| 11 | 804330 |
КОМПЛЕКТ ШАЙБ WASHER KIT |
1 | discontinued |
| 12 | 804324 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 13 | 804326 |
ВЕНЦОВАЯ ШЕСТЕРНЯ RING GEAR |
1 | discontinued |
| 14 | 804327 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 15 | 804325 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 16 | 804323 |
ВАЛ Шестерня SHAFT Pinion |
1 | discontinued |
| 17 | 804329001 |
ПЕРЕДАЧА Промежуточная шестерня GEAR Idler |
3 | discontinued |
| 18 | 804328 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 19 | 804331T |
КРЫШКА COVER |
1 | discontinued |
| 2 | 804313T |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 20 | 804336 |
БОЛТ (M6 x 52) BOLT (M6 x 52) |
2 | discontinued |
| 21 | 804319 |
ШЕСТЕРНЯ PINION |
1 | discontinued |
| 22 | 804320 |
НАБОР СТОПОРА Шестерня STOP SET Pinion |
1 | discontinued |
| 23 | 804332 |
КОМПЛЕКТ РЫЧАГА LEVER KIT |
1 | discontinued |
| 24 | 804334 |
КРЫШКА COVER |
1 | discontinued |
| 25 | 881371T1 |
РЕЛЕ Стартер RELAY Starter |
1 | discontinued |
| 26 | 804605 |
БОЛТ (M8 x 45) BOLT (M8 x 45) |
3 | discontinued |
| 27 | 881373001 |
КЛЕММА TERMINAL |
1 | discontinued |
| 28 | 881377 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 29 | 82382M |
ГАЙКА NUT |
1 | discontinued |
| 3 | 881369T1 |
ДЕРЖАТЕЛЬ В СБОРЕ Щетка HOLDER ASSEMBLY Brush |
1 | discontinued |
| 30 | 881372 |
ГАЙКА NUT |
1 | discontinued |
| 31 | 881374 |
КРЫШКА COVER |
1 | discontinued |
| 4 | 804316 |
НАБОР ЩЕТОК BRUSH SET |
1 | |
| 5 | 804317 |
ПРУЖИНА SPRING |
4 | discontinued |
| 6 | 881370T |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 7 | 804337 |
ВИНТ (M4 x 16) SCREW (M4 x 16) |
2 | discontinued |
| 8 | 804335 |
СКВОЗНОЙ БОЛТ (M6 x 120) THRU BOLT (M6 x 120) |
2 | discontinued |
| 9 | 804321T1 |
КОМПЛЕКТ ШЕСТЕРЕН GEAR KIT |
1 | discontinued |
