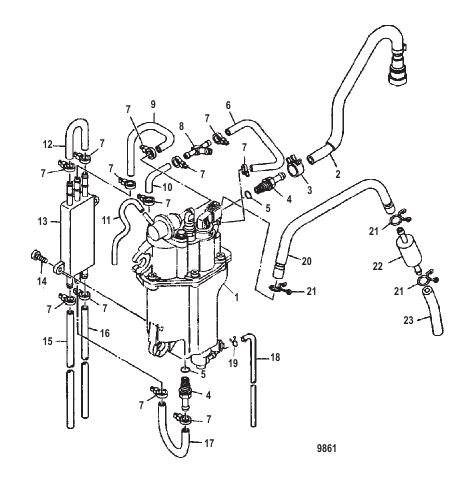

Vapor Separator Hose Routings
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 881315A03 |
ПАРОСЕПАРАТОР В СБОРЕ В сборе VAPOR SEPARATOR ASSEMBLY Complete |
1 | superseded |
| 10 | 804162016 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 11 | 804162007 |
ТРУБОПРОВОД [1B226999] & Below TUBING [1B226999] & Below |
1 | discontinued |
| 11 | 804162021 |
ТРУБОПРОВОД [1B227000] & Up TUBING [1B227000] & Up |
1 | discontinued |
| 12 | 804162010 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 13 | 888259001 |
ОХЛАДИТЕЛЬ COOLER |
1 | discontinued |
| 14 | 881326007 |
ВИНТ SCREW |
2 | discontinued |
| 15 | 804162011 |
ТРУБОПРОВОД [1B226999] & Below TUBING [1B226999] & Below |
1 | discontinued |
| 15 | 804162022 |
ТРУБОПРОВОД [1B227000] & Up TUBING [1B227000] & Up |
1 | discontinued |
| 16 | 804162012 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 17 | 804162009 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 18 | 804162013 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 19 | 881530010 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 2 | 804162015 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 20 | 804162014 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 21 | 881530011 |
ЗАЖИМ CLAMP |
3 | discontinued |
| 22 | 892758001 |
СЕТЧАТЫЙ ФИЛЬТР STRAINER |
1 | discontinued |
| 23 | 804162017 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 3 | 881530009 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 4 | 881558002 |
ФИТИНГ Прямой FITTING Straight |
2 | discontinued |
| 5 | 885183001 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 6 | 804162006 |
ТРУБОПРОВОД [1B226999] & Below TUBING [1B226999] & Below |
1 | discontinued |
| 6 | 804162020 |
ТРУБОПРОВОД [1B227000] & Up TUBING [1B227000] & Up |
1 | discontinued |
| 7 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
12 | |
| 8 | 881558003 |
ФИТИНГ Тройник FITTING Tee |
1 | discontinued |
| 9 | 804162008 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
