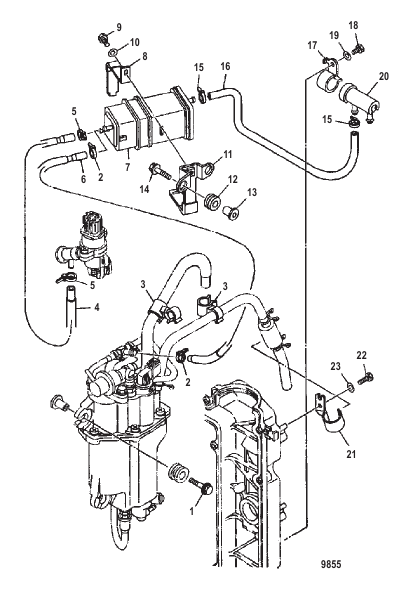

Fuel Hose Routings
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 852776018 |
БОЛТ И ШАЙБА BOLT AND WASHER |
3 | discontinued |
| 10 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 11 | 881542005 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 12 | 804304 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 13 | 811078M |
ВТУЛКА COLLAR |
2 | discontinued |
| 14 | 804270 |
БОЛТ (M6 x 28) BOLT (M6 x 28) |
2 | discontinued |
| 15 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
2 | |
| 16 | 804162003 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 17 | 881530007 |
ЗАЖИМ CLAMP |
1 | superseded |
| 18 | 84088M |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
1 | discontinued |
| 19 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
2 | |
| 20 | 888279001 |
ФИЛЬТР Топливо FILTER Fuel |
1 | |
| 21 | 881542003 |
КРОНШТЕЙН BRACKET |
1 | superseded |
| 22 | 91772M |
БОЛТ BOLT |
1 | discontinued |
| 23 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 3 | 881530005 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 4 | 804162005 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 5 | 879650 |
ЗАЖИМ CLAMP |
2 | superseded |
| 6 | 804162002 |
ТРУБОПРОВОД [1B226999] & Below TUBING [1B226999] & Below |
1 | discontinued |
| 6 | 804162018 |
ТРУБОПРОВОД [1B227000] & Up TUBING [1B227000] & Up |
1 | discontinued |
| 7 | 896354 |
БАЧОК В СБОРЕ CANNISTER ASSEMBLY |
1 | discontinued |
| 8 | 881542004 |
ДЕРЖАТЕЛЬ HOLDER |
1 | discontinued |
| 9 | 826957M |
БОЛТ BOLT |
1 | discontinued |
