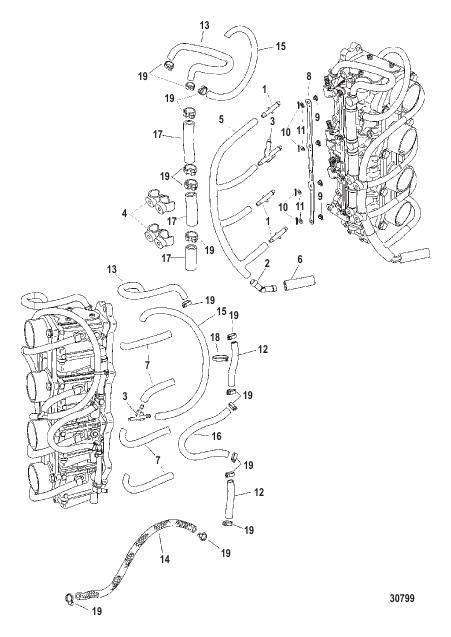

FUEL LINES
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 822771 |
СОЕДИНИТЕЛЬ CONNECTOR |
3 | |
| 10 | 880850 |
ШПЛИНТ COTTER PIN |
4 | |
| 11 | 8542592 |
ШАЙБА WASHER |
4 | |
| 12 | 856607 |
РУКАВ HOSE |
2 | |
| 13 | 856609 |
РУКАВ HOSE |
1 | |
| 14 | 856611 |
ШЛАНГ И РУКАВ HOSE and SLEEVE |
1 | |
| 15 | 880773 |
РУКАВ HOSE |
1 | discontinued |
| 16 | 856613 |
РУКАВ HOSE |
1 | |
| 17 | 880772 |
РУКАВ HOSE |
3 | discontinued |
| 18 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | |
| 19 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
AR | |
| 2 | 878404 |
ФИТИНГ 45 градусов FITTING 45 Degree |
1 | |
| 3 | 878593 |
Y-ОБРАЗНОЕ СОЕДИНЕНИЕ Y-CONNECTOR |
1 | |
| 4 | 878425 |
ЗАЖИМ CLIP |
2 | |
| 5 | 878181 |
РУКАВ HOSE |
1 | discontinued |
| 6 | 85682239 |
ТРУБОПРОВОД (Общая длина 17.00") (Обрез. до 3-1/2") TUBING (17.00 Inches Bulk) (Cut to 3-1/2 IN) |
1 | |
| 7 | 87822990 |
РУКАВ HOSE |
4 | superseded |
| 8 | 8566101 |
ТЯГА LINKAGE |
1 | discontinued |
| 9 | 803896 |
ВТУЛКА BUSHING |
4 |
