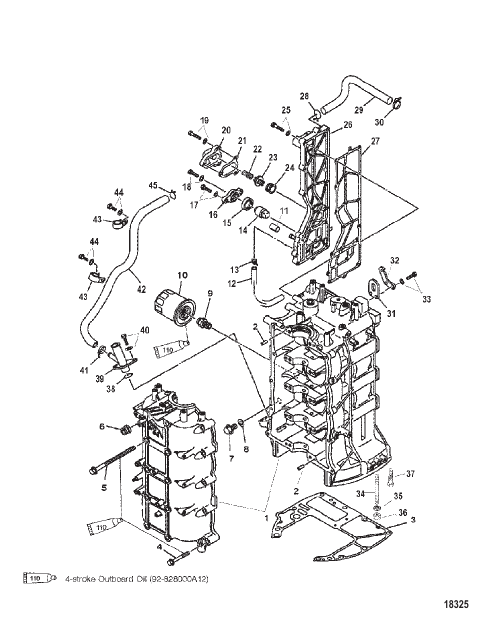

Cylinder Block and Crankcase
Parts (48)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 804070T2 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0T178500] & Up POWERHEAD ASSEMBLY [0T178500] & Up |
1 | superseded |
| - | 883548T02 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0T178499] & Below POWERHEAD ASSEMBLY [0T178499] & Below |
1 | discontinued |
| - | 804345A02 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| 1 | 804071T2 |
БЛОК ЦИЛИНДРА CYLINDER BLOCK |
1 | superseded |
| 10 | 822626Q2 |
ФИЛЬТР Масло FILTER Oil |
1 | superseded |
| 11 | 881600 |
ПРОБКА Резина CAP Rubber |
1 | discontinued |
| 12 | 804078 |
РУКАВ HOSE |
1 | discontinued |
| 13 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Анод Заказ крышки NOT SOLD SEPARATE Anode Order Cover |
1 | |
| 15 | 804086 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 16 | 804085 |
КРЫШКА COVER |
1 | discontinued |
| 17 | 827207 |
БОЛТ (M8 x 25) BOLT (M8 x 25) |
2 | discontinued |
| 18 | 8524741 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | discontinued |
| 19 | 881428 |
БОЛТ (M6 x 16) BOLT (M6 x 16) |
3 | discontinued |
| 2 | 82364M |
ШТИФТ Штифт PIN Dowel |
10 | discontinued |
| 20 | 804083 |
КРЫШКА COVER |
1 | superseded |
| 21 | 804084 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 22 | 804081 |
ПРУЖИНА SPRING |
1 | |
| 23 | 804080 |
КЛАПАН Контроль давления VALVE Pressure Control |
1 | superseded |
| 24 | 804082 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 25 | 881427 |
БОЛТ (M6 x 30) BOLT (M6 x 30) |
18 | discontinued |
| 26 | 804075T1 |
КРЫШКА Наружное выхлопное отверстие COVER Outer Exhaust |
1 | superseded |
| 27 | 804076 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 28 | 804089 |
ЗАЖИМ CLIP |
1 | discontinued |
| 29 | 804088 |
РУКАВ HOSE |
1 | discontinued |
| 3 | 8587321 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 30 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 31 | 804073 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
2 | discontinued |
| 32 | 804149 |
ПЛАСТИНА Клапан PLATE Valve |
1 | discontinued |
| 33 | 8257021 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | discontinued |
| 34 | 8587331 |
ШПИЛЬКА STUD |
6 | discontinued |
| 35 | 856774 |
ШАЙБА (0.406 x 0.750 x 0.105), нержавеющая сталь WASHER (.406 x .750 x .105) Stainless Steel |
6 | superseded |
| 36 | 40140 |
ГАЙКА (M10) NUT (M10) |
6 | |
| 37 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
2 | |
| 38 | 804093 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0T178499] & Below O-RING [0T178499] & Below |
1 | |
| 39 | 804092 |
КРОНШТЕЙН [0T178499] & Below BRACKET [0T178499] & Below |
1 | discontinued |
| 4 | 41884M |
БОЛТ (M8 x 55) BOLT (M8 x 55) |
10 | superseded |
| 40 | 8527768 |
БОЛТ (M6 x 16) [0T178499] & Below BOLT (M6 x 16) [0T178499] & Below |
2 | superseded |
| 41 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") [0T178499] & Below TIE STRAP (8.00 Inches) [0T178499] & Below |
1 | |
| 42 | 804094 |
ТРУБА САПУНА [0T178499] & Below BREATHER PIPE [0T178499] & Below |
1 | discontinued |
| 43 | 804095 |
ЗАЖИМ [0T178499] & Below CLAMP [0T178499] & Below |
2 | discontinued |
| 44 | 804602 |
БОЛТ (M6 x 12) [0T178499] & Below BOLT (M6 x 12) [0T178499] & Below |
2 | discontinued |
| 45 | 804096 |
ЗАЖИМ [0T178499] & Below CLIP [0T178499] & Below |
1 | discontinued |
| 5 | 804072 |
БОЛТ (M10 x 135) BOLT (M10 x 135) |
10 | |
| 6 | 855690 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 7 | 825953 |
ПРОБКА (M14 x 12) PLUG (M14 x 12) |
1 | discontinued |
| 8 | 81990M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 9 | 804097 |
БОЛТ BOLT |
1 | discontinued |
