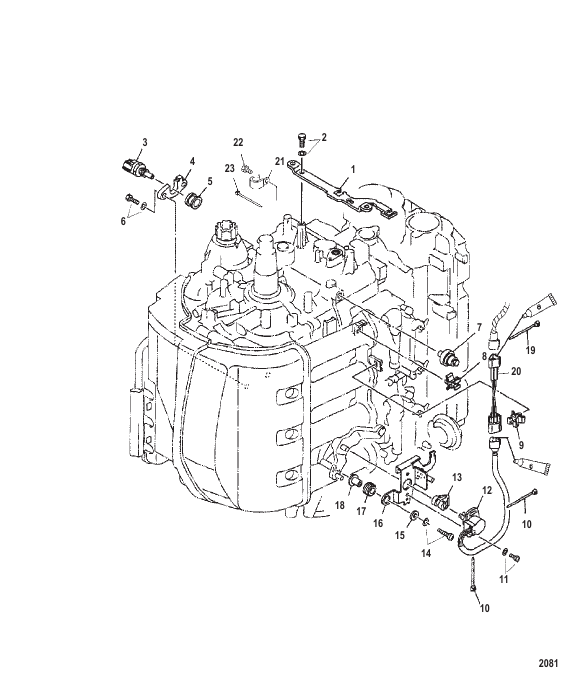

Sensors
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 804070T2 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0T178500] & Up POWERHEAD ASSEMBLY [0T178500] & Up |
1 | superseded |
| - | 883548T02 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0T178499] & Below POWERHEAD ASSEMBLY [0T178499] & Below |
1 | discontinued |
| - | 804345A02 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка GASKET SET Powerhead |
1 | discontinued |
| 1 | 804294 |
ПЛАСТИНА PLATE |
1 | superseded |
| 10 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 11 | 827160M |
ВИНТ (M5 x 10) SCREW (M5 x 10) |
2 | discontinued |
| 12 | 804298T |
ДАТЧИК Дроссельная заслонка SENSOR Throttle |
1 | discontinued |
| 13 | 804301 |
РЫЧАГ LEVER |
1 | discontinued |
| 14 | 804306 |
ВИНТ (M5 x 25) SCREW (M5 x 25) |
2 | discontinued |
| 15 | 804305 |
ШАЙБА WASHER |
2 | discontinued |
| 16 | 804302 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 17 | 804304 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 18 | 804303 |
ВТУЛКА COLLAR |
2 | discontinued |
| 19 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 2 | 8527768 |
БОЛТ (M6 x 16) BOLT (M6 x 16) |
2 | superseded |
| 20 | 859295T1 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 21 | 83577M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 22 | 84088M |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
1 | discontinued |
| 23 | 879650 |
ЗАЖИМ CLAMP |
1 | superseded |
| 3 | 804295T |
ТЕРМОДАТЧИК THERMOSENSOR |
1 | discontinued |
| 4 | 804296 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 5 | 804297 |
ПРОКЛАДКА [0T178499] & Below GASKET [0T178499] & Below |
1 | discontinued |
| 5 | 8042971 |
ПРОКЛАДКА [0T178500] & Up GASKET [0T178500] & Up |
1 | discontinued |
| 6 | 8527768 |
БОЛТ (M6 x 16) BOLT (M6 x 16) |
2 | superseded |
| 7 | 804307 |
ПЕРЕКЛЮЧАТЕЛЬ Давление масла [0T178499] & Below SWITCH Oil Pressure [0T178499] & Below |
1 | discontinued |
| 7 | 8043071 |
ПЕРЕКЛЮЧАТЕЛЬ Давление масла [0T178500] & Up SWITCH Oil Pressure [0T178500] & Up |
1 | discontinued |
| 8 | 804300 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 9 | 804300 |
ЗАЖИМ CLAMP |
1 | discontinued |
