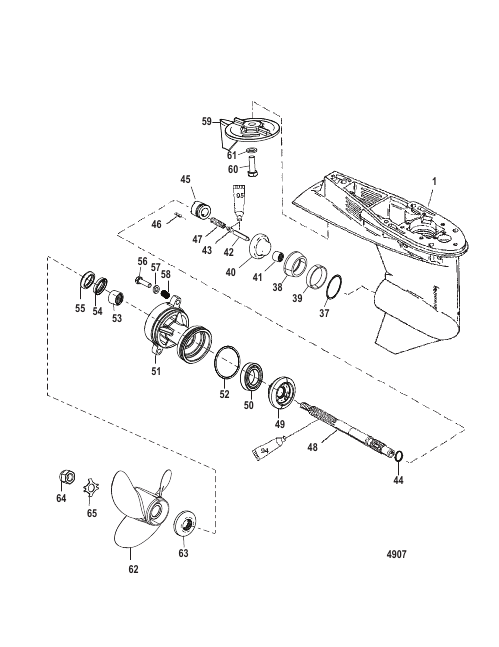

| # | Part Number | Description | Qty | Status |
|---|
| - |
9760T23 |
GEAR HOUSING ASSEMBLY Complete (Short)
|
1 |
|
| - |
9760T25 |
GEAR HOUSING ASSEMBLY Complete (Long)
|
1 |
|
| - |
9760T28 |
GEAR HOUSING ASSEMBLY Complete (LL)
|
1 |
|
| - |
812867A97 |
GASKET SET
|
1 |
|
| - |
814669A2 |
SEAL KIT Gear Housing
|
1 |
|
| 1 |
9760T42 |
GEAR HOUSING ASSEMBLY Basic (Black-Basic)
|
1 |
|
| 37 |
812769A1 |
SHIM SET
|
AR |
disc.
|
| 38 |
812767A1 |
BEARING ASSEMBLY Taper Roller
|
1 |
superseded
|
| 39 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 40 |
813693T1 |
GEAR Forward (23 Teeth)
|
1 |
|
| 41 |
21739 |
BEARING Roller
|
1 |
|
| 42 |
8129291 |
FOLLOWER Cam
|
1 |
|
| 43 |
20843 |
SLIDE
|
1 |
|
| 44 |
38114 |
SPRING
|
1 |
|
| 45 |
813697T |
CLUTCH
|
1 |
|
| 46 |
38113 |
PIN Cross
|
1 |
superseded
|
| 47 |
815418 |
SPRING
|
1 |
|
| 48 |
14493 |
PROPELLER SHAFT
|
1 |
|
| 49 |
813695T |
GEAR Reverse (23 Teeth)
|
1 |
|
| 50 |
20839T |
BEARING Ball
|
1 |
|
| 51 |
19291A3 |
CARRIER ASSEMBLY Bearing
|
1 |
superseded
|
| 52 |
815460 |
O-RING
|
1 |
|
| 53 |
21700 |
BEARING Needle
|
1 |
|
| 54 |
69188 |
SEAL Oil
|
1 |
superseded
|
| 55 |
69189 |
SEAL Oil
|
1 |
superseded
|
| 56 |
85594030 |
SCREW (M8 x 30)
|
2 |
|
| 57 |
855941 |
WASHER (.323 x .590 x .112) Stainless Steel
|
2 |
|
| 58 |
8227731 |
INSERT Threaded
|
2 |
|
| 59 |
17264T2 |
TRIM TAB Zinc
|
1 |
|
| 60 |
4000377 |
SCREW (M10 x 30)
|
1 |
|
| 61 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
1 |
superseded
|
| 62 |
816704A40 |
PROPELLER KIT (55 Beaching)
|
1 |
superseded
|
| 63 |
73345A1 |
THRUST WASHER
|
1 |
|
| 64 |
69578Q1 |
PROP NUT KIT
|
1 |
|
| 65 |
76281 |
TAB WASHER
|
1 |
superseded
|
