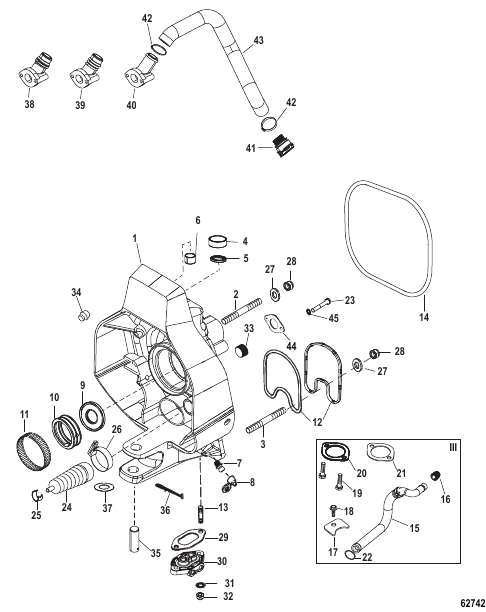

Gimbal Housing Blue Connector (2A514803 and Up)
Parts (55)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 88847A1 |
Комплект пробки Смотровое отверстие (Access Hole Plug Kit contains all necessary parts to allow removal of swivel shaft without removing Gimbal Housing) PLUG KIT Access Hole (Access Hole Plug Kit contains all necessary parts to allow removal of swivel shaft without removing Gimbal Housing) |
1 | |
| 1 | 8M0096216 |
КОРПУС КАРДАНА В СБОРЕ GIMBAL HOUSING ASSEMBLY |
1 | |
| 1 | 8M0096217 |
КОРПУС КАРДАНА В СБОРЕ (SEACORE) GIMBAL HOUSING ASSEMBLY (SEACORE) |
1 | |
| 10 | 862540A3 |
БЛОК ПОДШИПНИКА BEARING ASSEMBLY |
1 | superseded |
| 11 | 61075 |
КОЛЬЦО ДОПУСКА TOLERANCE RING |
1 | discontinued |
| 12 | 41802 |
УПЛОТНЕНИЕ Резина Without Tabs SEAL Rubber Without Tabs |
1 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal With Tabs NOT SOLD SEPARATE Seal With Tabs |
1 | |
| 13 | 56766 |
ШПИЛЬКА (0.250-20/0.250-28 x 1.380) STUD (.250-20/.250-28 x 1.380) |
2 | |
| 14 | 43713 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 15 | 8M0124395 |
КОМПЛЕКТ ШЛАНГОВОГО СОЕДИНЕНИЯ Вода HOSE ASSEMBLY KIT Water |
1 | |
| 16 | 8M0109467 |
ВТУЛКА Резина BUSHING Rubber |
1 | |
| 17 | 8M0114127 |
ЗАЖИМ CLAMP |
1 | |
| 18 | 8175051 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
1 | |
| 19 | 76630 |
ВИНТ (0.250-20 x 1.00) SCREW (.250-20 x 1.00) |
2 | superseded |
| 2 | 56296 |
ШПИЛЬКА (0.437-20 x 4.750) STUD (.437-20 x 4.750) |
4 | discontinued |
| 2 | 866562 |
ШПИЛЬКА (0.437-20 x 4.750), нержавеющая сталь (SEACORE) STUD (.437-20 x 4.750) Stainless Steel (SEACORE) |
4 | |
| 20 | 8M0155826 |
ИНСТРУМЕНТ Ремкомплект водяного шланга TOOL Water Hose Repair |
1 | |
| 21 | 8M0109475 |
ПРОКЛАДКА GASKET |
1 | |
| 22 | 86614 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.049 x 0.103) O-RING (1.049 x .103) |
1 | |
| 23 | 78038 |
ВИНТ (0.250-20 x 1.75) SCREW (.250-20 x 1.75) |
2 | |
| 23 | 73015 |
ВИНТ (0.250-20 x 1.75) SCREW (.250-20 x 1.75) |
2 | |
| 24 | 74639A2 |
СИЛЬФОНЫ В СБОРЕ Shift Cable BELLOWS ASSEMBLY Shift Cable |
1 | |
| 25 | 866507 |
ЗАЖИМ CLAMP |
1 | superseded |
| 26 | 815504320 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | superseded |
| 27 | 34567 |
ШАЙБА WASHER |
8 | |
| 27 | 35935 |
ШАЙБА (0.435 x 0.875 x 0.105), нержавеющая сталь WASHER (.435 x .875 x .105) Stainless Steel |
8 | superseded |
| 28 | 82670815 |
ГАЙКА (0.437-20) NUT (.437-20) |
8 | |
| 29 | 988231 |
ПРОКЛАДКА GASKET |
1 | |
| 3 | 818834 |
ШПИЛЬКА (0.437-20 x 4.250) STUD (.437-20 x 4.250) |
4 | discontinued |
| 3 | 866563 |
ШПИЛЬКА (0.437-20 x 4.250), нержавеющая сталь (SEACORE) STUD (.437-20 x 4.250) Stainless Steel (SEACORE) |
4 | |
| 30 | 98825A4 |
ВПУСКНОЙ КОЛЛЕКТОР MANIFOLD ASSEMBLY |
1 | superseded |
| 31 | 78968 |
СТОПОРНАЯ ШАЙБА Внутренний (0.250) LOCKWASHER Internal (.250) |
2 | |
| 32 | 8267119 |
ГАЙКА (0.250-28) NUT (.250-28) |
2 | |
| 33 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
1 | superseded |
| 34 | 861492 |
ПРОБКА Trim Switch Wires PLUG Trim Switch Wires |
1 | |
| 35 | 99353 |
ШАРНИРНЫЙ ПАЛЕЦ Нижняя часть SWIVEL PIN Lower |
1 | superseded |
| 36 | 54929 |
ШПЛИНТ COTTER PIN |
1 | |
| 37 | 32518 |
ШАЙБА WASHER |
1 | |
| 38 | 8M0111791 |
КОРПУС Впуск Quick Connect For Applications with Hose Routing Inside Exhaust Pipe HOUSING Water Inlet Quick Connect For Applications with Hose Routing Inside Exhaust Pipe |
1 | |
| 39 | 8M0120061 |
СОЕДИНИТЕЛЬ Шланг Barb For Applications with Hose Routing Inside Exhaust Pipe CONNECTOR Hose Barb For Applications with Hose Routing Inside Exhaust Pipe |
1 | |
| 4 | 983571 |
ВТУЛКА Lower BUSHING Lower |
1 | |
| 40 | 8M0114793 |
КОРПУС Впуск Bib For Applications with Hose Routing Outside Exhaust Pipe HOUSING Inlet Bib For Applications with Hose Routing Outside Exhaust Pipe |
1 | |
| 41 | 865324 |
БЫСТРОРАЗЪЕМНЫЙ Quick Connect Applications QUICK CONNECT Quick Connect Applications |
1 | |
| 42 | 8M0141781 |
ЗАЖИМ (44) CLAMP (44) |
2 | |
| 43 | 8M0109511 |
РУКАВ For Applications with Hose Routing Outside Exhaust Pipe HOSE For Applications with Hose Routing Outside Exhaust Pipe |
1 | |
| 44 | 8M0109475 |
ПРОКЛАДКА GASKET |
1 | |
| 45 | 21272 |
СТОПОРНАЯ ШАЙБА (0.250) LOCKWASHER (.250) |
2 | |
| 45 | 78968 |
СТОПОРНАЯ ШАЙБА Внутренний (0.250) LOCKWASHER Internal (.250) |
2 | |
| 5 | 416071 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 5 | 8M2005029 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 6 | 98356 |
ВТУЛКА Upper BUSHING Upper |
1 | |
| 7 | 74036 |
ФИТИНГ Смазка (Use with greased bearing) FITTING Grease (Use with greased bearing) |
1 | superseded |
| 7 | 8M2015913 |
ПРОБКА (0.250-28 x 0.320) (Use with non-greased bearing) PLUG (.250-28 x .320) (Use with non-greased bearing) |
1 | superseded |
| 8 | 77633Q |
КРЫШКА МАСЛЕНКИ LUBRICAP |
1 | |
| 9 | 88416 |
УПЛОТНЕНИЕ Масло Diesel Only SEAL Oil Diesel Only |
1 | discontinued |
