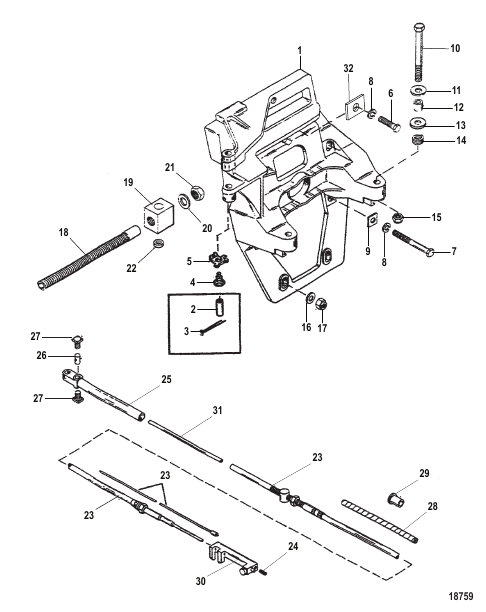

TRANSOM PLATE AND SHIFT CABLE (ALPHA)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 97934A1 |
КОМПЛЕКТ БОЛТОВ BOLT KIT |
1 | |
| - | 19543T1 |
КОМПЛЕКТ КАБЕЛЯ Переключение передач CABLE KIT Shift |
1 | superseded |
| 1 | 44117A8 |
ПЛАСТИНА В СБОРЕ Транец PLATE ASSEMBLY Transom |
1 | superseded |
| 10 | 97934 |
ВИНТ (0.500-20 x 5.370), специальный TRANSOM PLATE TO FLYWHEEL HOUSING SCREW (.500-20 x 5.370) Special TRANSOM PLATE TO FLYWHEEL HOUSING |
2 | superseded |
| 11 | 35777 |
ШАЙБА (0.5156 x 1.375 x 0.125), алюминий TRANSOM PLATE SCREW WASHER (.5156 x 1.375 x .125) Aluminum TRANSOM PLATE SCREW |
2 | |
| 12 | 99299 |
ПРОСТАВКА (0.520 x 0.870 x 0.630) TRANSOM PLATE SCREW SPACER (.520 x .870 x .630) TRANSOM PLATE SCREW |
2 | |
| 13 | 32834 |
ШАЙБА (0.9375 x 1.750 x 0.172) TRANSOM PLATE SCREW (EARLY MODELS) WASHER (.9375 x 1.750 x .172) TRANSOM PLATE SCREW (EARLY MODELS) |
2 | |
| 14 | 33734 |
СТОПОРНАЯ ШАЙБА (0.500) TRANSOM PLATE SCREW LOCKWASHER (.500) TRANSOM PLATE SCREW |
2 | |
| 15 | 99298 |
ГАЙКА (.500-20) TRANSOM PLATE SCREW NUT (.500-20) TRANSOM PLATE SCREW |
2 | superseded |
| 16 | 21900 |
ШАЙБА GIMBAL HOUSING BOLT WASHER GIMBAL HOUSING BOLT |
2 | |
| 17 | 34087 |
ГАЙКА GIMBAL HOUSING BOLT NUT GIMBAL HOUSING BOLT |
2 | |
| 18 | 96400 |
ТРУБА Рулевой механизм STEERING (NON POWER STEERING) TUBE Steering STEERING (NON POWER STEERING) |
1 | |
| 19 | 95846 |
ПОВОРОТНЫЙ БЛОК (NON POWER STEERING) SWIVEL BLOCK (NON POWER STEERING) |
1 | |
| 2 | 99938 |
ШТИФТ SWIVEL BLOCK (EARLY MODELS) PIN SWIVEL BLOCK (EARLY MODELS) |
2 | discontinued |
| 20 | 37985 |
ШАЙБА STEERING TUBE (NON POWER STEERING) WASHER STEERING TUBE (NON POWER STEERING) |
1 | discontinued |
| 21 | 37984 |
ГАЙКА (0.875-14) STEERING TUBE (NON POWER STEERING) NUT (.875-14) STEERING TUBE (NON POWER STEERING) |
1 | superseded |
| 22 | 95803 |
ВТУЛКА BLOCK (NON POWER STEERING) BUSHING BLOCK (NON POWER STEERING) |
2 | |
| 23 | 19543A8 |
КАБЕЛЬ В СБОРЕ Переключение передач CABLE ASSEMBLY Shift |
1 | superseded |
| 24 | 31700 |
ВИНТ (0.250-28 x 0.750) SHIFT CABLE SCREW (.250-28 x .750) SHIFT CABLE |
1 | superseded |
| 25 | 43433 |
НАПРАВЛЯЮЩАЯ SHIFT CABLE GUIDE SHIFT CABLE |
1 | superseded |
| 26 | 43436 |
АНКЕР SHIFT CABLE ANCHOR SHIFT CABLE |
1 | |
| 27 | 20518 |
УСТАНОВОЧНЫЙ ВИНТ (№8-32) ANCHOR SET SCREW (#8-32) ANCHOR |
2 | superseded |
| 28 | 38473 |
ОПЛЕТКА Спираль SHIFT CABLE WRAPPING Spiral SHIFT CABLE |
1 | |
| 29 | 14705 |
ВСТАВКА NYLON - SHIFT CABLE INSERT NYLON - SHIFT CABLE |
1 | |
| 3 | 36377 |
ШПЛИНТ RETAINING PIN (EARLY MODELS) COTTER PIN RETAINING PIN (EARLY MODELS) |
2 | discontinued |
| 30 | 8507521 |
ПОЛЗУН SHIFT CABLE SLIDE SHIFT CABLE |
1 | superseded |
| 31 | 38377 |
ТРУБА SHIFT CABLE (EARLY MODELS ONLY) TUBE SHIFT CABLE (EARLY MODELS ONLY) |
1 | |
| 32 | 8M0156764 |
NUT 1.30 X .90 X .125 NUT 1.30 X .90 X .125 |
2 | |
| 4 | 42253 |
БОЛТ SWIVEL BLOCK (LATER MODELS) BOLT SWIVEL BLOCK (LATER MODELS) |
2 | superseded |
| 5 | 42254 |
ШАЙБА PIVOT BOLT (LATER MODELS) WASHER PIVOT BOLT (LATER MODELS) |
2 | |
| 6 | 37269 |
ВИНТ (0.437-14 x 2.00) TRANSOM PLATE TO GIMBAL HOUSING SCREW (.437-14 x 2.00) TRANSOM PLATE TO GIMBAL HOUSING |
2 | |
| 7 | 37268 |
ВИНТ (0.437-14 x 4.250) TRANSOM PLATE TO GIMBAL HOUSING SCREW (.437-14 x 4.250) TRANSOM PLATE TO GIMBAL HOUSING |
2 | |
| 8 | 32993 |
СТОПОРНАЯ ШАЙБА (0.437) TRANSOM PLATE SCREW LOCKWASHER (.437) TRANSOM PLATE SCREW |
4 | |
| 9 | 37271 |
ШАЙБА SQUARE - TRANSOM PLATE SCREW WASHER SQUARE - TRANSOM PLATE SCREW |
2 |
